ST Optical Fiber Coupler Connector Single Mode Flange Plate

$3.00

Add to Cart:
Min:  10

ST Optical Fiber Coupler Connector Single Mode Flange Plate

Fiber optic adapter also called flange plate.Mainly used for connection between the optical connectors and fixed,so that the optical signal can be transmitted with small insertion loss.Series of products include SC,FC, LC,ST,MU,D4,DIN.We adopt precision ceramic sleeve to precisely align the core and core of the connector,ensures ultra low loss optical signal transmission.The most widely used is SC,LC,FC,ST these four.

[Features]
1. Good interchangeability and repeatability
2. Low insertion loss
3. High reliability
4. Variety

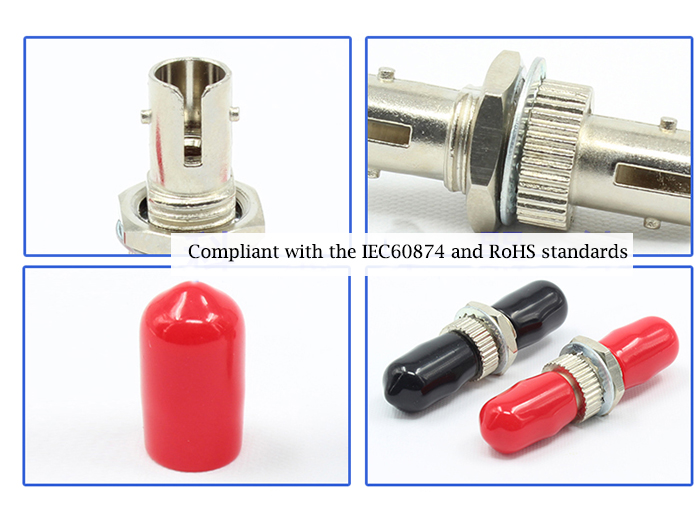

5. Compliant with the IEC60874 and RoHS standards

[Applications]
1. Installation of distribution box interface
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

Specifications

Item Parameter
Connector Type ST
Fiber Type Single mode
Adapter Color Metal
Testing Wavelength  1310nm,1550nm
Typical Insertion loss ≤0.15dB
Maximum  Insertion loss  ≤0.20dB
Repeatability ≤0.10dB
Exchangeability ≤0.20
Durability 1,000 Mating, loss≤0.20dB
Channel Number singal core
Frame Material Metal
Sleeve Material(Customized) Default ceramics(Zr02)
Operating Temperature -2 0℃~ + 70℃
Storage Temperature -40 ℃~ + 85℃

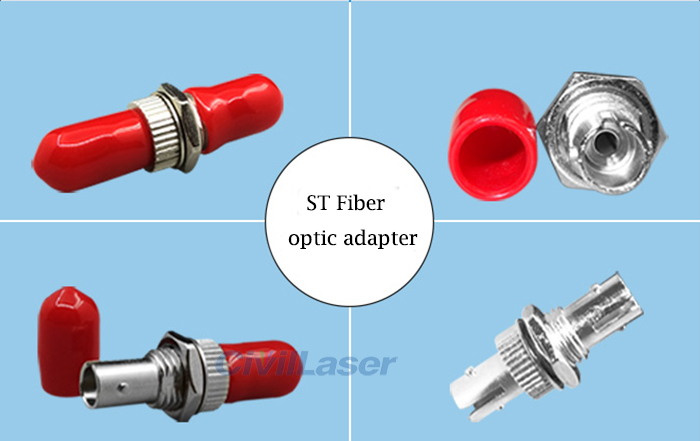

ST Optical Fiber Coupler Connector Singal Mode Flange Plate

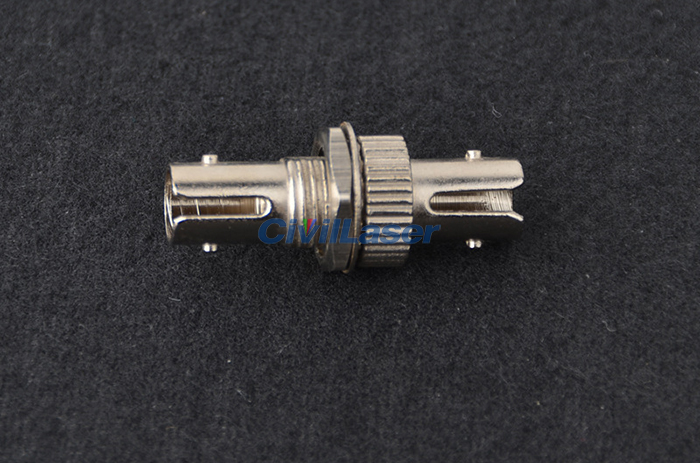

ST Optical Fiber Coupler Connector Singal Mode Flange Plate

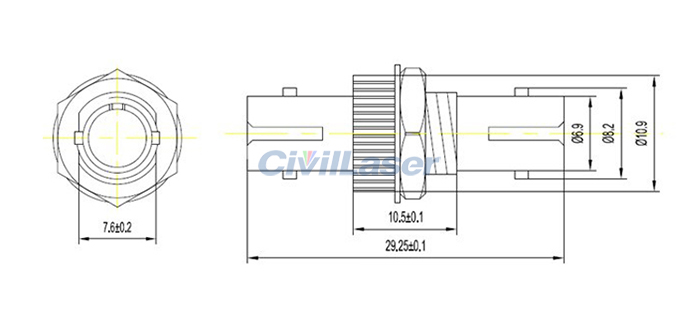

ST Optical Fiber Coupler Connector Singal Mode Flange Plate

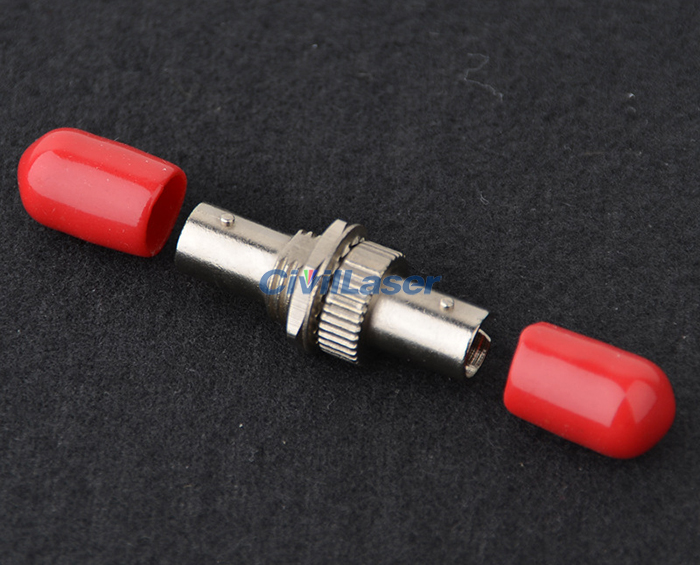

ST Optical Fiber Coupler Connector Singal Mode Flange Plate

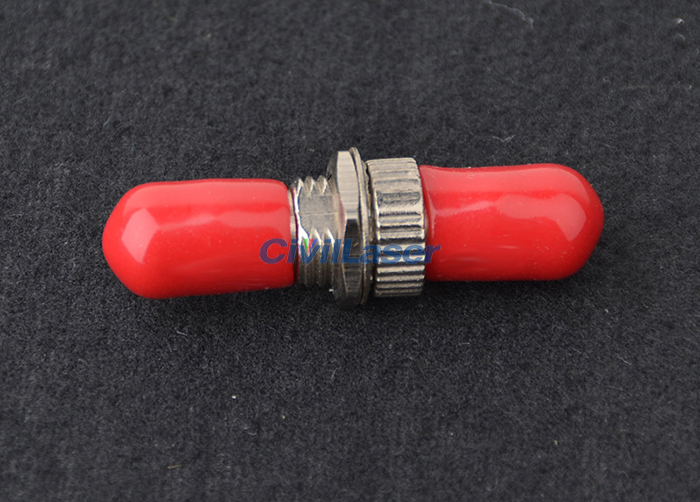

ST Optical Fiber Coupler Connector Singal Mode Flange Plate

ST Optical Fiber Coupler Connector Singal Mode Flange Plate
