The SLD broadband light source utilizes a superluminescent semiconductor diode chip. Leveraging a unique amplified spontaneous emission mechanism, it delivers a stable optical signal characterized by low coherence and a broad spectral range, while simultaneously offering high output optical power spectral density. Operating across the 1650 nm near-infrared band, the source features excellent spectral flatness and low coherence noise. It precisely meets the rigorous technical requirements of applications such as optical coherence tomography (OCT), distributed fiber-optic sensing, and performance testing of passive optical components, providing a highly reliable broadband light source solution.
The flatness is about 10dB, the fixed optical power is not adjustable, and the single-mode fiber output.
[Features]
Ultra wide spectrum
Low spectral ripple
Spectral flattening
[Applications]
Optical fiber sensing
Medical Imaging
Optical fiber device testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
|
SLD-1650-10-SM-B
|
|
|
Center Wavelength
|
nm
|
1650 (Default)
|
±15 nm tolerance
|
|
Spectral width
|
nm
|
≥80
|
Approx. 1610–1690nm@10dB
|
|
Ouput Power
|
mW
|
≥10
|
1. Fixed power/Adjustable power (Choose)
2. When PER is added, the output power will be reduced.
|
|
Spectral power spectral density
|
dBm/nm
|
≥-20
|
|
|
Power Adjustable Range
|
|
10~100%
|
Optional function
|
|
Spectral Ripple
|
dB
|
<0.5
|
|
|
Output Isolation
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
PER (Polarization Extinction Ratio)
|
dB
|
≤2
|
Adding PER results in reduced output power.
eg: 10mW SLD, after adding PER, the output power becomes about 8.5mW.
|
|
Pigtail Type
|
--
|
SMF-28 Single mode fiber
|
Ф=3mm loose tube, L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
(Current product)
|
Module Type
|
|
Control Method
|
Touch screen/RS232 serial communication
|
RS232 Serial communication
(Default not include)
|
|
Communication Interface
|
DB9 Female
(Default not include)
|
DB9 Female For M20
ZH1.5-3PIN For M15
(Only for power Tunable )
|
|
Power Supply
|
AC 100~240V
|
5V DC, <15W
|
|
Size
|
255(W)×285(D)×115(H)mm
|
M20: 125(W)×150(D)×20(H)mm
M15: 90(W)×70(D)×15(H)mm
(Choose)
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
.jpg)
.jpg)

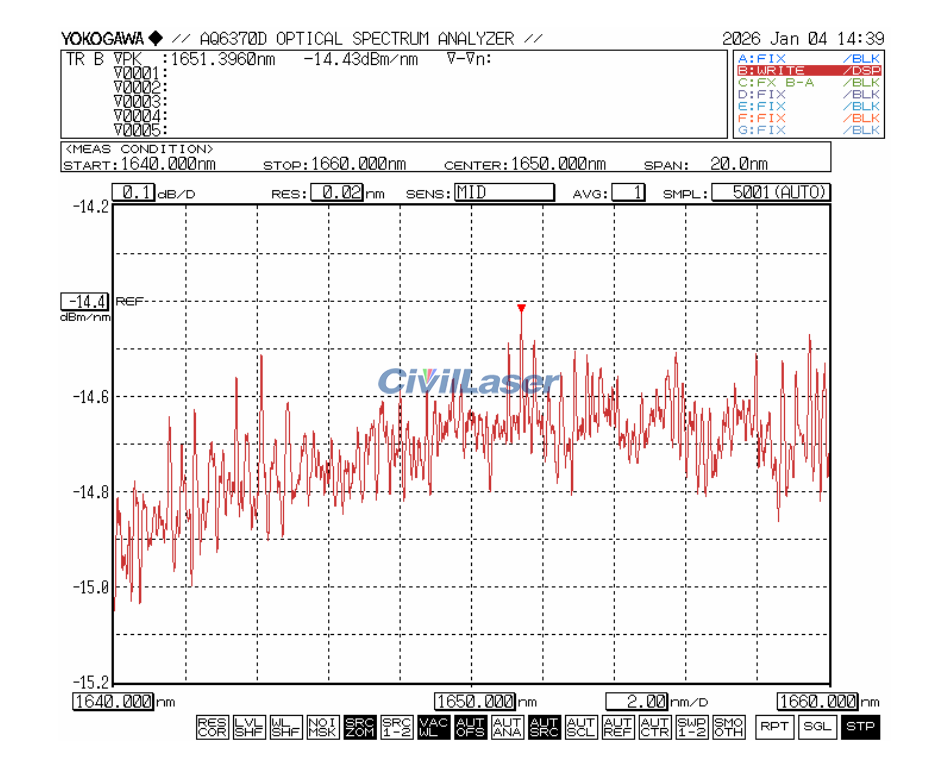

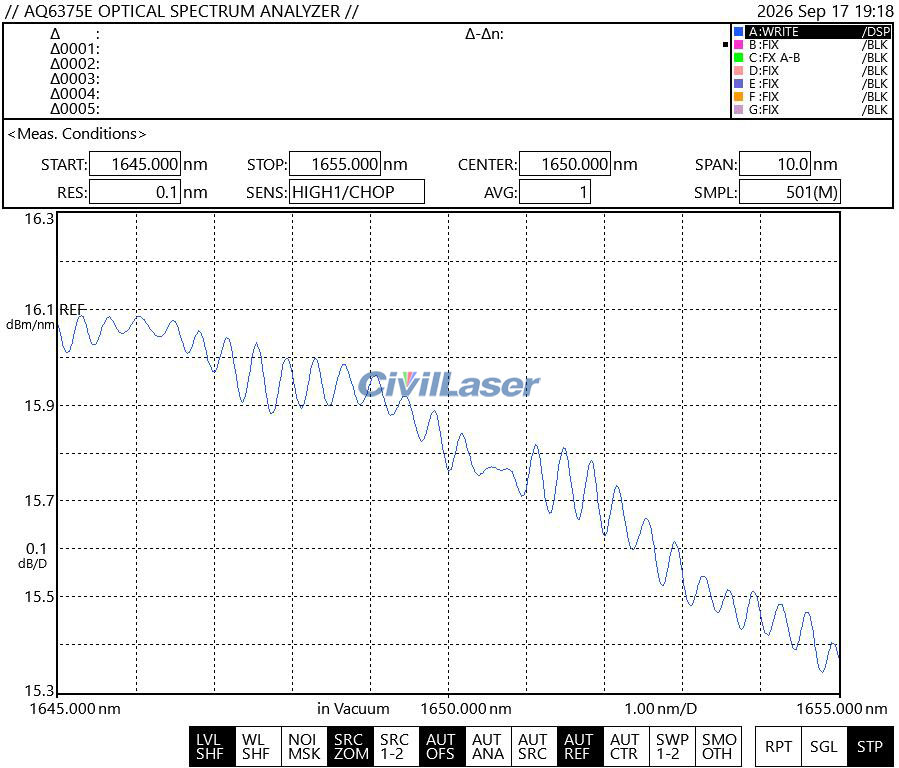

Spectral ripple:
.jpg)
.jpg)
.jpg)
