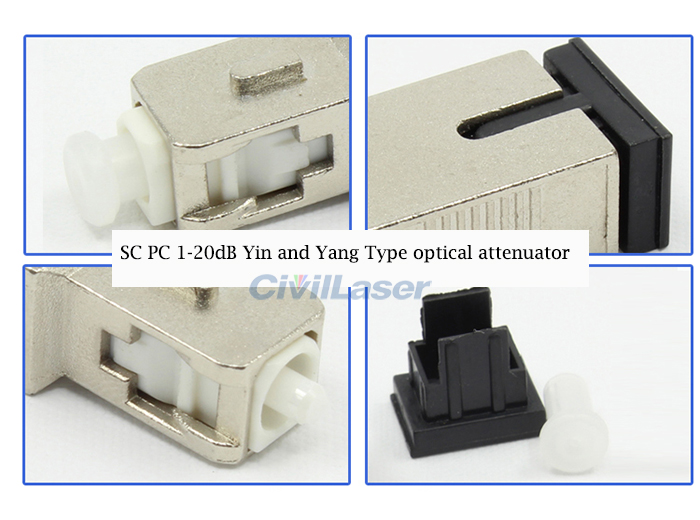

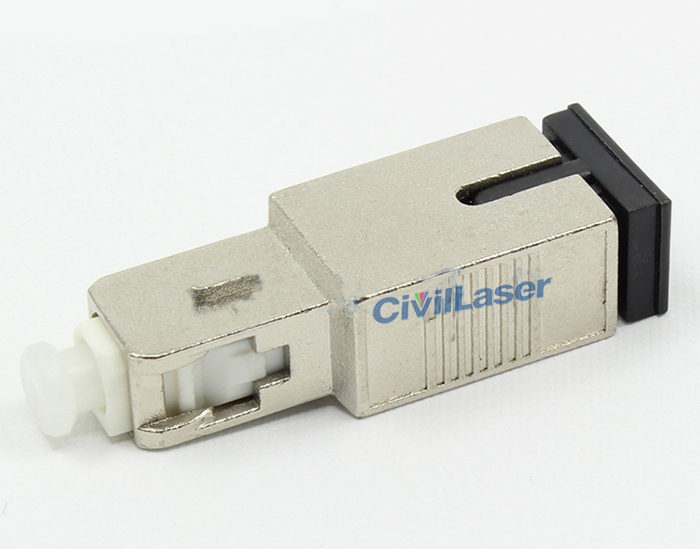

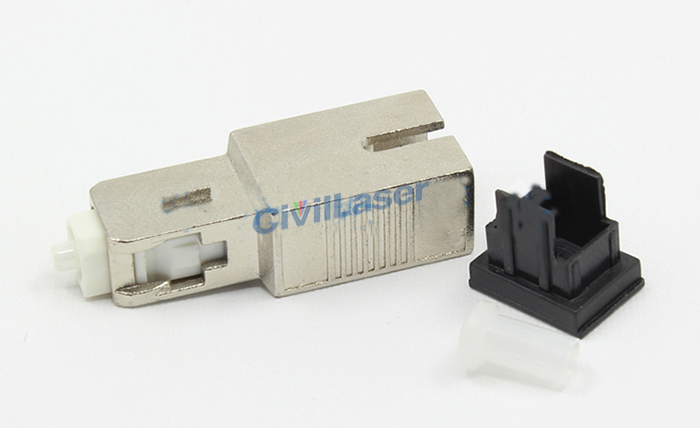

1-20dB SC PC Yin and Yang Type optical attenuator CATV, MANs, WANs Accurate Attenuation

Yin And Yang Type Fiber Optic Fixed Attenuator is one end of the connector type and the other end of the adapter type,and the attenuation value is an adjustable.This range of fixed attenuator is mainly used to reduce optical power to target value in optical links.
 It comes in different types including SC, LC, FC, ST and MU. Based on the shape of ferrule shape, the fixed optical attenuator can also be classified as PC and APC with 8 degrees type. The attenuation value is in range of 0 to 30dB, which are all applicable for optical signal with wavelength ranging from 1,250nm to 1,650nm.

[Features]
1. Good interchangeability and repeatability
2. Accurate attenuation
3. High reliability
4. Compliant with the IEC and RoHS standards
5. Conforming to Telcordia-GR-910-CORE

[Applications]
1. Testing instruments
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

Specifications

Item parameter Unit
Single Mode
Testing Wavelength 1310,1550 nm
Operating Bandwidth Range 1,250~1,650 nm
Retiurn Loss ≥60.0 dB
Attenuation Range 0~30 dB
Attenuation Tolerance 0~5,±0.5 dB
5~30dB,±10% /
Repeatability ≤0.10≥ dB
Exchangeability ≤0.20 dB
Durability 1,000 Mating, loss≤0.20 dB
Maximum Input Power ≤200 mW
Operating Temperature -2 0~ + 70
Storage Temperature -40 ~ + 85
