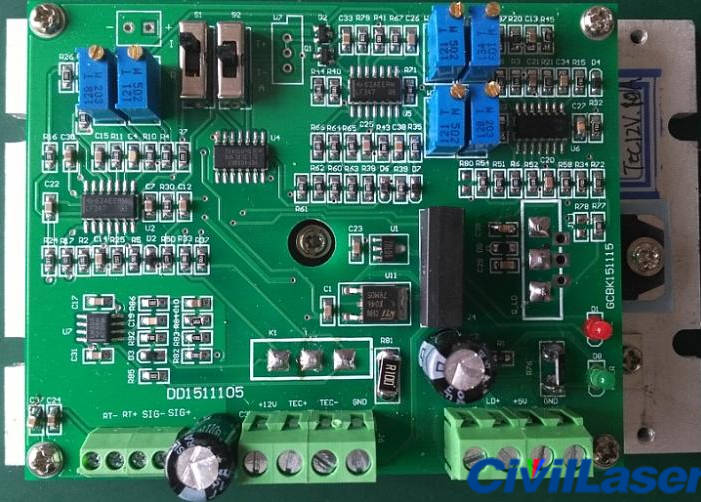

CivilLaser's Driver Board For Pigtail Laser DFB Laser 12V 5A With TTL Modulation
[Specifications]
Product Name: Drive Board
Input Voltage: 5V, 12V(+10%)
Dimensions: 80mm x 100mm
Heat sink dimensions: 80mm x 126mm x 5mm
|
Input parameters
|
|
Input voltage
|
5V，12V（+10%）
|
|
Input current
|
According to load adaptation
|
|
Output parameters
|
|
Output LD voltage
|
0-5V adaptive
|
|
Output LD current
|
0-10A Adjustable
|
|
Output TEC Voltage
|
0-12V Single-Circuit TEC Cooling
|
|
Output TEC current
|
0-5A
|
|
Output current fluctuation (>24 hours)
|
<3%
|
|
Output signal
|
Current value and thermal resistance value can be detected
|
|
Protection parameters
|
|
Overcurrent protection
|
Set according to requirements
|
|
Overshoot protection
|
Start-up overshoot voltage <1%
|
|
Soft start time
|
2s
|
|
Temperature alarm
|
35-45°C configurable
|
|
External control
|
|
Analog modulation
|
0-5V voltage signal corresponds to current modulation; overvoltage input protection.
|
|
TTL modulation
|
5V，10KHz
|
Precautions:
1. The driver board requires a heatsink and fan for cooling.
2. The driver inputs for this board are LD5V and TEC12V. Terminals J5 and J6 must be connected simultaneously; otherwise, the board will have no output.
3. Input electrodes must not be reversed; otherwise, the board will be damaged.
4. For continuous output, the modulation switch must be set to T-mode.
5. Before use, please adjust the parameters with a load before connecting the laser to avoid damaging the laser.
