650nm 520nm 100mW Laser Diode Module Dot Φ20mm Beam Parallel Laser Source

650nm 520nm 100mW Laser Diode Module Dot Φ20mm Beam Parallel Laser Source

[Features]
Small beam divergence angle, high parallelism, a perfectly circular beam spot, and uniform brightness.
High light transmittance and minimal light loss, allowing it to operate 24/7.
The light spot is clear, bright, and soft, without being glaring.
Intelligent driver board with an imported IC, supporting a wide power supply range of 4.5-5.2V.
The internal structure is filled with thermally insulating silicone and AB glue, ensuring both effective heat dissipation and shock and drop protection.
The outer casing is made of aviation-grade aluminum with an insulating coating, providing excellent heat dissipation, shock and drop protection, and anti-static properties.

[Specification]
Product Name: Laser module
Wavelength: 650nm / 520nm (Choose)
Diode Power: 100mW
Beam Pattern: Circular beam (adjustable beam size)
Beam Divergence Angle: 0.02mrad
Parallel Beam Diameter: 20mm (Customizable)
Operating Voltage: DC 4.5~5.2V (Customizable)
Operating Current: ≤500mA

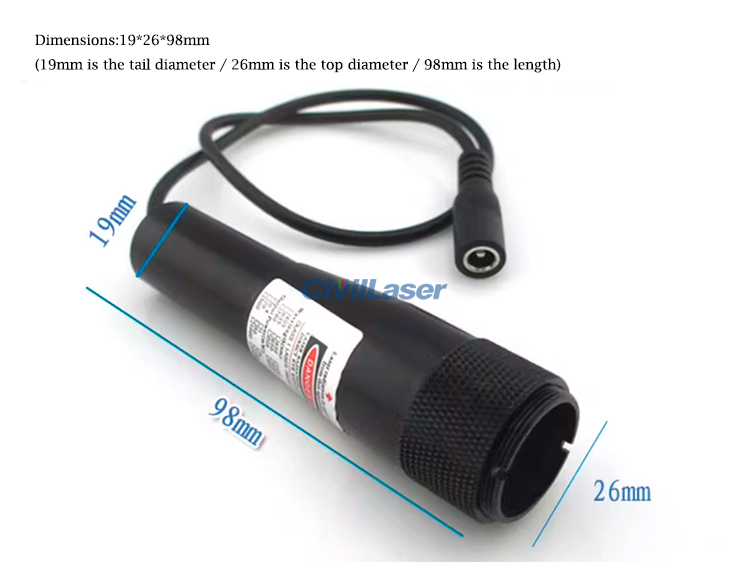

Dimensions: 19*26*98mm

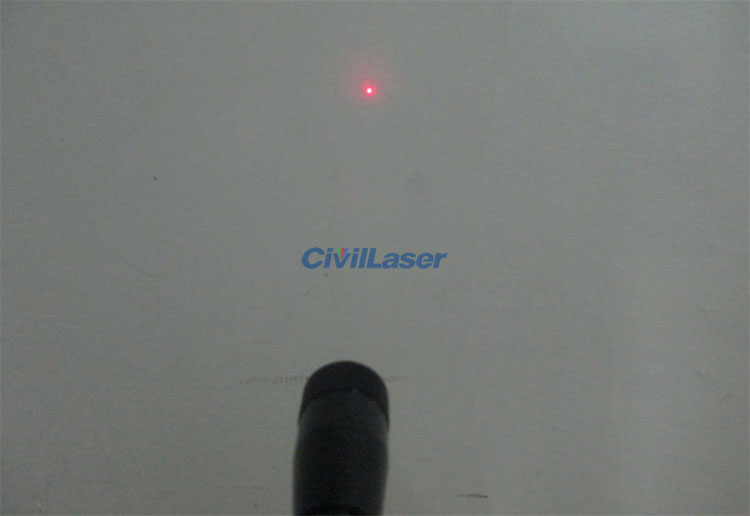

Adjustable minimum spot size (excluding peripheral aperture and stray light):
1-20 meters: 2mm
20-50 meters: 3mm
50-80 meters: 4mm
80-100 meters: 5mm

[Package Include]
1 x Laser module
1 x 5V Power supply
1 x DC 4.5-8V power supply cable with dimmer
1 x Universal bracket
