1100~2400nm 1000mW Super Broadband SM Fiber Light Source SC-LS-NIR-I-1000-SM-B3
Super Broadband light sources are cutting-edge optical innovations that can output near-infrared light covering wavelengths from 1.1 to 2.4 μm, via single-mode fiber or polarization-maintaining fiber. Compared to traditional broadband light sources, this product boasts an extremely wide spectral range, a flat spectrum, and high optical power. When paired with filters, it can generate wavelength-tunable lasers, making it suitable for a wide range of applications, including microscopic material analysis, OCT tomography, and industrial inspection.
[Features]
Ultra-wide spectrum
High flatness
High power
[Applications]
Spectral Analysis
Optical Detection
OCT
[Specification]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
SC-LS-NIR-I-1000-SM-B3
|
|
|

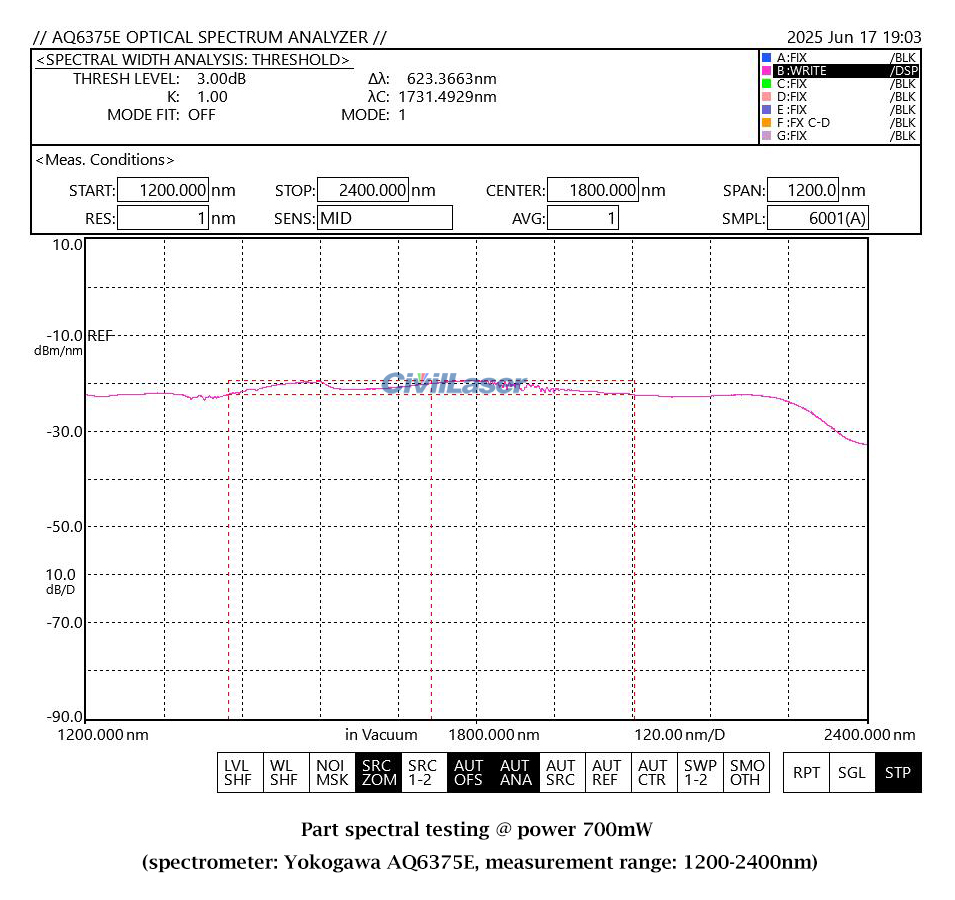

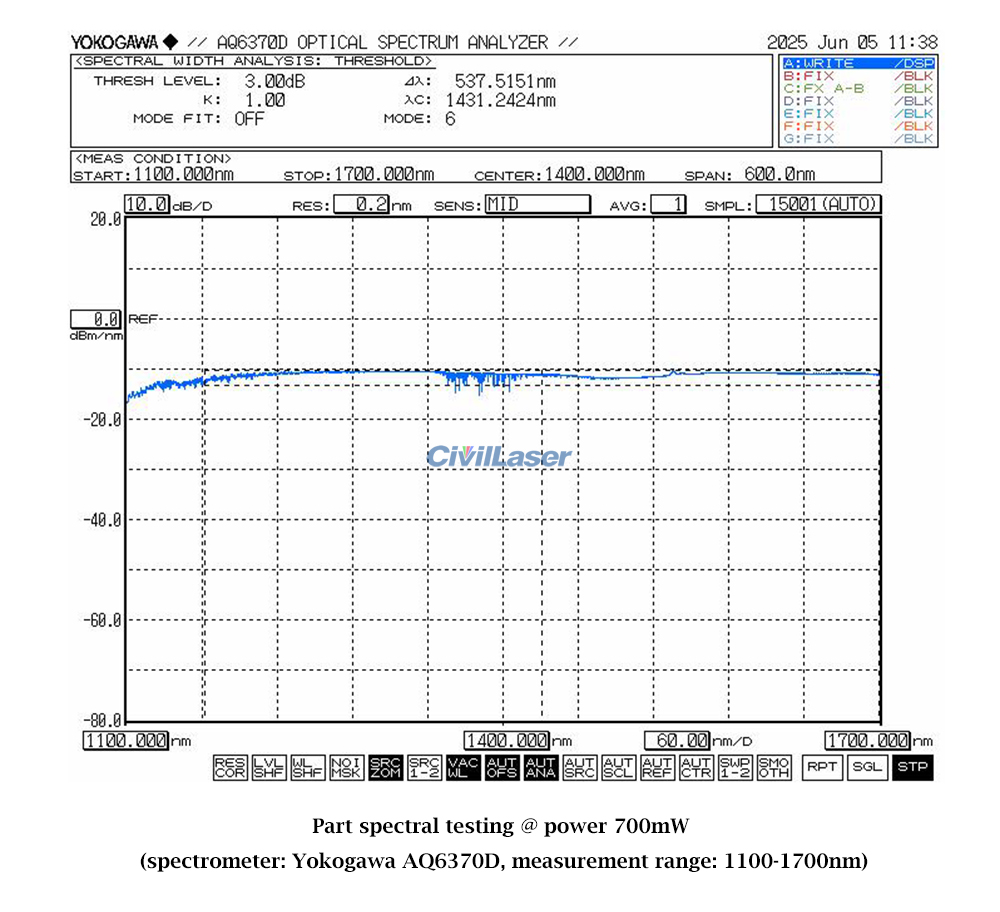

Wavelength Range
|
nm
|
1100~2400
|
@20dB range
|
|

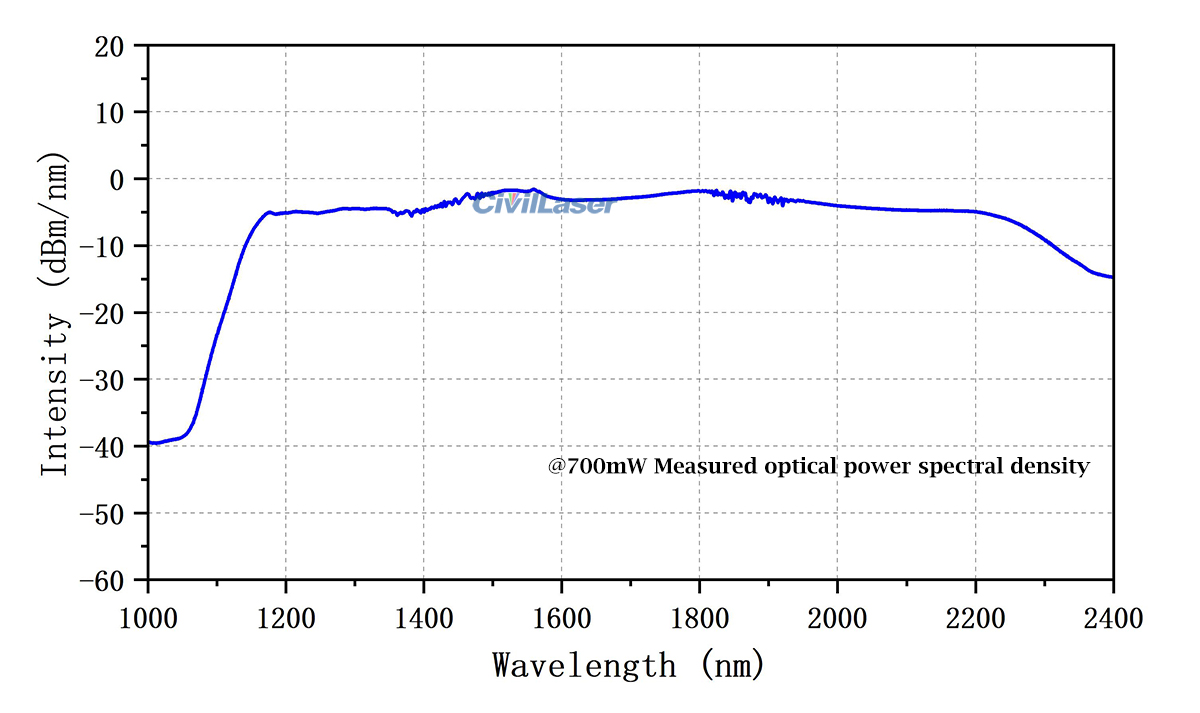

Power Spectral Density
|
dBm/nm
|
≥-10
|
|
|
Optical Power
|
mW
|
1000
|
|
|

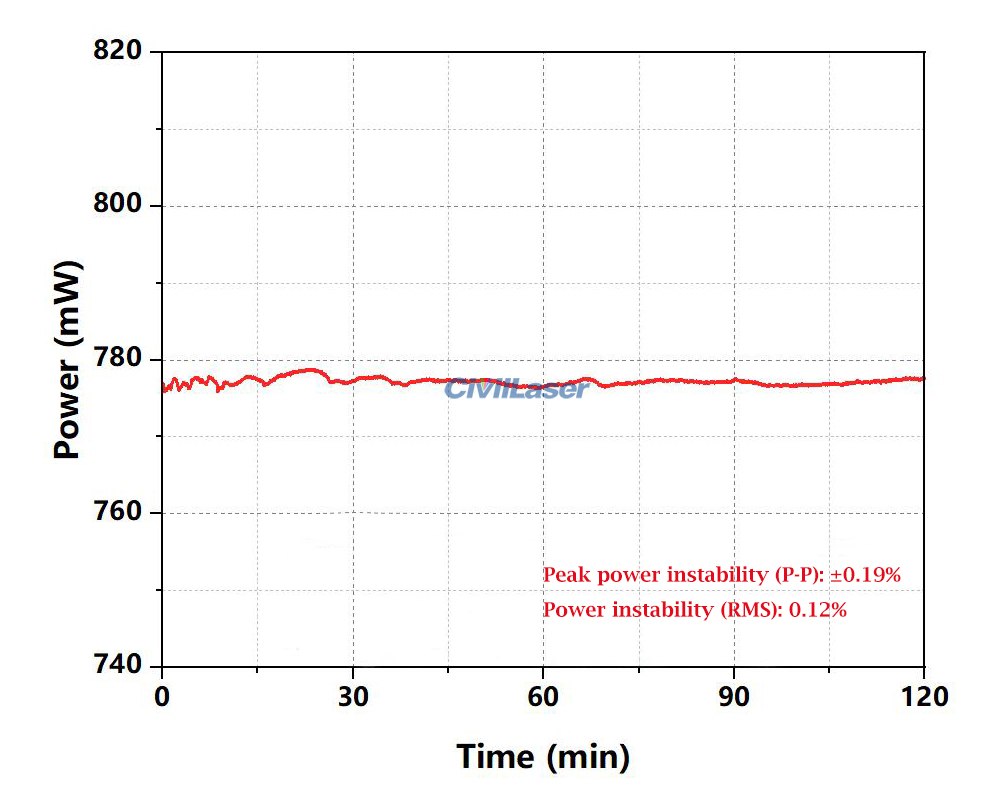

Short-term Power Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent ≤±0.5%
|
|
Long-term Power Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent ≤±1.2%
|
|
Polarization State
|
--
|
Random polarization
|
|
|
Pigtail Type
|
--
|
SMF-28 single mode fiber
|
|
|
Connector Type
|
--
|
FC/APC
|
Can be connected to collimator output
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
|
Control Method
|
Touch screen/RS232 serial communication
|
|
Communication Interface
|
DB9 Female (Default does not include)
|
|
Power Supply
|
AC 100~240V
|
|
Size
|
376(W)×340(D)×112(H)
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
