638nm 120mW Powell Uniform Red Line Laser Module 0.08mm Minimum Linewidth 16x90mm

638nm 120mW Powell Uniform Red Line Laser Module 0.08mm Minimum Linewidth 16x90mm

[Features]

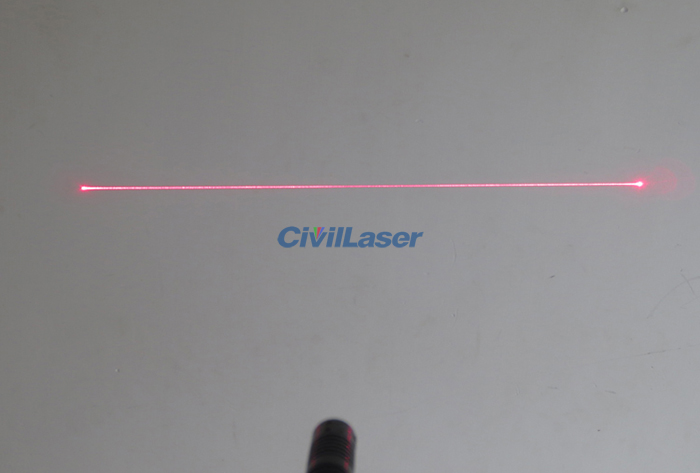

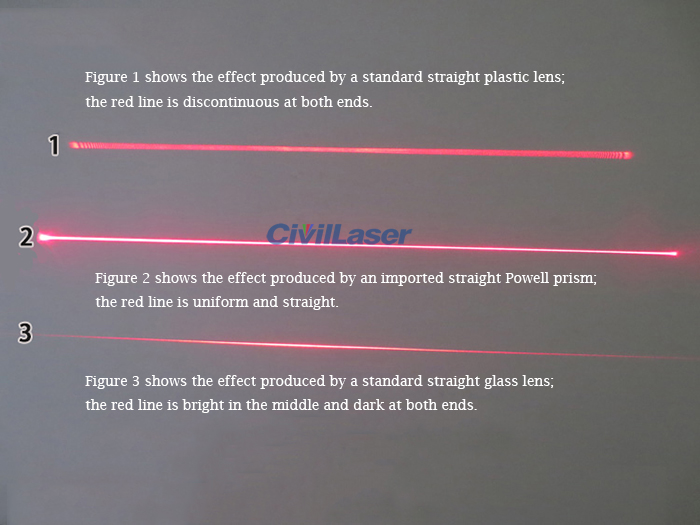

Utilizing an original imported Powell prism, it produces a uniform, straight line with no bright spots at either end.
A 1-12V adjustable power supply is included, allowing for easy brightness adjustment.

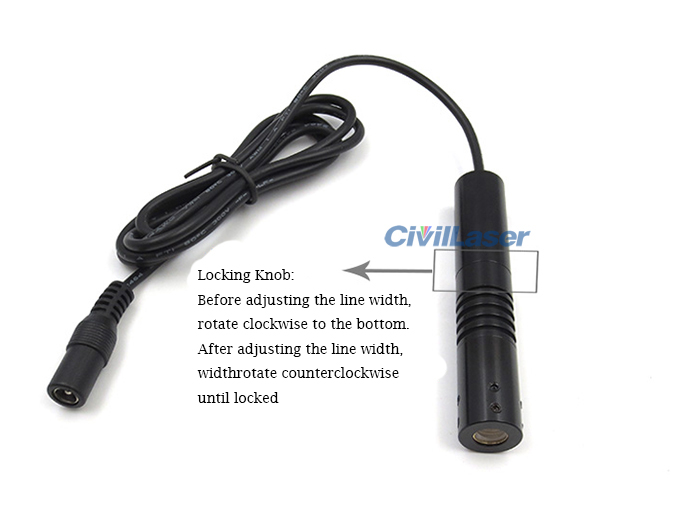

The wire width is adjustable externally for simple and convenient use; the wire position remains unchanged during adjustment, ensuring precision and reliability. After adjusting the wire width, the locking knob can be used to lock the lamp head, providing shock and drop protection.
Wire width is adjustable from 0.08 mm to several centimeters to meet various usage requirements.
Powell prism angles are available from 5° to 120°.
Exceptionally high stability, suitable for 24/7 operation.
Equipped with an imported IC intelligent driver board, it supports a wide range of power supplies; other voltages can be customized.
Internal filling with thermal silicone and AB glue ensures excellent heat dissipation and shock and drop protection.
The outer shell is made of aviation-grade aluminum with an insulating varnish, providing excellent heat dissipation, shock and drop protection, and anti-static properties.
High-temperature resistant and corrosion-resistant wires are suitable for all-weather, all-encompassing use.

[Specification]
Product Name: Laser module
Wavelength: 638nm
Output Power: 120mW
Laser Shape: Line
Operating Voltage: DC 9-25V(Customizable)
Operating Current: ≤800mA
Line Width: Adjustable

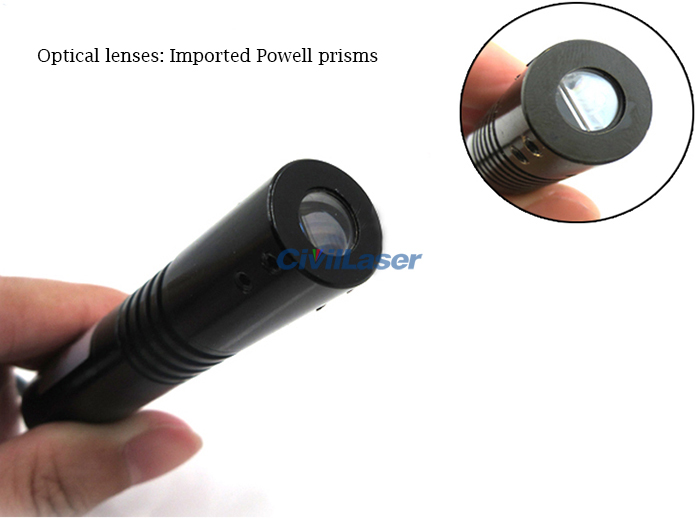

Optical Lens: Original imported Powell prism
Lens Angle: 5°~120° (Customizable)
Operating Temperature: -20℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Size: φ16*90mm (Customizable)

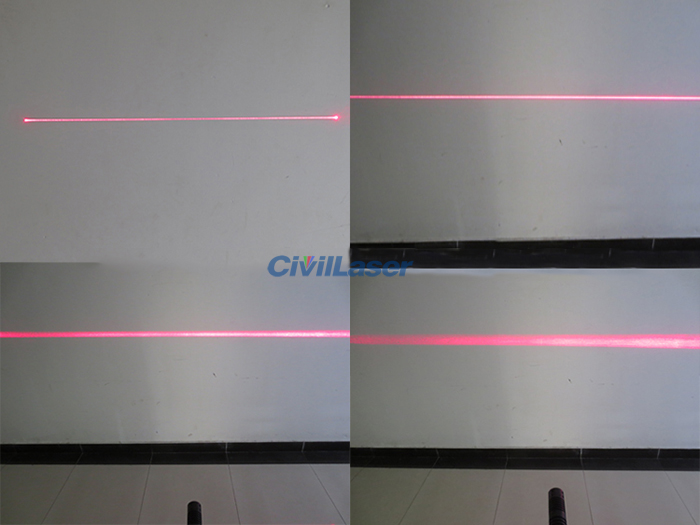

Line Length:
Indoor working environment: Up to 16 meters.
In semi-outdoor working environment (non-direct sunlight): Up to 8 meters.
Installation Height: 0~10 meters.

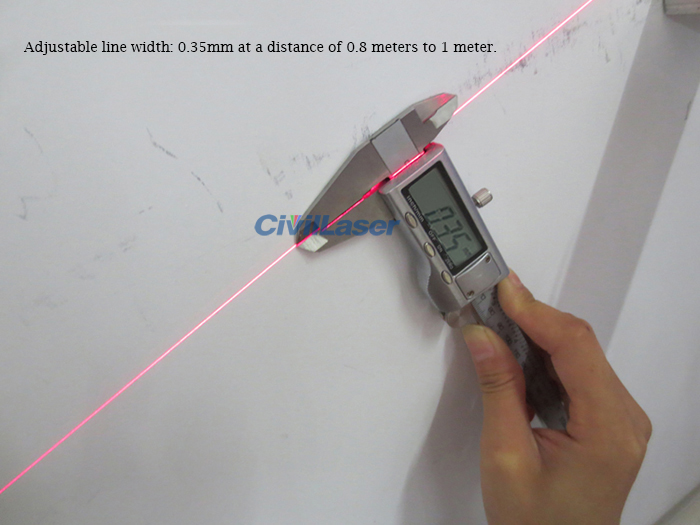

Adjustable Line Width:
0.1m-0.3m: 0.08mm
0.3m-0.5m: 0.15mm
0.5m-0.8m: 0.25mm
0.8m-1m: 0.35mm
1m-1.5m: 0.45mm
1.5m-2m: 0.55mm
2m-2.5m: 0.65mm
2.5m-3m: 0.75mm
3m-4m: 0.9mm
4m-5m: 1.2mm

[Package Include]
1 x Laser module
1 x Power supply
1 x Module holder
