635nm 5mW /660nm 100mW /525nm 10mW 90° L-shaped Red/Green Laser Module 27*120mm

635nm 5mW /660nm 100mW /525nm 10mW 90° L-shaped Red/Green Laser Module 27*120mm

[Features]

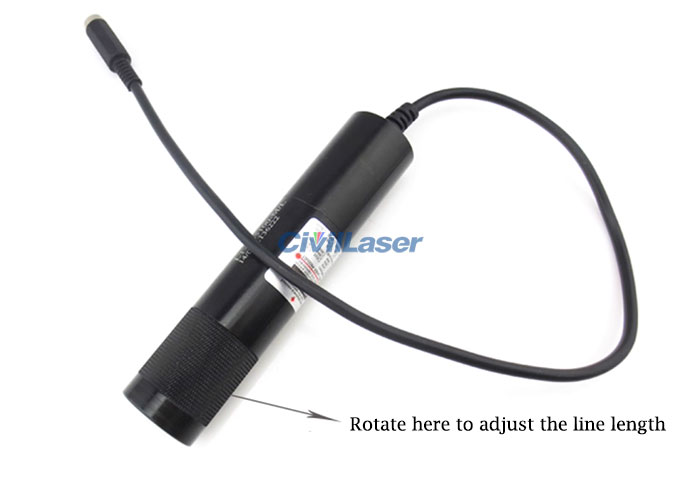

Externally adjustable structure, line length is adjustable.
The 635nm/660nm/525nm wavelength laser produces pure red and green light, providing a clear, bright, and soft light without glare.

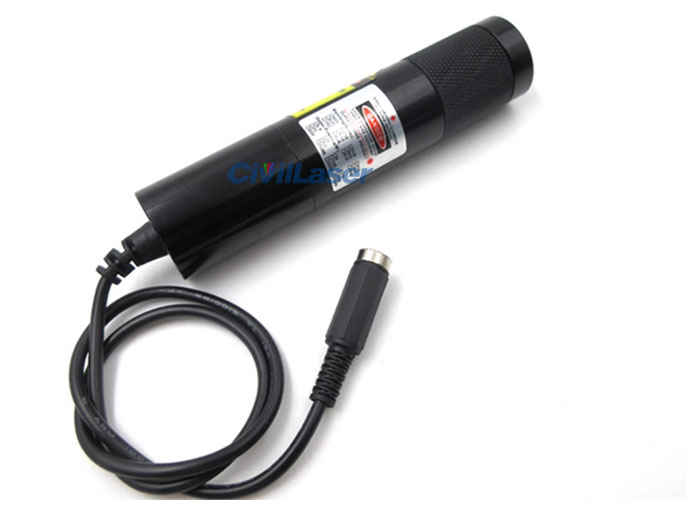

The housing is constructed of aviation-grade aluminum coated with insulating paint, providing excellent heat dissipation, shock resistance, and static resistance.
Using imported laser diodes and high-quality Taiwanese lenses, it can be turned on 24 hours a day.
The intelligent driver board with imported IC supports a wide power supply range of 2.8-3.2V (other voltages available upon request).
The high-temperature and corrosion-resistant DC plug cable is suitable for all-weather and all-environment use.

[Applications]

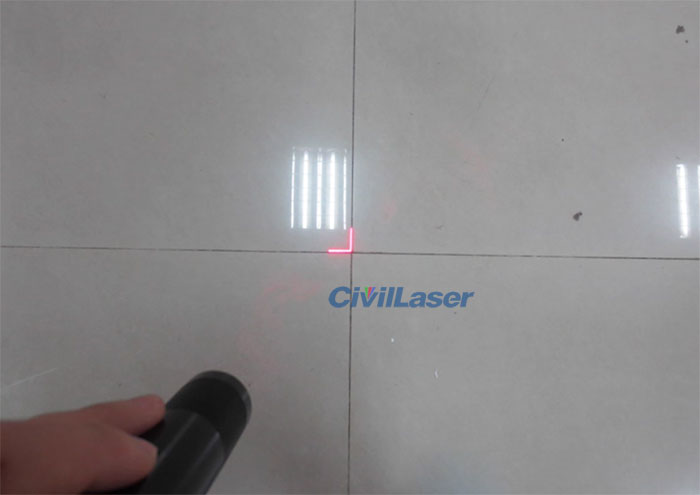

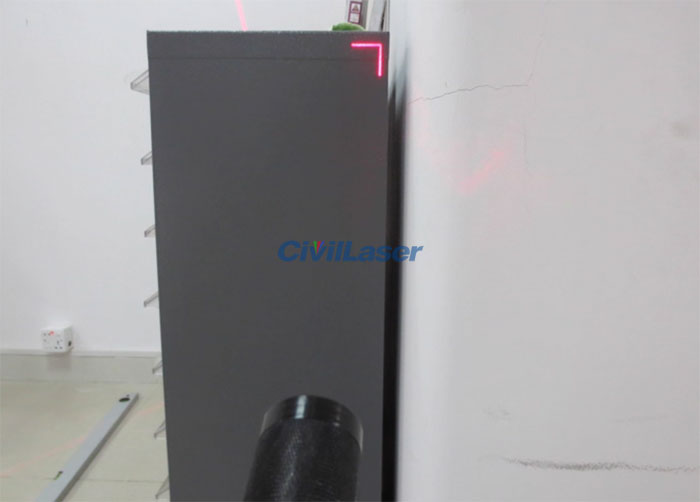

It plays the role of fixing lines on mechanical equipment such as toe-lasting machines, nailing machines, automatic heel-installing machines, heel-forming machines, upper-forming machines, and midsole-forming machines.

[Specification]
Product Name: Laser module
Wavelength: 635nm 5mW /660nm 100mW /525nm 10mW (Choose)

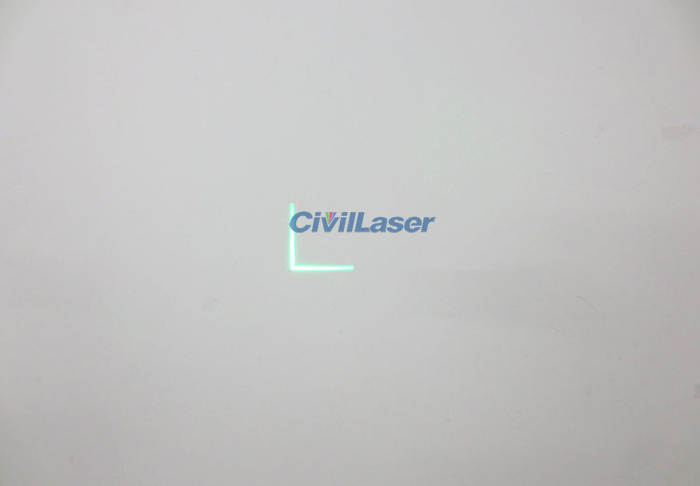

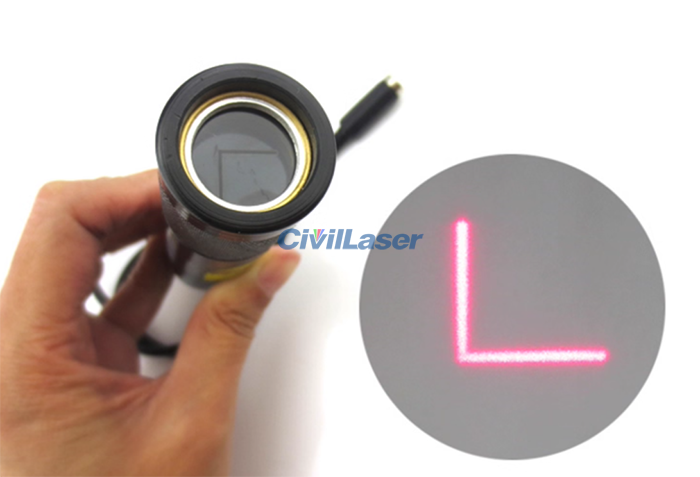

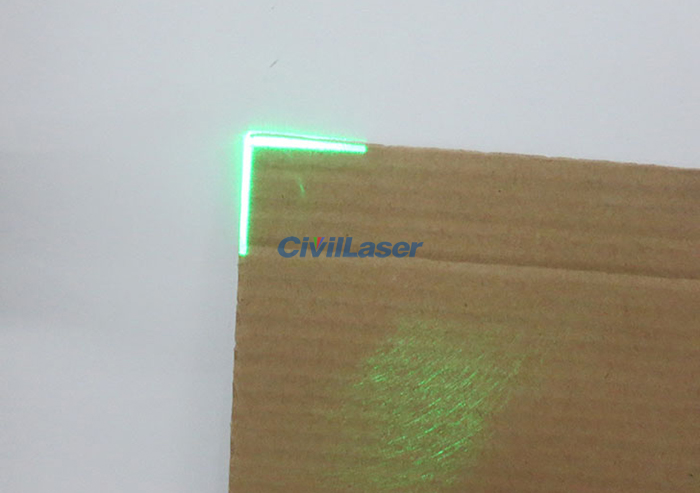

Laser Shape: L-shape
Operating Voltage: DC 2.8~3.2V (Customizable)
Operating Current: <400mA

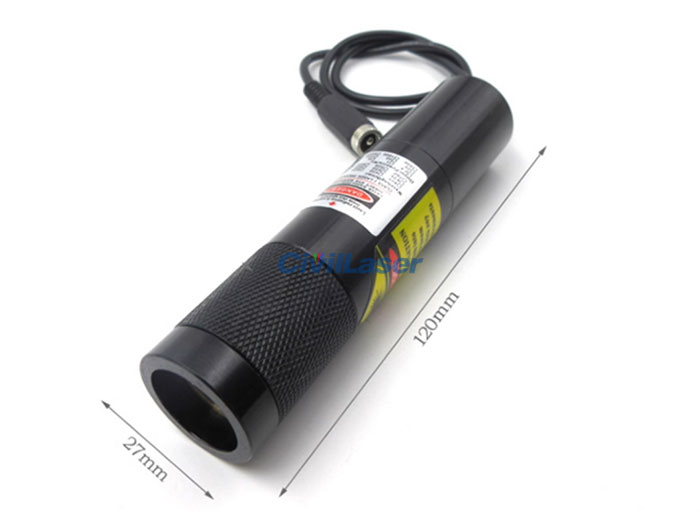

Dimensions: 27*120mm
Installation Height: 0-5 meters

At 10 cm: L-shaped short side length: 14 mm
At 10 cm: L-shaped long side length: 22 mm

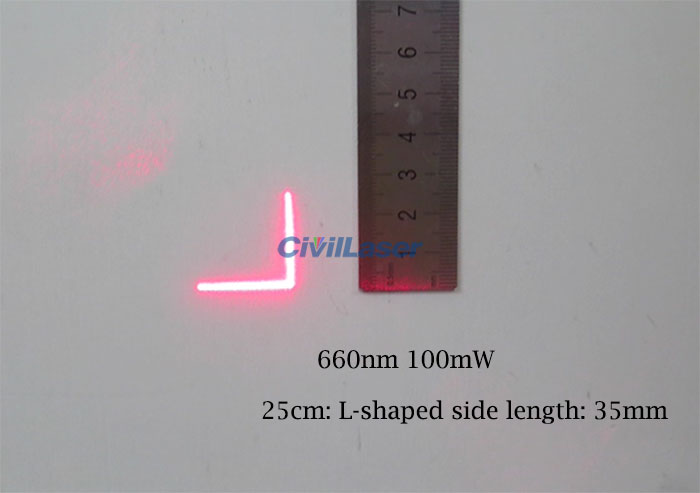

At 25 cm: L-shaped short side length: 20 mm
At 25 cm: L-shaped long side length: 35 mm
At 50 cm: L-shaped short side length: 30 mm
At 50 cm: L-shaped long side length: 58 mm
At 100 cm: L-shaped short side length: 48 mm
At 100 cm: L-shaped long side length: 100 mm

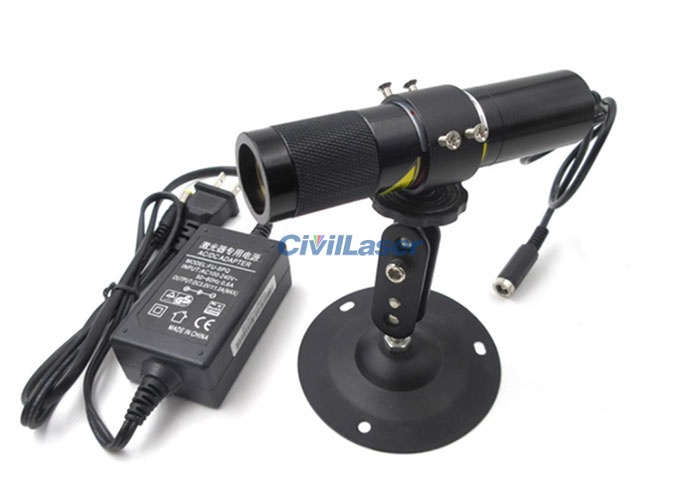

[Package Include]
1 x Laser module
1 x 3V Power supply
1 x Bracket
