8 CWDM Filter Plate Coarse Wavelength Division Multiplexer Multi Channel

$277.00

Add to Cart:


8 CWDM Filter Plate Coarse Wavelength Division Multiplexer Multi Channel


[Features]
1. Wide passband
2. Low insertion loss
3. High channel isolation
4. High stability and reliability
5. Epoxy-free optical path

[Applications]
1. Optical fiber communication systems
2. Optical devices
3. Optical amplifiers
4. Fiber lasers
5. Wavelength division multiplexing systems
6. System monitors


Specifications

Parameter Specifications Unit
Output Port Wavelength Customized: 1,270~1,610 nm
Transmission Channel Wavelength Customized: 1,270~1,610 nm
Reflection Channel Wavelength Customized: 1,270~1,610 nm
Insertion Loss  Transmission Channel  <0.60 dB
 Reflection channel <0.60 dB
Insertion Loss Thermal Stability  Transmission Channel  ≤0.30 dB
 Reflection channel ≤0.30 dB
Isolation  Non adjacent channel ≥40 dB
 Adjacent channel ≥30 dB
Return Loss >50 dB
Temperature Sensitivity <0.005 dB/ ℃
Polarization Dependent Loss <0.10 dB
Polarization Mode Dispersion <0.10 Ps
Directionality ≥50 dB
Power Handling 300 mW
Working Temperature -20~+70 °C
Storage Temperature -40~+85 °C
Fiber Type SMF-28e
Output Fiber Type 250μm/900μm/2.0mm/3.0mm
Package Dimensions 100*80*10(ABS black box) mm

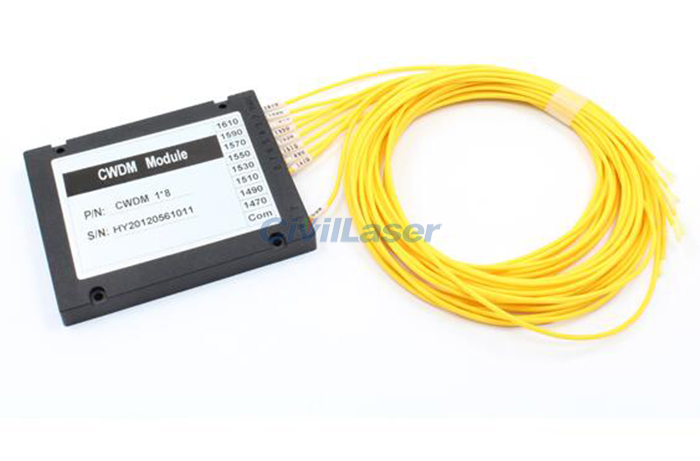

8 CWDM Filter Plate Coarse Wavelength Division Multiplexer Multi Channel

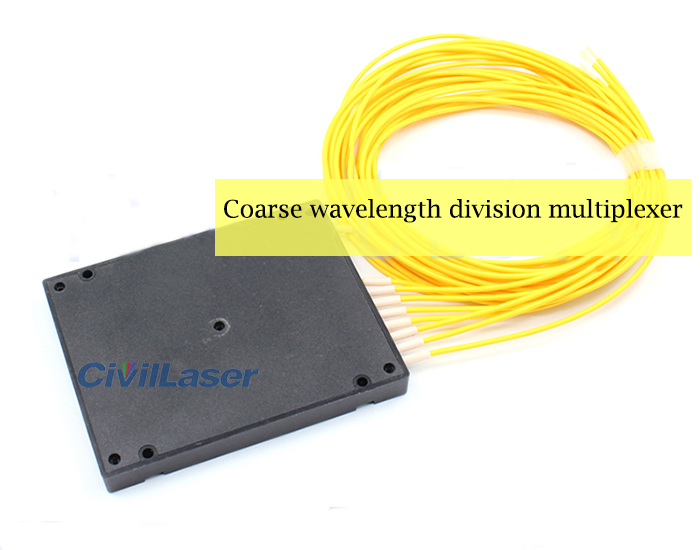

8 CWDM Filter Plate Coarse Wavelength Division Multiplexer Multi Channel

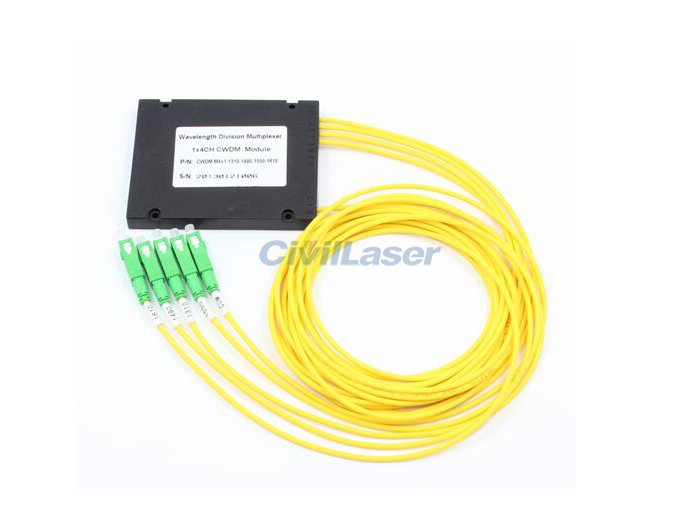

8 CWDM Filter Plate Coarse Wavelength Division Multiplexer Multi Channel
