Four Channel Fiber Wavelength Division Multiplexer 4CWDM

$139.00

Add to Cart:


 Four Channel Fiber Wavelength Division Multiplexer 4CWDM


[Features]
1. Wide passband
2. Low insertion loss
3. High channel isolation
4. High stability and reliability
5. Epoxy-free optical path

[Applications]
1. Optical fiber communication systems
2. Optical devices
3. Optical amplifiers
4. Fiber lasers
5. Wavelength division multiplexing systems
6. System monitors


Specifications of Coarse Wavelength Division Multiplexers

Parameter Specifications Unit
Output Port Wavelength Customized: 1,270~1,610 nm
Transmission Channel Wavelength Customized: 1,270~1,610 nm
Reflection Channel Wavelength Customized: 1,270~1,610 nm
Insertion Loss  Transmission Channel  <0.60 dB
 Reflection channel <0.60 dB
Insertion Loss Thermal Stability  Transmission Channel  ≤0.30 dB
 Reflection channel ≤0.30 dB
Isolation  Non adjacent channel ≥40 dB
 Adjacent channel ≥30 dB
Return Loss >50 dB
Temperature Sensitivity <0.005 dB/ ℃
Polarization Dependent Loss <0.10 dB
Polarization Mode Dispersion <0.10 Ps/Km
Directionality ≥50 dB
Power Handling 300 mW
Working Temperature -20~+70 °C
Storage Temperature -40~+85 °C
Fiber Type SMF-28e
Output Fiber Type 250μm/900μm/2.0mm/3.0mm
Package Dimensions 100*80*10 mm





 Four Channel Fiber Wavelength Division Multiplexer 4CWDM

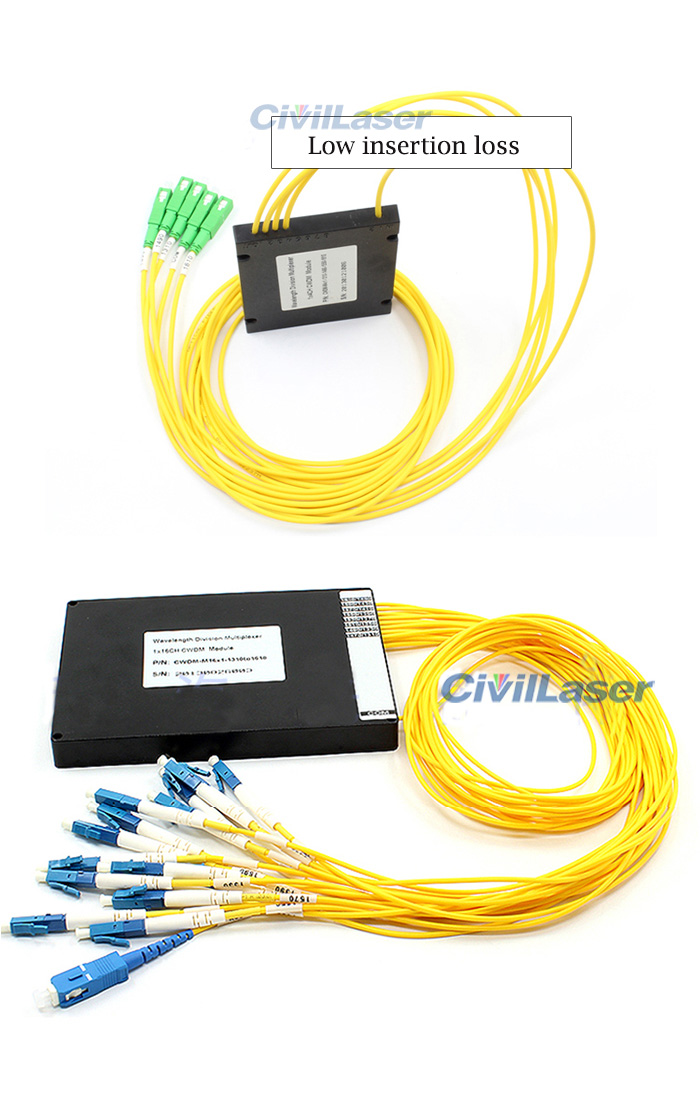

 Four Channel Fiber Wavelength Division Multiplexer 4CWDM

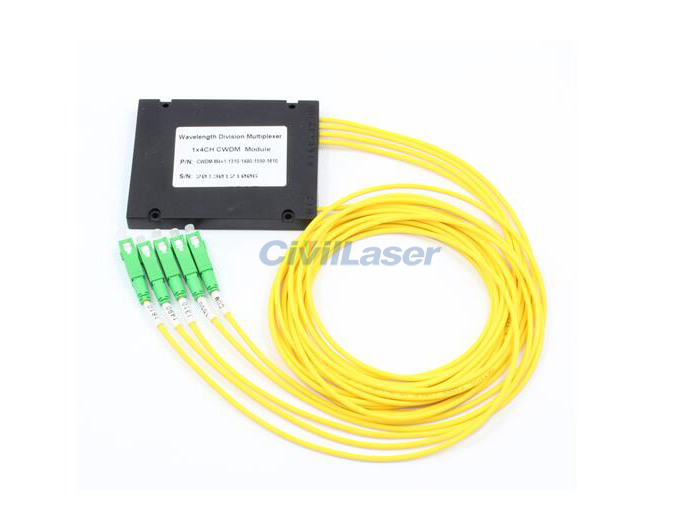

 Four Channel Fiber Wavelength Division Multiplexer 4CWDM
