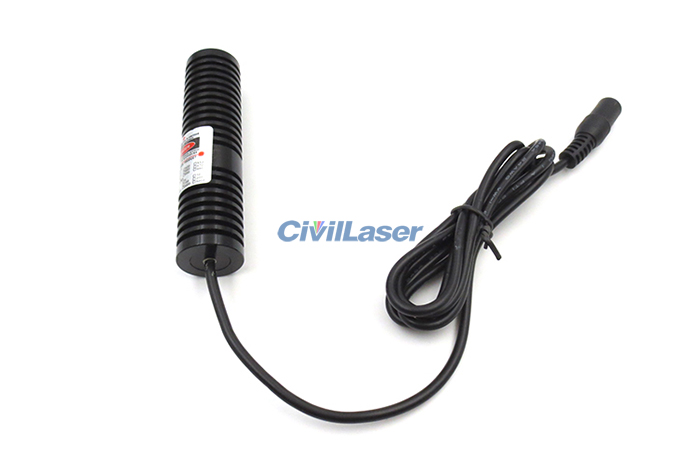

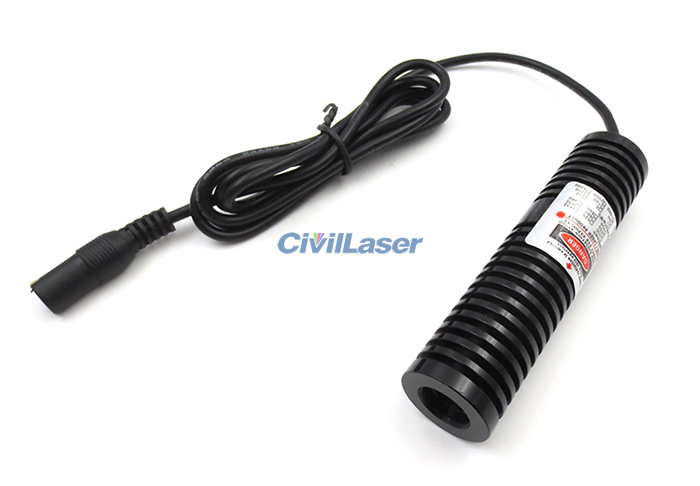

660nm/520nm/450nm Red/Green/Blue 10mm Beam Diameter Perfect Circle Laser Module φ22*90mm

660nm/520nm/450nm Red/Green/Blue 10mm Beam Diameter Perfect Circle Laser Module φ22*90mm

[Features]
The beam features a narrow divergence angle, high parallelism, a full-circular spot, and uniform brightness.
The original LED core and optically coated glass lens assembly provide high light transmission efficiency and minimal light energy loss, allowing 24/7 operation.
The beam spot is clear, bright, and soft, without glare.
The intelligent driver board with imported ICs provides wide-range power supply.
The interior is filled with heat-dissipating silicone and AB adhesive for optimal heat dissipation and shock and drop resistance.
The housing is aviation-grade aluminum coated with insulating paint for optimal heat dissipation, shock and drop resistance, and anti-static properties.
The high-temperature and corrosion-resistant DC plug cable is suitable for all-weather and all-encompassing use.

[Specification]
Product Name: Laser Module
Wavelength: 660nm / 520nm / 450nm (Choose)
Laser Color: Red / Green / Blue (Choose)
Laser Shape: Perfect circular spot
Parallel Beam Diameter: 10mm (Customizable)
Operating Voltage: DC 9-25V (Customizable)
Operating Current: ≤1000mA
Beam Divergence: 0.02mrad

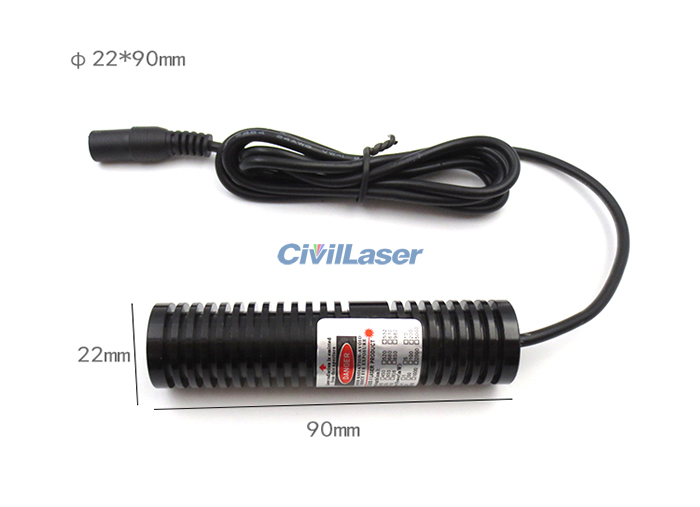

Dimensions: φ22*90mm (Customizable)
Parallel Beam Diameter: 10mm (0.5/0.8/1/2...40mm Customizable)
Optical Lens: Optically coated glass lens assembly

Optional spot diameters at different distances：
(Not counting peripheral aperture and stray light)
1-20 meters: 2mm
20-50 meters: 3mm
50-80 meters: 4mm
80-100 meters: 5mm

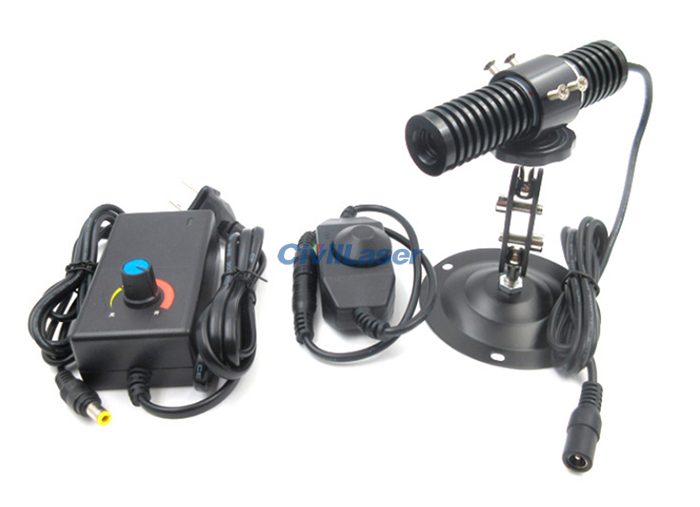

[Package Include]
1 x Laser module
1 x Power supply
1 x Module bracket/holder
1 x Dimmer
