Extended C+L band 50mW ASE Broadband Light Source Module Type ASE-CL-ET-50-T-SM-M20
This light source outputs wavelengths from 1524 to 1611 nm in the C+L extended band, covering a spectral range exceeding 88 nm with better than 3 dB flatness. Outputting through SMF-28 single-mode fiber, it achieves a maximum output power exceeding 350 mW. It is ideally suited for applications such as fiber optic sensing and fiber optic device testing. The fiber-optic ASE broadband light source is an incoherent light source derived from spontaneous emission generated by a semiconductor laser pumped from erbium-doped silica fiber. Spectral flattening technology is also employed to achieve broadband and flat spectral output.
[Features]
Ultra-wide spectrum
Spectrally flatness
Adjustable power
High stability
[Applications]
Optical fiber sensing
Medical Imaging
Optical fiber device testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
ASE-CL-ET-50-T-SM-M20
|
T: Tunable power
|
|

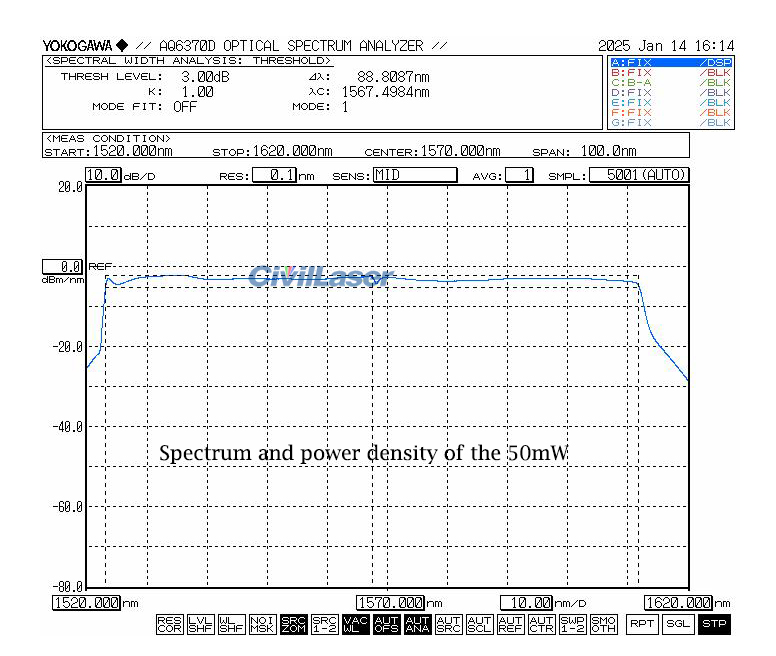

Spectral Range (3dB Range)
|
nm
|
1524~1611
|
±0.5nm tolerance
|
|
Spectral Width (3dB Range)
|
nm
|
≥88
|
±0.5nm tolerance
|
|
Ouput Power
|
mW
|
50
|
|
|
Spectral Power Density
|
dBm/nm
|
≥-2.4
|
|
|
Power Adjustable Range
|
--
|
10%~100%
|
|
|
Spectral Flatness
|
dB
|
≤3
|
|
|
Output Isolation
|
dB
|
>35
|
|
|

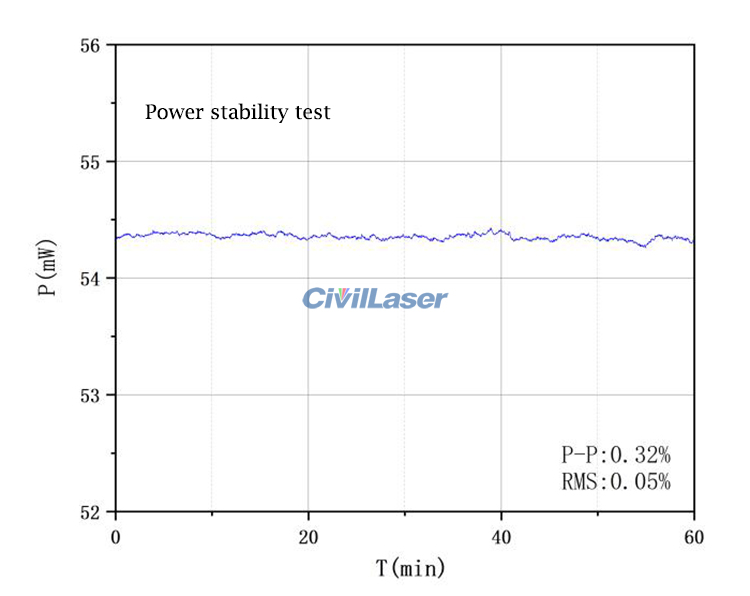

Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization Extinction Ratio
|
dB
|
≤0.2
|
|
|
Pigtail Type
|
--
|
SMF-28 Single mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Module Type
|
|
Control Method
|
RS232 serial communication
|
|
Communication Interface
|
DB9 Female
|
|
Power Supply
|
DC 5V, 15W
|
|
Size
|
125(W)×150(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
