1560nm Ultra-Fast Laser Femtosecond Pulse PM Fiber Laser Source Benchtop FSPL-1560-90-100-80-PM-B2
The 1560nm ultrafast laser integrates the latest femtosecond laser technology, utilizing high-performance erbium-doped fiber as the working medium and combining it with high-precision dispersion compensation technology to achieve stable output of femtosecond pulsed lasers in the 1560nm band. It features narrow pulse width, high peak pulse power, full self-starting, and a long, maintenance-free life. It has broad applications in optical frequency combs, supercontinuum spectroscopy, and terahertz (THz) applications.
Accept customization of pulse width, power, repetition frequency and other parameters.
[Features]
Pulse width <90 fs
1560 nm band
Self-starting and maintenance-free
Full protection and high stability
[Application]
Optical frequency combs
Supercontinuum
Terahertz waves
Ultrafast lasers
[Specifications]
| Parameter |
Unit |
Default Value |
Remarks |
| Model |
|
FSPL-1560-90-100-80-PM-B2 |
|
| Wavelength |
nm |
1560 ±30 |
|

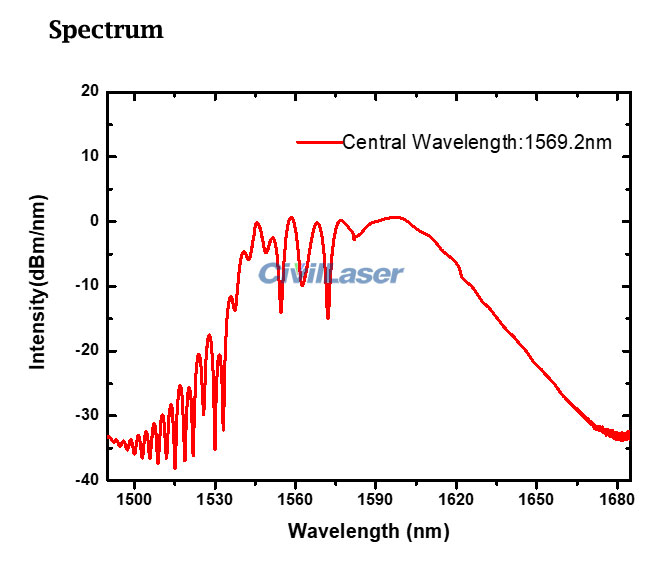

| Spectral Width |
nm |
≥60 |
whole width |

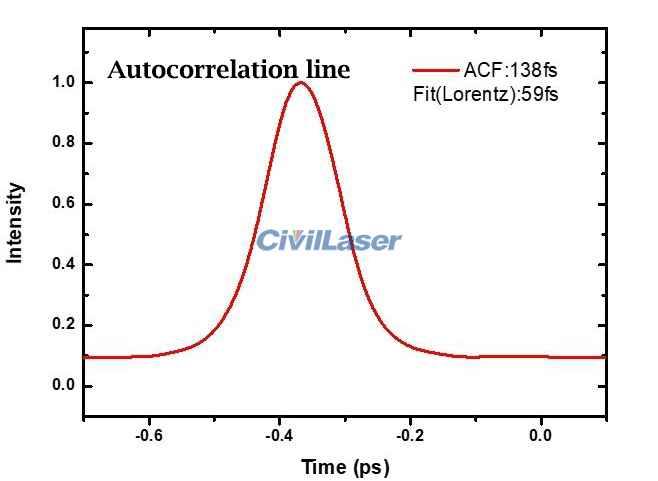

| Pulse Width |
fs |
<90（typ. 60fs） |
50/100/200 / 500fs customizable |
| Average Power |
mW |
≥100 |
1~120mW customizable |
| Power Instability |
|
< ±1% |
@6 hours |
| Repeat Frequency |
MHz |
80~100 ±1 |
|
| Repetition Frequency Instability |
Hz |
<100 |
@1hour |
| Single Pulse Energy |
nJ |
≥1 |
|
| Laser polarization state |
|
Linear polarization |
|
| Output Coupling Fiber Type |
|
PM1550 polarization-maintaining fiber |
|
| Fiber Interface |
|
FC/APC |
Slow axis alignment |
| Fiber Length |
m |
1 |
|
| Preheat Time |
min |
< 0.5 |
|
Electrical and environmental parameters：
| Parameter |
Desktop Type |
| Control Mode |
Touch screen/RS232 serial communication |
| Synchronous Electrical Signal Interface |
SMA |
| Power Supply |
AC 100~240V |
| Size |
255(W)x322(D)x115(H)mm |
| Operating Temperature |
5 ~ 35°C |
| Operating Humidity |
0~70% |
