1560nm Femtosecond Ultra-fast Pulse PM Fiber Laser Source Benchtop FSPL-SD-1560-500-5-20-PM-B2
This femtosecond pulse laser module adopts the latest fully polarization-maintaining fiber NALM passive mode-locked femtosecond laser technology, and uses high-performance Er-doped fiber as the laser medium to achieve stable output of femtosecond pulse laser in the 1560nm band. It has optical properties such as narrow pulse, high pulse peak power, wide and smooth spectrum. In addition, it also has the product features of completely self-starting, long life and maintenance-free, and usable in high and low temperature environments. It is an excellent entry-level femtosecond pulse Laser products can be used in quantum optics, optical frequency combs, supercontinuum, terahertz and other scientific research fields.
[Features]
Pulse width 500fs
Self-starting
Long life
Maintenance-free
Full protection and high stability
[Applications]
Optical frequency combs
Supercontinuum
Terahertz waves
Ultrafast lasers
[Specification]
| Parameter |
Unit |
Value |
Remarks |
| Model |
|
FSPL-SD-1560-500-5-20-PM-B2 |
|
| Center Wavelength |
nm |
1560±10 |
|

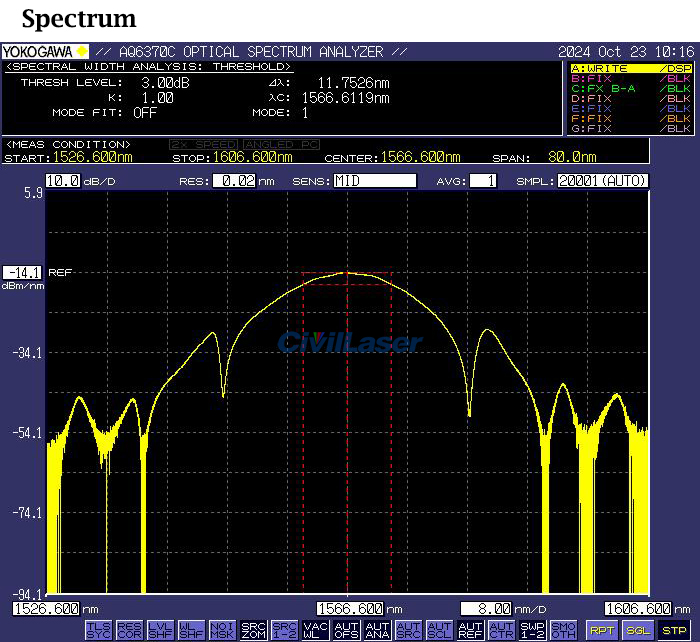

| Spectral Width |
nm |
1~10 |
3dB width |

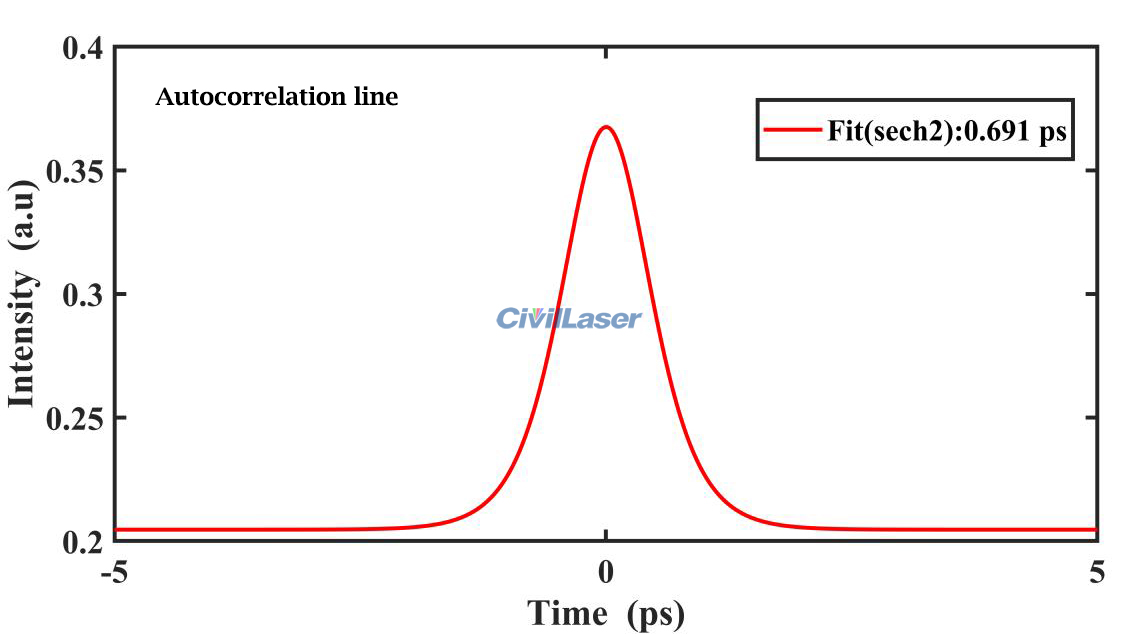

| Pulse Width |
fs |
≤500 |
Customizable |
| Average Power |
mW |
≥5 |
|

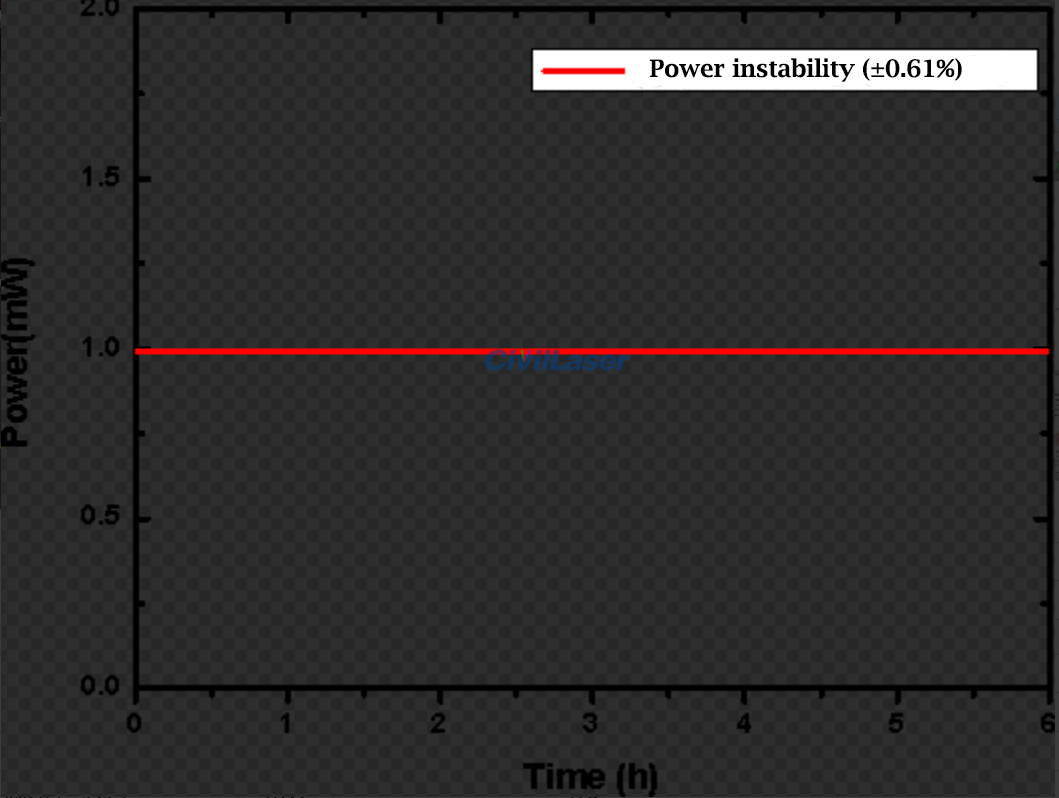

| Power Instability |
|
< ±1% |
@6 hours |
| Repeat Frequency |
MHz |
20±1 |
Customizable |
| Repeat Frequency Instability |
Hz |
< 100 |
@1 hour |
| Single Pulse Energy |
nJ |
≥0.1 |
|
| Laser polarization state |
|
Linear polarization |
|
| Fiber Type |
|
PM1550 fiber |
|
| Fiber Interface |
|
FC/APC |
Slow axis alignment |
| Preheat Time |
min |
< 0.5 |
|
| Electrical and Environmental Parameters |
Desktop Type |
| Control Mode |
Touch screen/RS232 serial communication |
| Synchronous Electrical Signal Interface |
SMA |
| Power Supply |
AC 100~240V |
| Size |
255(W)x322(D)x115(H)mm |
| Operating Temperature |
-10 ~ +60°C |
| Operating Humidity |
0~70% |
