1064nm 10kW Peak Power High Power Nanosecond Pulse Fiber Laser Benchtop HP-NSFL-A-1064-50-10-10-SM-FA-B2
High-power nanosecond pulse fiber laser uses high-power gain fiber module, and cooperates with special drive and temperature control circuit to output high peak power and high energy pulse laser, with stable laser wavelength and power. It can be used for laser ranging radar, fiber optic sensing system, etc.
Lead time: 8~10 weeks
[Features]
Full fiber structure
Pulse width, repetition frequency, and power can be adjusted
Pulse energy 100μJ
[Applications]
Lidar
Laser Distance Measurement
Nonlinear Optics
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
|
HP-NSFL-A-1064-50-10-10-SM-FA-B2
|
|
|

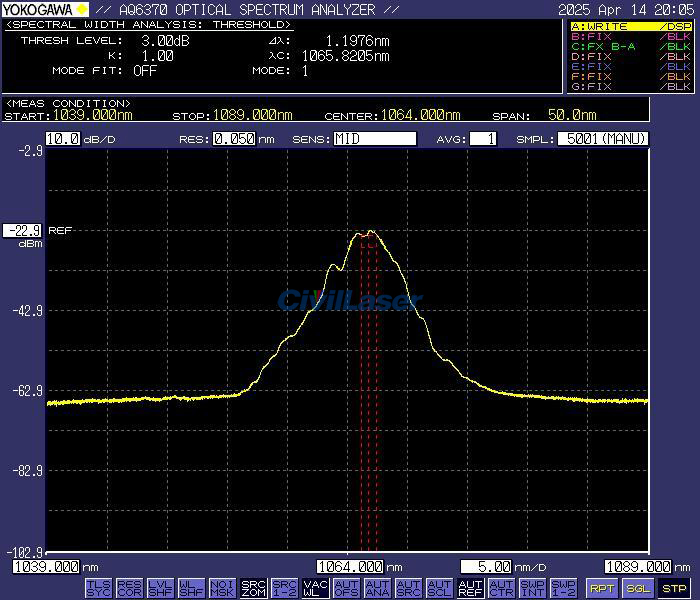

Central Wavelength
|
nm
|
1064
|
|
|
Wavelength Accuracy
|
nm
|
±1
|
|
|
Maximum Single Pulse Energy
|
μJ
|
100
|
@Pulse frequency ≤ 10kHz, pulse width ≥ 50ns
|
|
Max Output Peak Power
|
kW
|
10
|
@Pulse width 50ns, pulse frequency ≤10kHz
|
|
Max Average Laser Power
|
W
|
2
|
@Pulse width ≥ 50ns, pulse frequency ≥ 100kHz
|
|

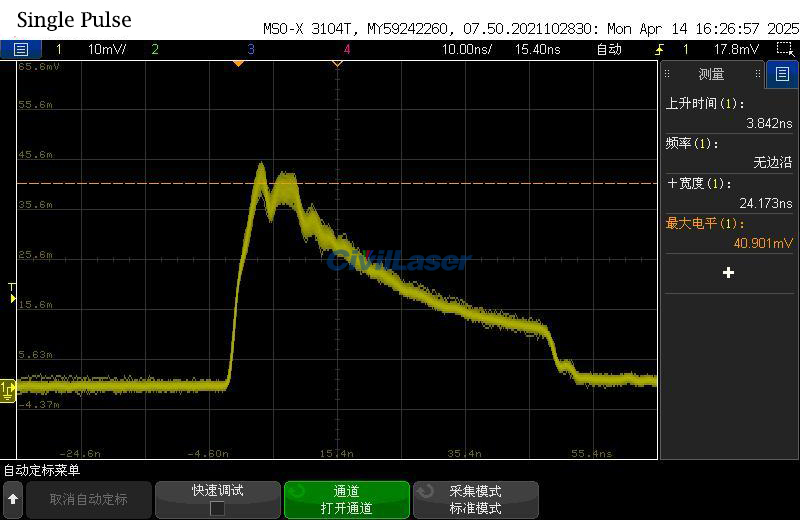

Pulse Width
|
ns
|
5~100 Adjustable
|
Refers to the full width of the bottom
|
|
Repeat Frequency
|
kHz
|
10~3000 Adjustable
|
|
|
Beam Quality M2
|
--
|
≤1.1
|
According to output collimator specifications
|
|
Output Isolation
|
dB
|
≥30
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.1
|
Equivalent≤±2%
|
|
Pigtail Type
|
--
|
12/130 fiber, 900um sleeve
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
Length ≥ 0.3m
|
Note-Trigger:
Trigger Method - External trigger：
If it is an external trigger, it means that the customer needs to input a periodic clock signal to the laser source to trigger the laser light source from the outside in order to output a nanosecond periodic pulse signal.
|
Electrical and environmental parameters
|
Desktop Type
|
|
Control method
|
Touch screen/RS232 serial communication
|
|
Communication interface
|
DB9 Female
|
|
Trigger method
|
TTL, Internal / External trigger (Switchable)
|
|
Power supply
|
AC 100~240V
|
|
Size
|
255(W)×322(D)×115(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
