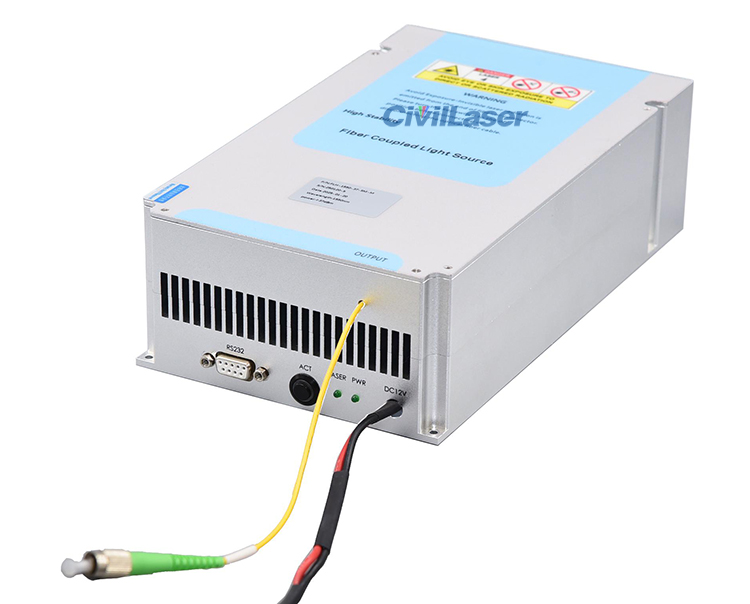

SC-NIR-700-PM-M 1100~2400nm 700mW Supercontinuum Light Source PM1550 Fiber Laser Source Module Type
The supercontinuum light source is a cutting-edge optical innovation product. It uses the nonlinear effect of laser excitation in optical fiber to achieve near-infrared light output covering a wavelength of 1.1~2.4μm, and the output mode is single-mode fiber or polarization-maintaining fiber. Compared with traditional broadband light sources, this product has the advantages of extremely wide spectral range, flat spectrum, and high optical power. It can produce wavelength-tunable lasers with rich application scenarios, and can be used in the fields of material micro-analysis, OCT tomography, industrial detection, etc.
[Features]
Wide spectral range
High spectral flatness
High power
[Applications]
Spectroscopy
Optical Detection
OCT
[Specification]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
SC-NIR-700-PM-M
|
|
|
Wavelength Range
|
nm
|
1100~2400
|
@20dB range
|
|
Wavelength Range
|
nm
|
1535~2180
|
@3dB range
|
|
Power Spectral Density
|
dBm/nm
|
≥-20
|
|
|
Optical Power
|
mW
|
700
|
|
|
Short-term Power Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent ≤±0.5%
|
|
Long-term Power Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent ≤±1.2%
|
|
Polarization State
|
--
|
Linear polarization
|
|
|
Pigtail Type
|
--
|
PM1550 fiber
|
|
|
Connector Type
|
--
|
FC/APC
|
Can be connected to collimator output
|
|
Electrical and Environmental Parameters
|
Module Type
|
|
Control Method
|
RS232 serial communication
|
|
Communication Interface
|
DB9 Female
|
|
Power Supply
|
DC 12V 6A, ≤80W
|
|

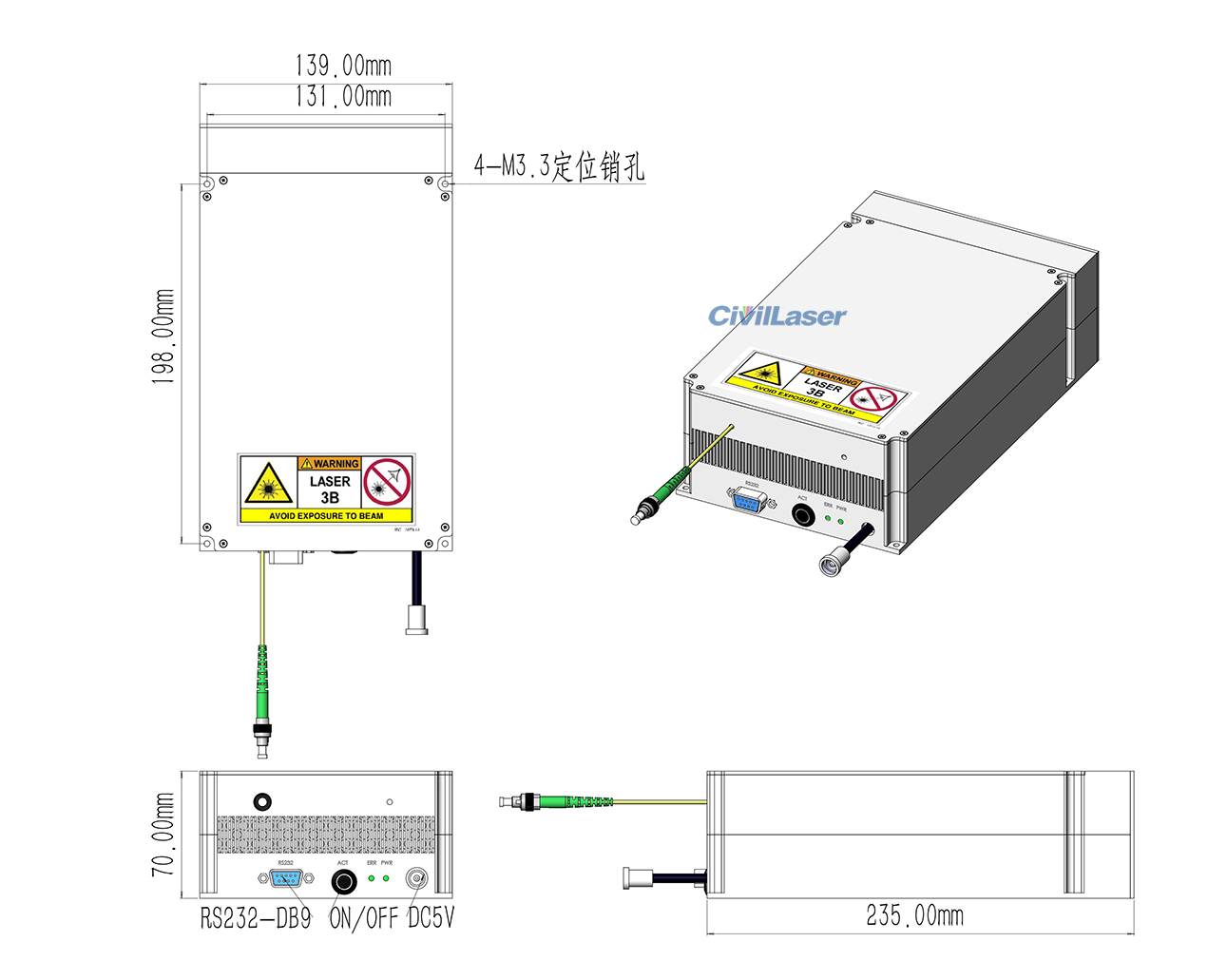

Size
|
139(W)x235(D)x70(H)
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
