980nm 1030nm Dual-Band 50mW ASE Broadband Light Source SM Fiber Laser Benchtop ASE-980/1310-50-SM-B

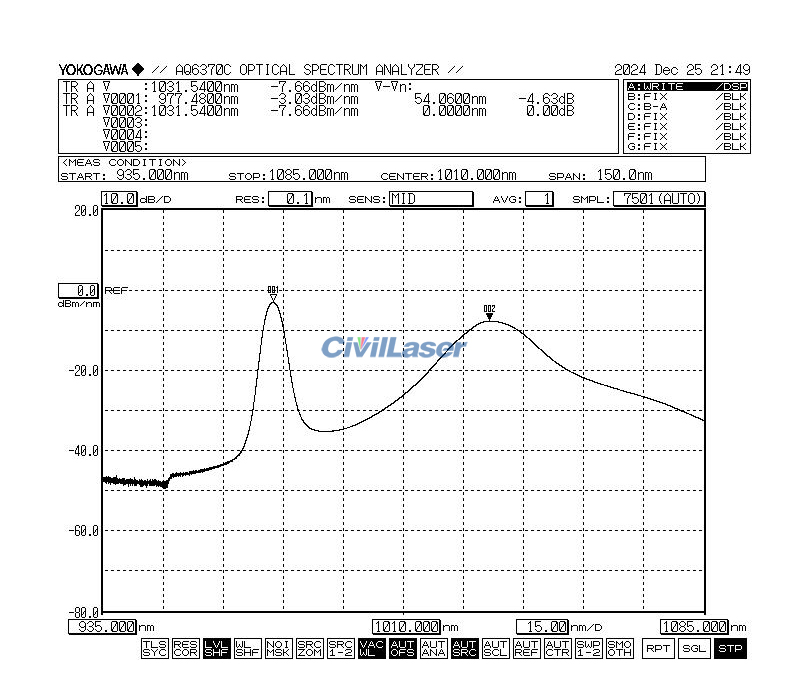

The light source is based on the spontaneous radiation of rare earth optical fiber, with good optical power and low polarization degree, and the spectrum covers both 980nm and 1030nm bands. It is suitable for testing the loss and polarization degree of optical fiber devices, as well as FBG grating production.
[Features]
Wide spectral range
High stability
Low polarization degree
[Applications]
Fiber laser
Optical grating test
Fiber optic device test
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
ASE-980/1310-50-SM-B
|
|
|
Wavelength Range
|
nm
|
980~1030
|
|
|
Optical Power Spectral Density
|
dBm/nm
|
≥-20
|
@980nm @1030nm
|
|
Optical Power
|
mW
|
≥50
|
Total Optical Power
|
|
Output Isolation
|
dB
|
>35
|
Built-in isolator
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization Extinction Ratio PER
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
Hi 1060 Single mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
|
Control Method
|
Touch screen/RS232 serial communication
|
|
Communication Interface
|
DB9 Female (Default not include )
|
|
Power Supply
|
100~240V AC, <30W
|
|
Size
|
255(W)×285(D)×115(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|
