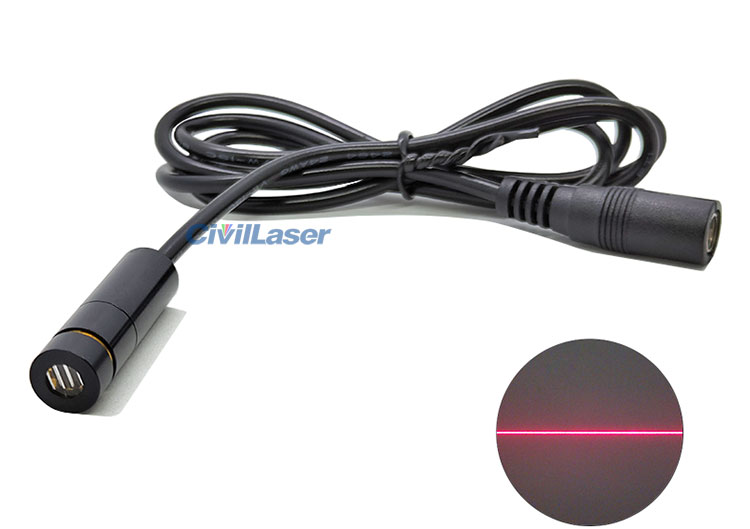

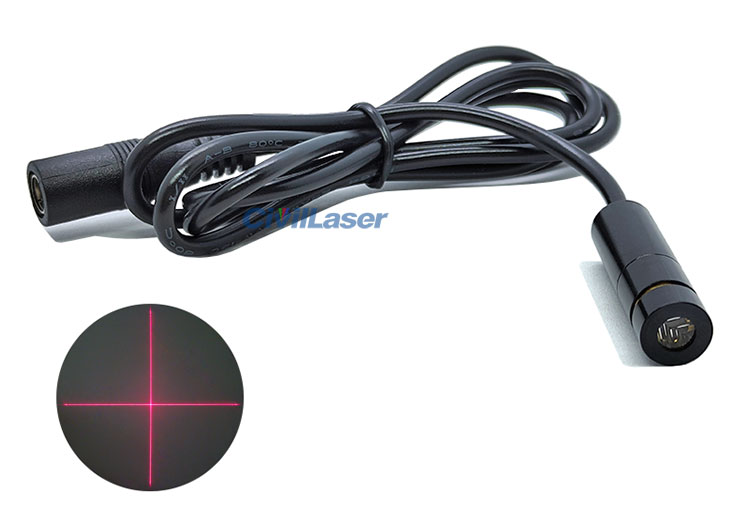

635nm 650nm 1mW~10mW Red Laser Module Focus Adjustable Line/Crosshair Laser Locator Φ10X35mm

635nm 650nm 1mW~10mW Red Laser Module  Focus Adjustable Line/Crosshair Laser Locator Φ10X35mm

[Specification]
Product Name: Laser module
Wavelength: 635±10nm / 650±10nm (Choose)
Output Power: 1mW / 5mW / 10mW (Choose)
Laser Shape: Line / Crosshair (Choose)
Irradiation Range(Indoor): <5m
Diffusion Angle: 90°(Line), 60°(Crosshair)
Focus: Adjustable
Circuit Control: APC circuit (TTL Customizable)
Operating Voltage: DC 2.8~5.2V
Size: Φ10X35mm
Material: Aviation aluminum
Tail Wire: DC female cable, the cable length is about 1m
Operating Current:
635nm: <30mA(1mW), <50mA(5mW), <60mA(10mW)
650nm: <30mA(1mW), <35mA(5mW), <50mA(10mW)
Operating Temperature: -10℃~+40℃ (635nm),  -10℃~+50℃ (650nm)
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

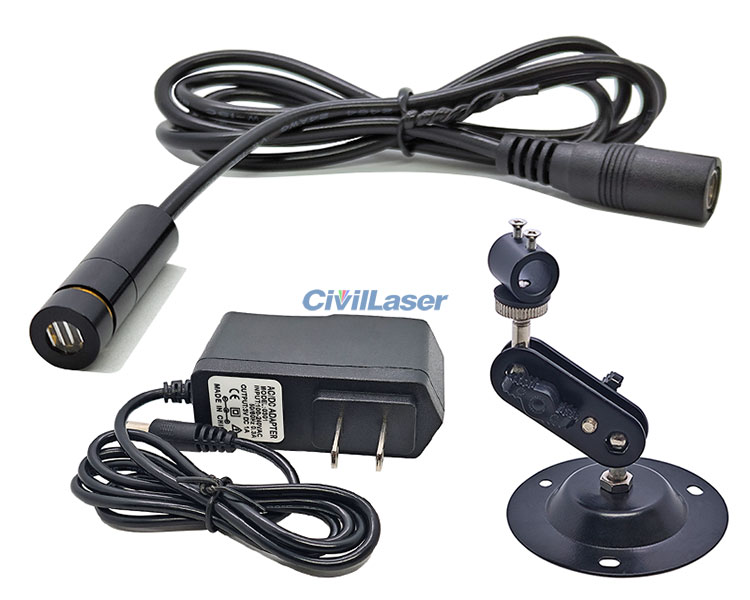

[Package Include]
1 x Laser module
1 x Power supply (Choose)
1 x Module holder (Choose)
