635nm 650nm 1mW/5mW/10mW Red Laser Module Line/Crosshair Laser Locator Φ10X30mm Φ12X30mm

635nm 650nm 1mW/5mW/10mW Red Laser Module Line/Crosshair Laser Locator Φ10X30mm Φ12X30mm

[Specification]
Product Name: Laser module
Wavelength: 635±10nm / 650±10nm (Choose)
Output Power: 1mW / 5mW / 10mW (Choose)

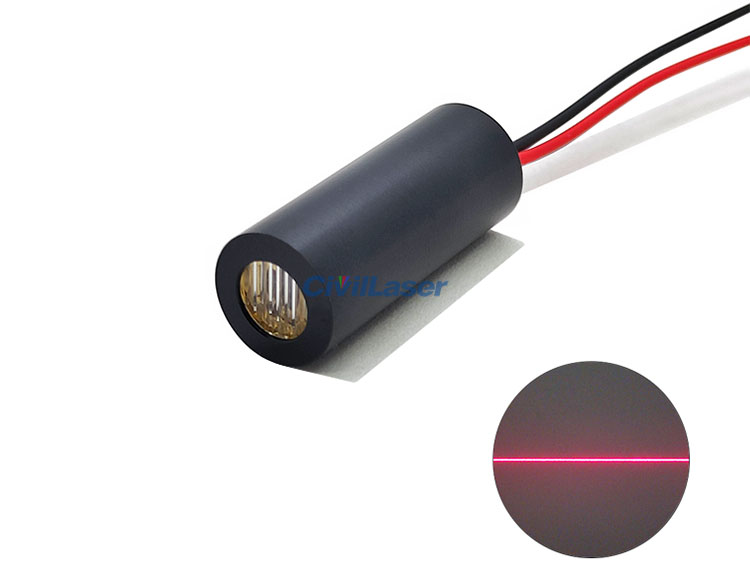

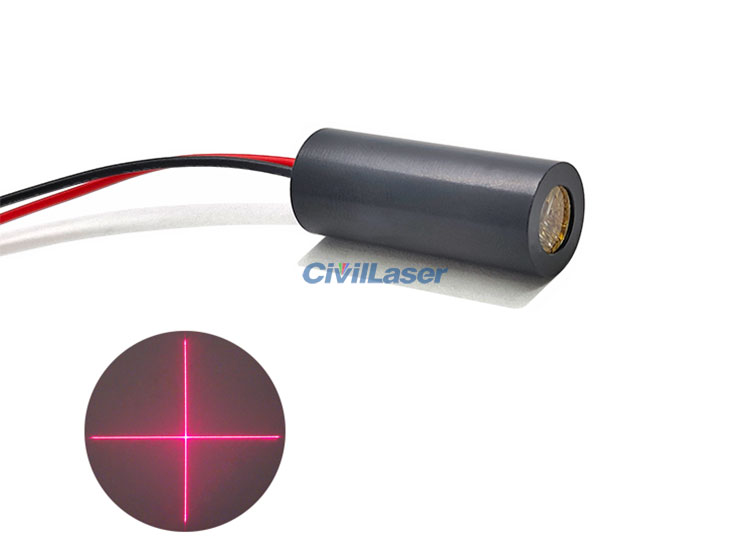

Laser Shape: Line / Crosshair (Choose)
Irradiation Range(Indoor): <5m
Lidewidth: <1.5mm at 0.5m
Diffusion Angle: 90°(Line), 60°(Crosshair)
Focus: Fixed
Circuit Control: APC circuit (TTL customizable)
Operating Voltage: DC 2.8~5.2V

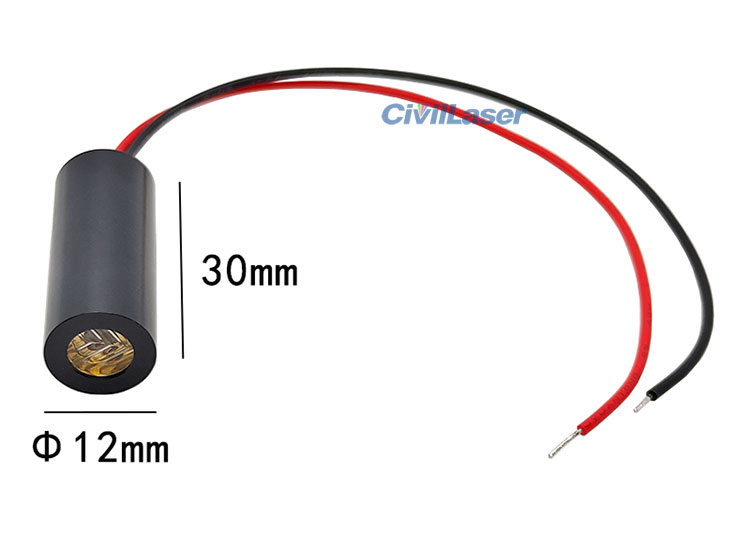

Size: Φ10X30mm / Φ12X30mm (Choose)

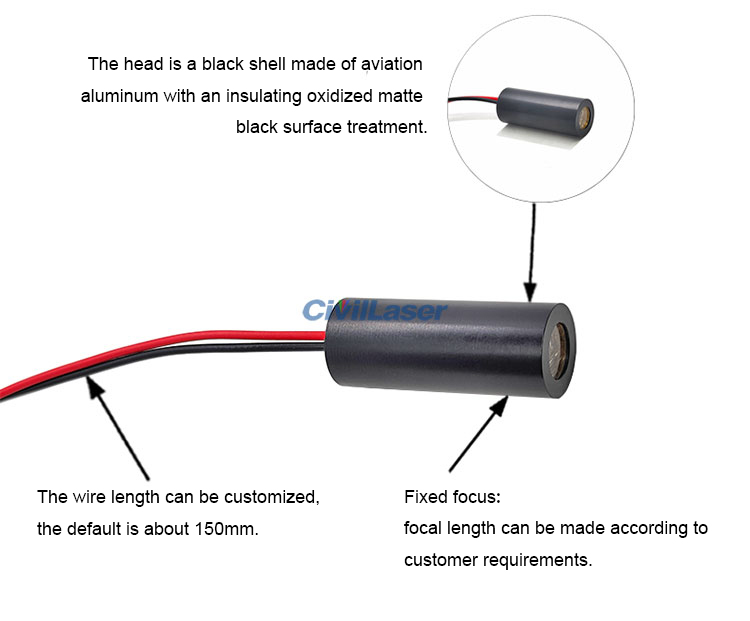

Material: Aviation aluminum
Tail Wire: 26# red and black electronic wire, length about 15cm
Operating Current:
635nm: <30mA(1mW), <50mA(5mW), <60mA(10mW)
650nm: <30mA(1mW), <35mA(5mW), <50mA(10mW)
Operating Temperature: -10℃~+40℃
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

[Package Include]
1 x Laser module
