520nm 1mW/5mW/10mW/15mW Green Laser Module Dot/Line/Crosshair Focus Adjustable Φ12X40mm

520nm 1mW/5mW/10mW/15mW Green Laser Module Dot/Line/Crosshair Focus Adjustable Φ12X40mm

[Specification]
Product Name: Laser module
Wavelength: 520±10nm
Output Power: 1mW / 5mW / 10mW / 15mW (Choose)
Laser Shape: Dot / Line / Crosshair (Choose)
Irradiation Range(Indoor): <250m(Dot), <5m (Line/Crosshair)
Spot Size(@10m): <10mm (Dot)
Diffusion Angle: 90°(Line), 60°(Crosshair)

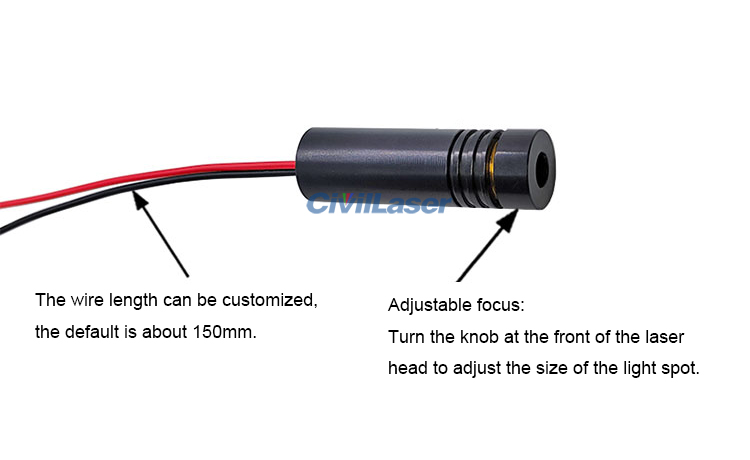

Focus: Adjustable
Circuit Control: APC circuit
Operating Voltage: DC 2.8~5.2V
Size: Φ12X40mm
Material: Aviation aluminum

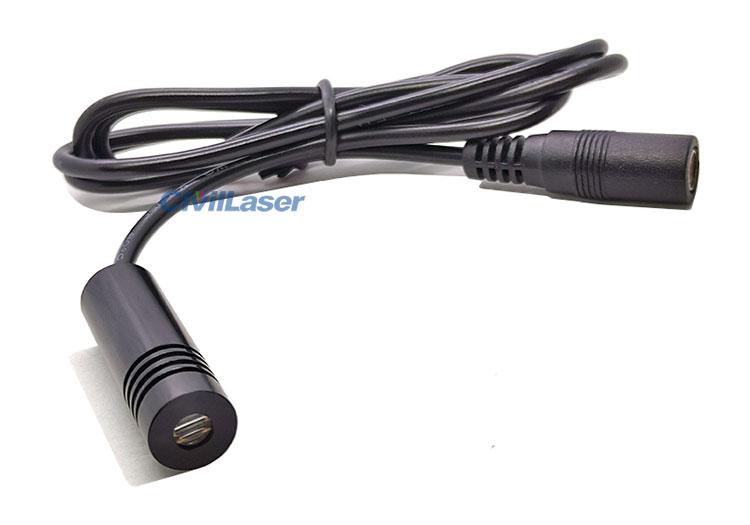

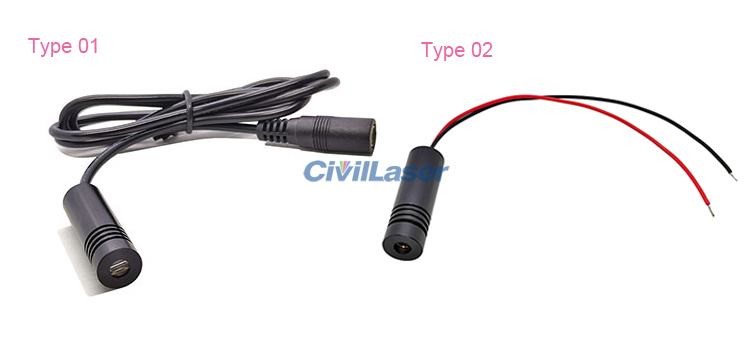

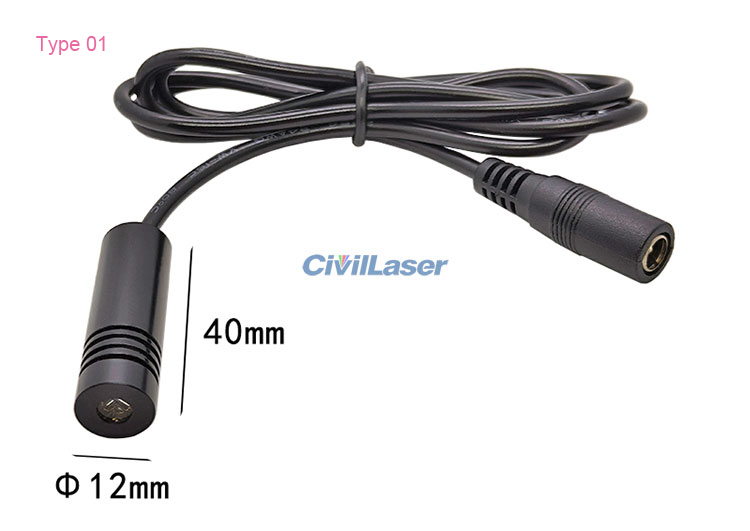

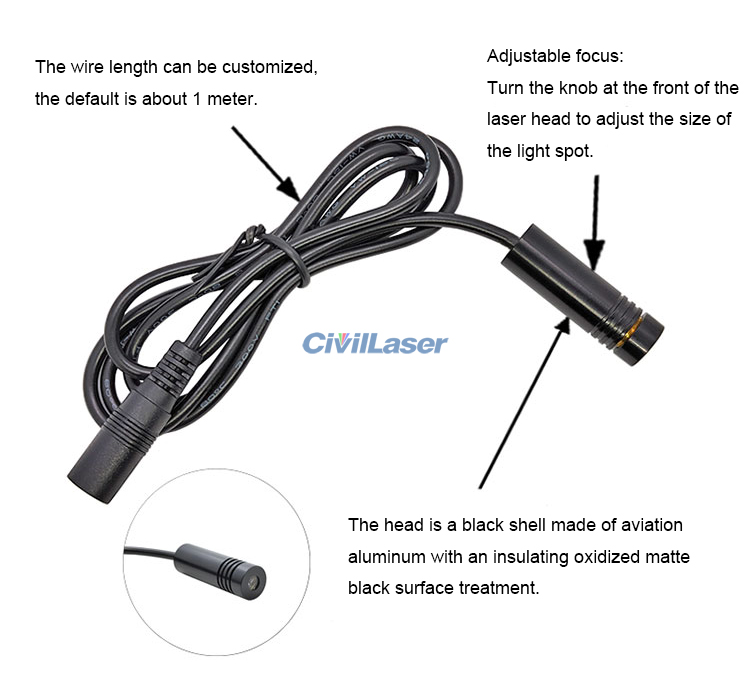

Tail Wire: Type 01 - DC female cable, the cable length is about 1m.

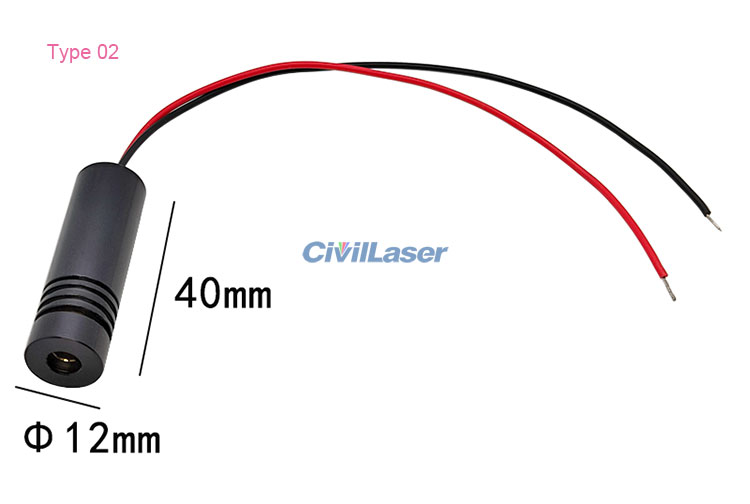

                    Type 02 - 26# red and black electronic wire, length about 15cm.
Operating Current: <80mA(1mW), <120mA(5mW), <180mA(10mW), <250mA(15mW)
Operating Temperature: -10℃~+50℃
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

[Package Include]
1 x Laser module
