650nm 5mW~100mW Red Dot TTL Laser Module Focus Adjustable Φ12X40mm

Starting at: $18.00

Please Choose:





Add to Cart:
Min:  3

650nm 5mW~100mW Red Dot TTL Laser Module Focus Adjustable Φ12X40mm

[Specification]
Product Name: Laser module
Wavelength: 650±10nm
Output Power: 5mW / 10mW /30mW / 50mW / 100mW (Choose)

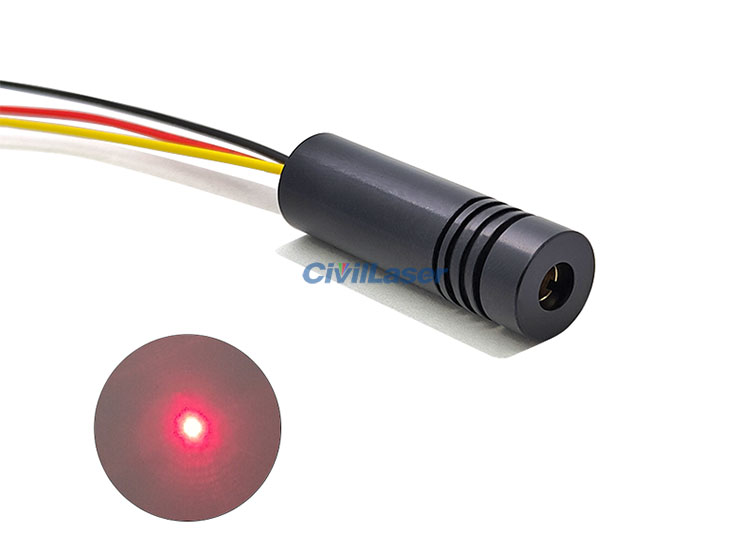

Laser Shape: Dot (Oval)
Irradiation Range(Indoor): <200m(5-10mW), <1100m (30-100mW)

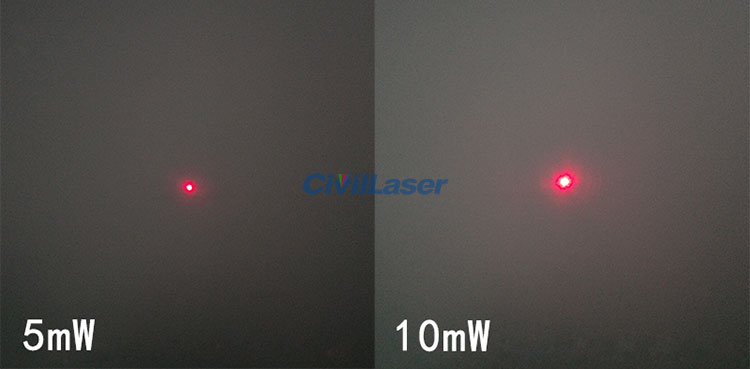

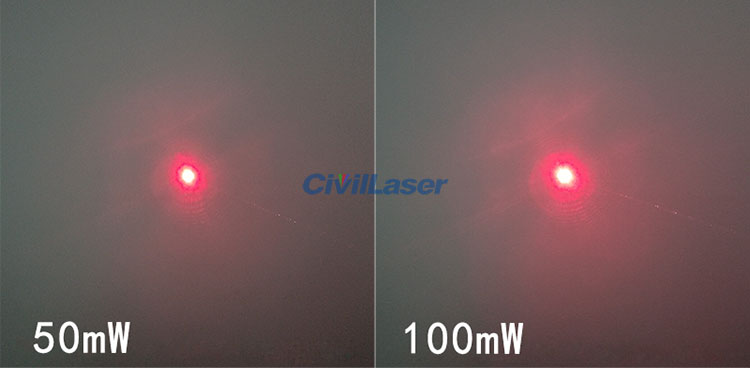

Spot Size(@10m): <10mm

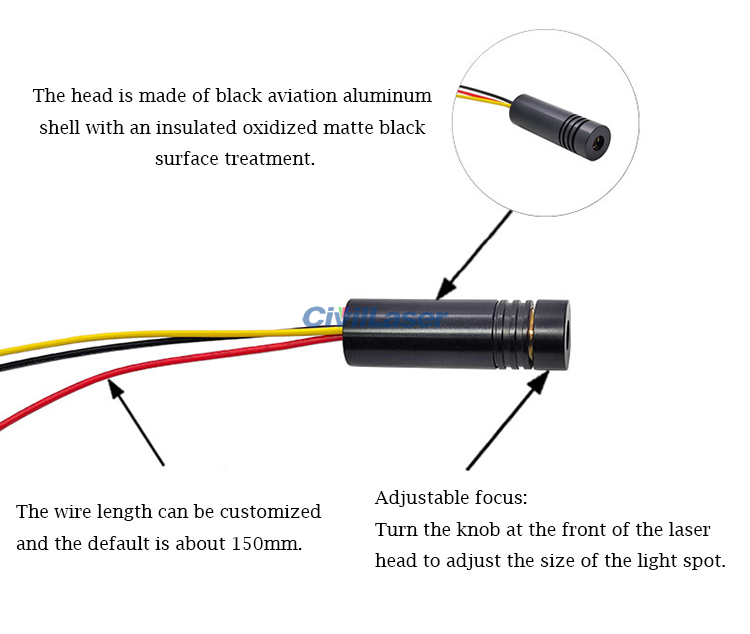

Focus: Adjustable
Circuit Control: 0~100kHz TTL
Operating Voltage: DC 2.8~5.2V

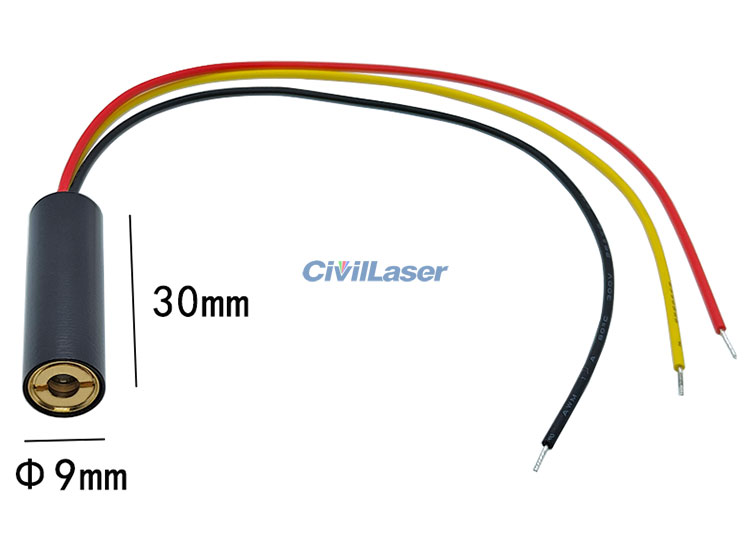

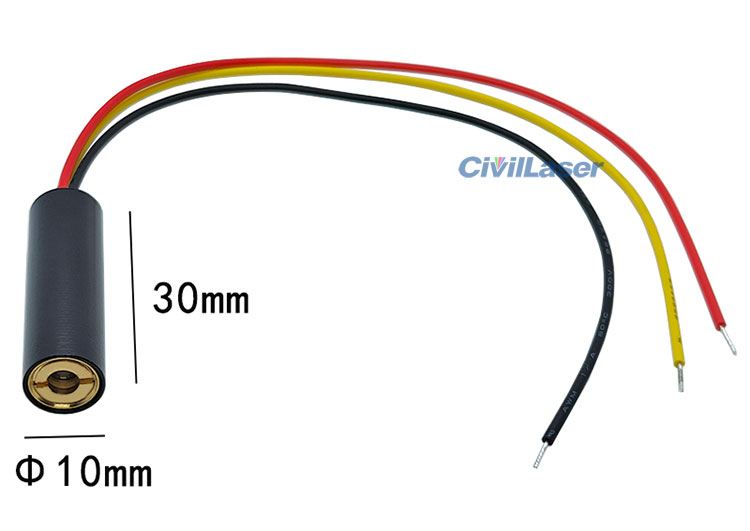

Size:  Φ9X30mm / Φ10X30mm / Φ12X40mm  (Choose)
Material: Aviation aluminum
Tail Wire: 26# red and black and yellow electronic wire, length about 15cm.
Operating Current: <35mA(5mW), <50mA(10mW), <110mA(30mW), <130mA(50mW), <180mA(100mW)
Operating Temperature: -10℃~+50℃
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

[Package Include]
1 x Laser module

Note:

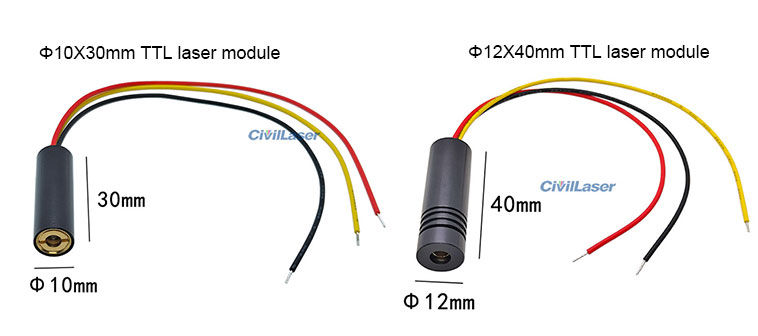

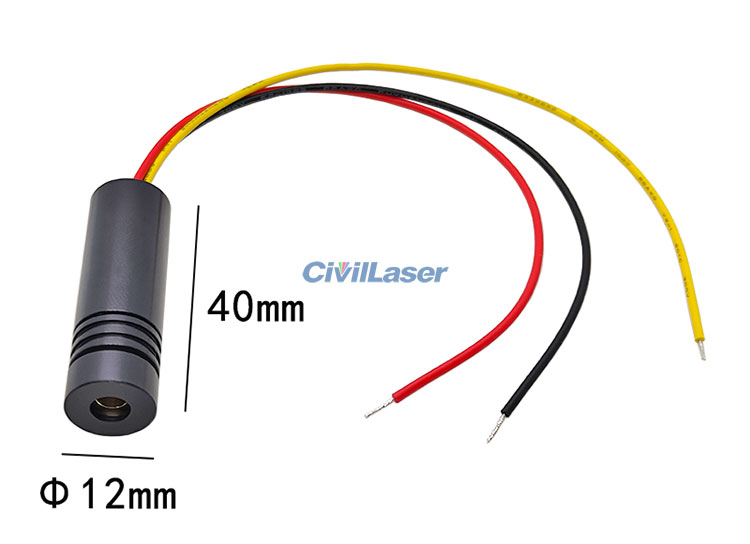

This TTL module has two sizes, Φ10X30mm and Φ12X40mm, and the appearance of the two sizes of modules is also different.
