940nm 200mW~300mW Infrared Laser Module Dot Focus Adjustable Φ12x50mm

940nm 200mW~300mW Infrared Laser Module Dot Focus Adjustable Φ12x50mm

[Specification]
Product Name: Laser module
Wavelength: 940±10nm
Output Power: 200mW / 250mW / 300mW (Choose)
Laser Shape: Dot (oval)
Irradiation Range: <3100m (Indoor)
Spot Size: <20mm at 10 meters

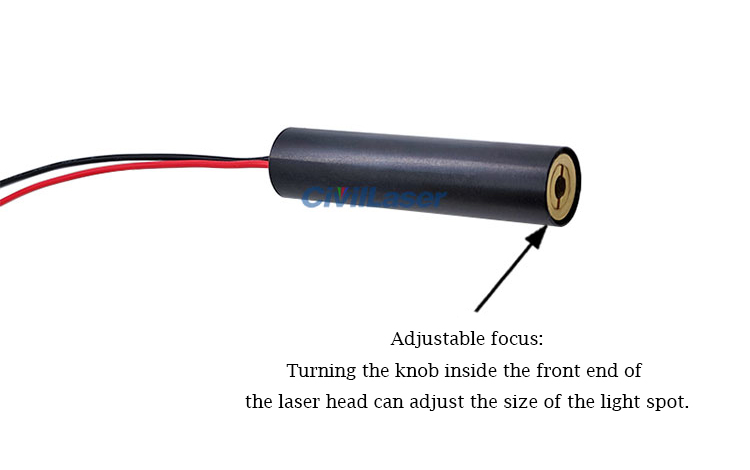

Focus: Adjustable
Circuit Control: ACC (TTL Customizable)
Operating Voltage: DC 2.8~5.2V( DC female cable)/DC 4.8~25V(Red and black wire)
Size: Φ12x50mm / Φ12x40mm (Choose)
Material: Aviation aluminum

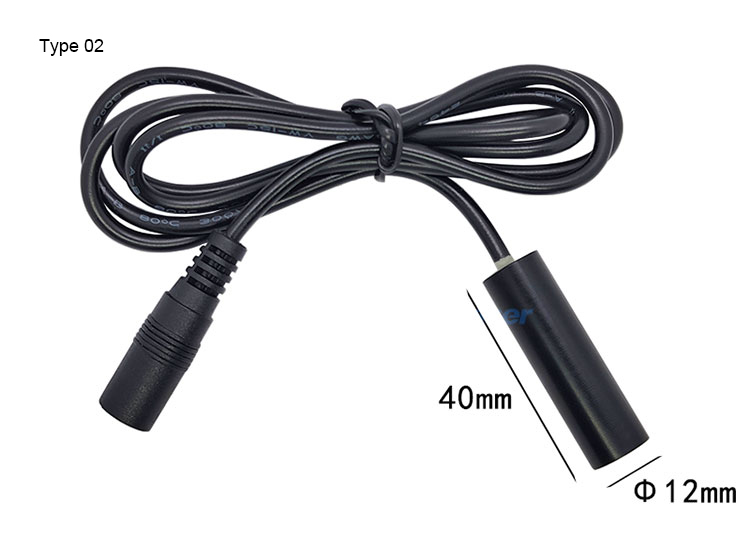

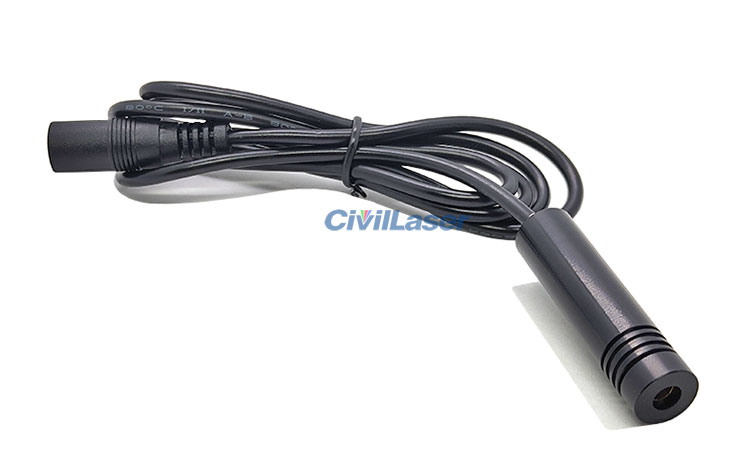

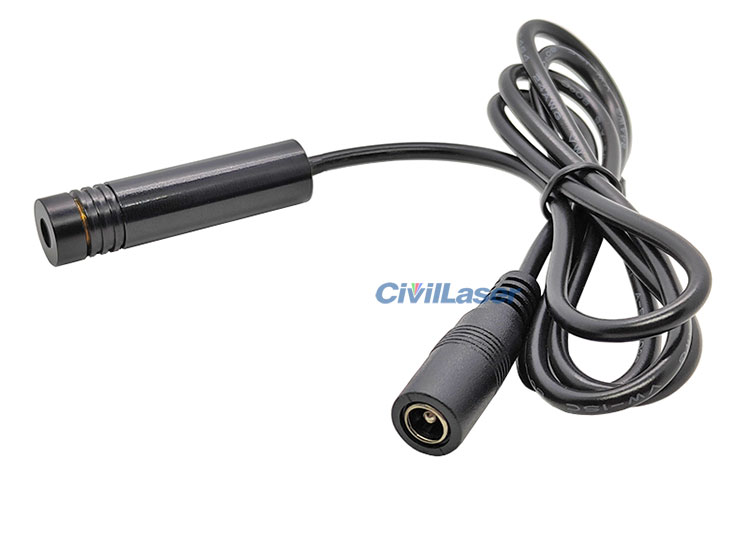

Tail Wire: Type#01: DC female cable, the cable length is about 1m.

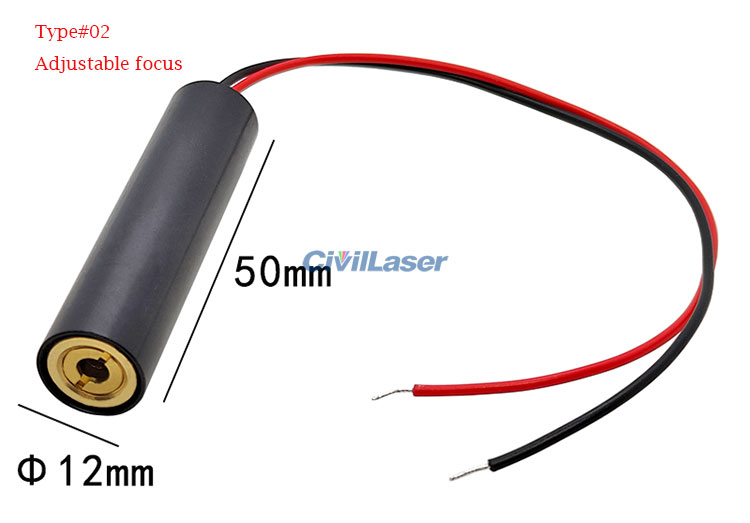

               Type#02: 26# red and black electronic wire, length about 15cm.
Operating Current: <280mA (200mW), <350mA (250mW), <400mA (300mW)
Operating Temperature: -10℃~+50℃
Storage Temperature: -20℃~+70℃
Service Life: >10000 hours

[Package Include]
1 x Laser module
