1250~1650nm -25dBm/nm Spectral Power Density Ultra-Broadband SLD Light Source Desktop Type SLD-1250/1650-25-SM-B1
The core of the SLD broadband light source is equipped with a superluminescent semiconductor diode (SPD) chip. Leveraging its unique spontaneous emission amplification mechanism, it can output stable optical signals with low coherence and a wide spectral range, while also boasting the significant advantage of high output optical power spectral density. This light source operates in the 1250–1650 nm near-infrared band, exhibiting excellent spectral flatness and low coherence noise. It can precisely meet the stringent technical requirements of applications such as optical coherence tomography (OCT), distributed fiber optic sensing, and performance testing of passive optical devices, providing a highly reliable broadband light source solution.
[Features]
Ultra wide spectrum
Low spectral ripple
Stable power
[Applications]
Optical fiber sensing
Medical Imaging
Optical fiber device testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
SLD-1250/1650-25-SM-B1
|
|
|
Spectral Range
|
nm
|
1250~1650
|
|
|
Ouput Power
|
mW
|
≥5
|
When PER is added, the output power will be reduced.
|
|
Spectral Power Density
|
dBm/nm
|
≥-25
|
|
|
Spectral Ripple
|
dB
|
<0.5
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
PER (Polarization Extinction Ratio)
|
dB
|
≤2
|
Adding PER results in reduced output power.
eg: 10mW SLD, after adding PER, the output power becomes about 8.5mW.
|
|
Pigtail Type
|
--
|
SMF-28 Single mode fiber
|
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Desktop Type
|
|
Control Method
|
Touch screen/RS232 serial communication
|
|
Communication Interface
|
DB9 Female (Default not include)
|
|
Power Supply
|
AC 100~240V
|
|
Size
|
255(W)×285(D)×115(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|

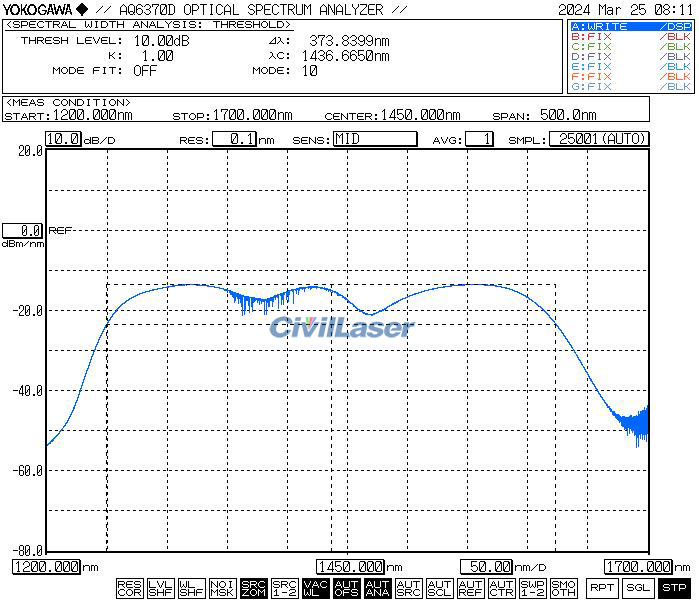

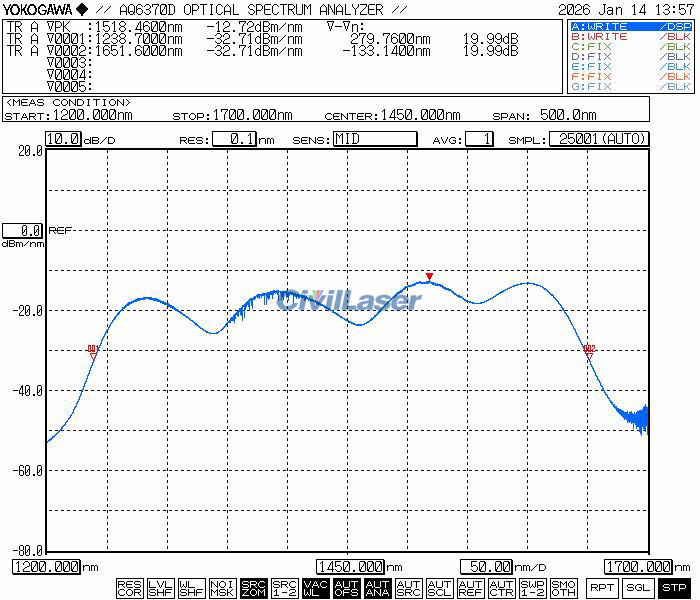

Spectral testing:
.jpg)
.jpg)

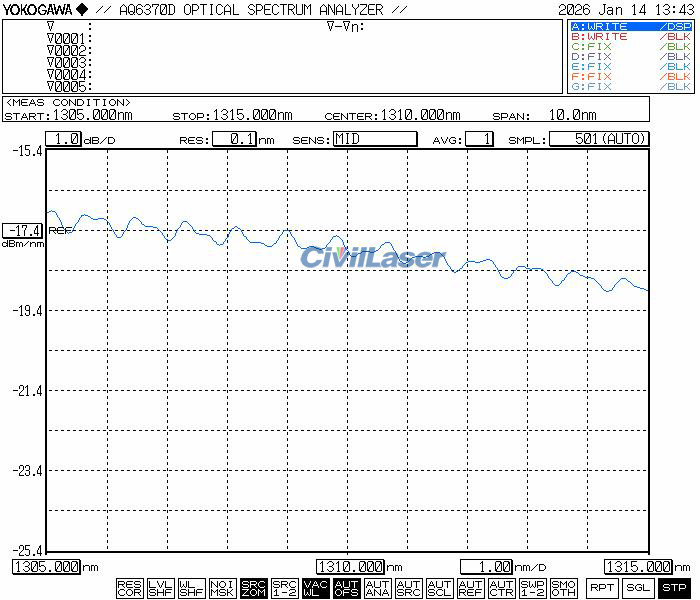

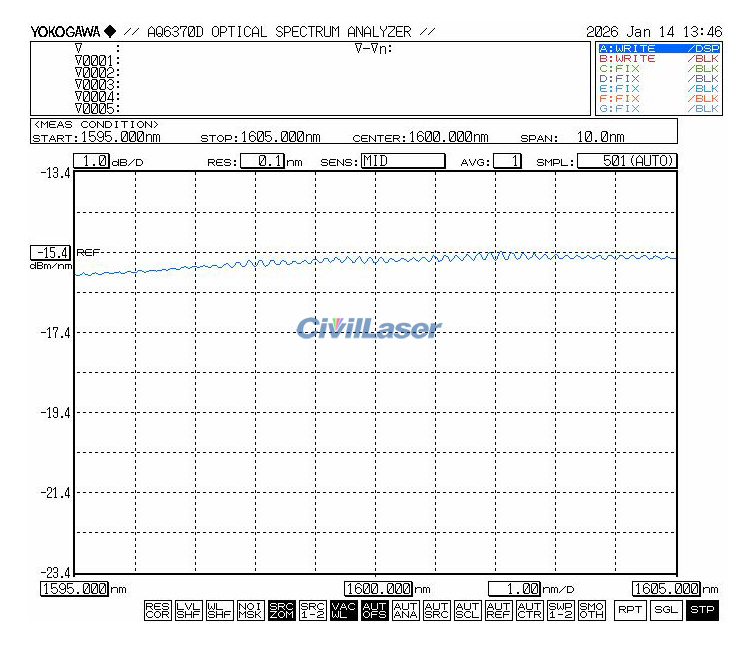

Spectral ripple test:
.jpg)
.jpg)

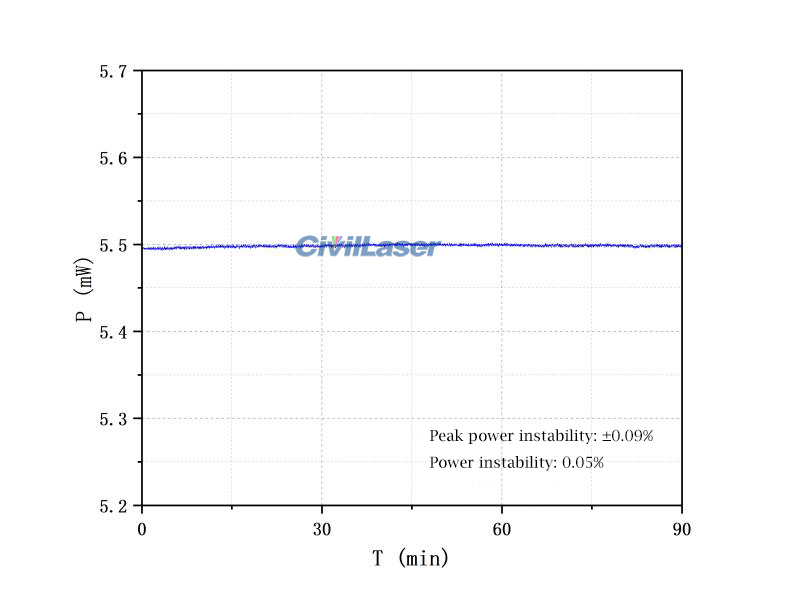

Optical power stability:
.jpg)
Note: The burr in the spectrum at 1350~1400nm wavelength is the air OH-absorption peak.
.jpg)
.jpg)
.jpg)
