1064nm 50mW Ultra-narrow Linewidth Laser Source Module With PM Fiber NLFL-1064-50-T-PM-M
The single-frequency narrow-linewidth continuous fiber laser adopts a fiber DFB laser cavity structure, outputs a single longitudinal mode narrow-linewidth continuous laser in the 1064nm wavelength band, has a spectral linewidth of less than 20kHz, and an output spectral side mode suppression ratio of more than 60dB. It can also provide higher power versions. It can be provided in module or desktop packaging, and is an ideal laser source for applications such as distributed sensing.
[Features]
Spectral linewidth ≤ 20kHz
All-fiber DFB resonator
Wavelength stable without mode hopping
[Applications]
Lidar
Acoustic sensing, hydrophone
Optical fiber distributed sensing
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
NLFL-1064-50-PM-M /
NLFL-1064-50-T-PM-M
|
T: Tunable power
|
|
Working Wavelength
|
nm
|
1064±0.1
|
|
|
Wavelength Adjustment Range
|
nm
|
±0.1
|
Slow temperature tuning
|
|
Wavelength instability
|
MHz
|
≤±25
|
|
|
Spectral Linewidth
|
kHz
|
≤ 20
|
*3dB line width = 20dB beat frequency line width / 20
|
|
Sideband Suppression Ratio
|
dB
|
≥60
|
|
|
Working Mode
|
-
|
CW, Single frequency single longitudinal mode
|
Continuous Laser
|
|
Pump Output Power
|
mW
|
≥50
|
Fixed (Default) /
10~100% Output power Tunable(Choose)
|
|
Polarization state
|
-
|
Linear Polarization
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Pigtail Fiber Type
|
--
|
PM980 PM Fiber
|
L=1m
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
|
Electrical and environmental parameters
|
Module Type
|
|
Control method
|
RS232 Serial communication
|
|
Communication interface
|
DB9 Female
|
|
Power supply
|
DC 12V, ≤10W
|
|

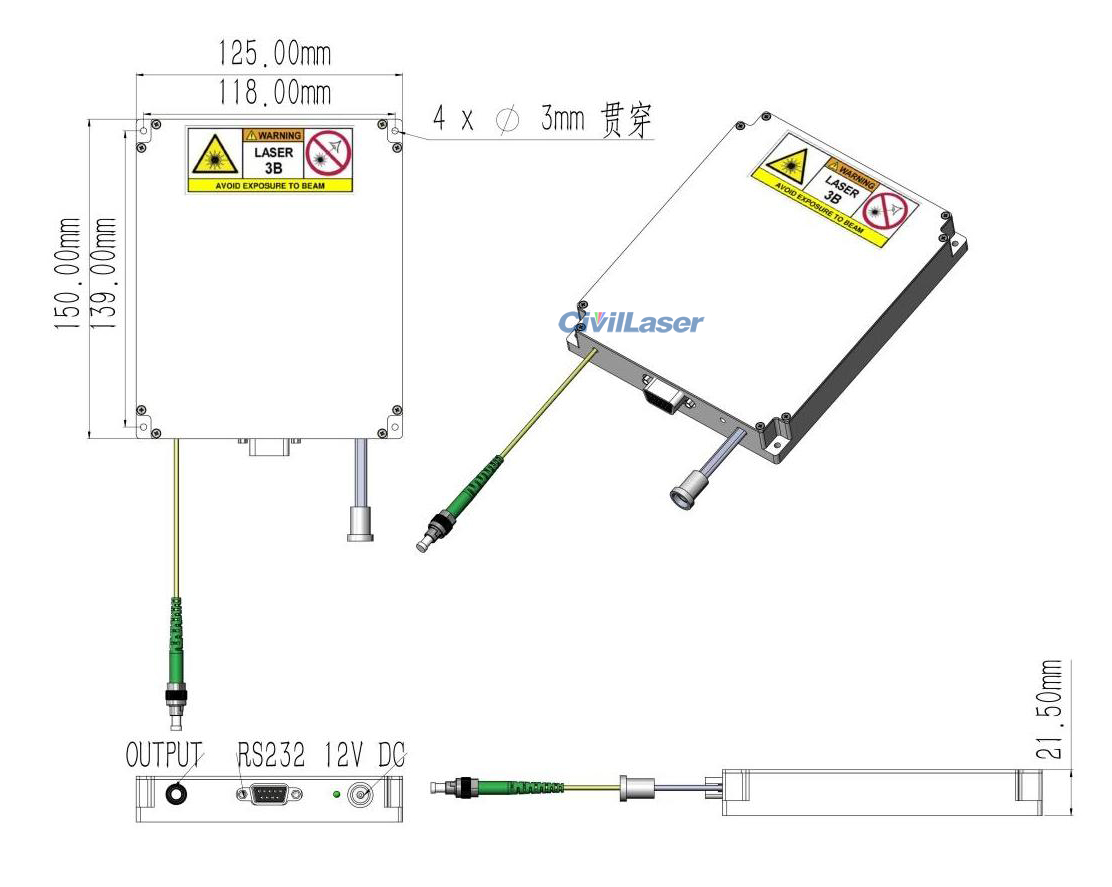

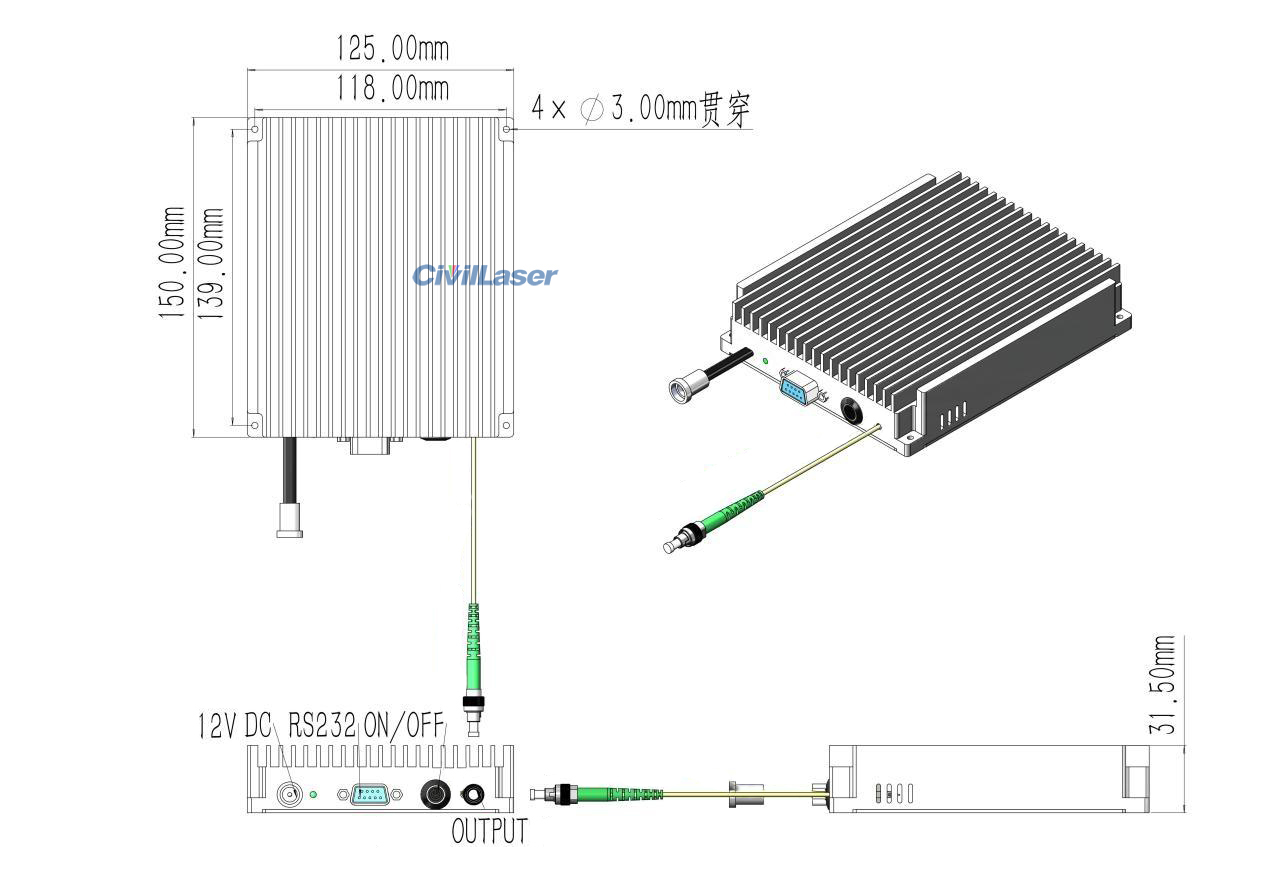

Size
|
125(W)×150(D)×31.5(H)mm
or 125(W)×150(D)×21.5(H)mm
|
|
Operating temperature range
|
-5~+35°C
|
|
Operating humidity range
|
0~70%
|
