ASE-2000-500-SM-M 2000nm Band 500mW ASE Light Source SM Fiber Laser Module
The 2000nm band ASE broadband light source uses short-wavelength laser pumping thulium-doped fiber and single-mode fiber output. The spectrum covers 1780~2000nm. It has a wider coverage range and greater power than the standard 2μm broadband light source, and is suitable for applications such as laser biology and spectral measurement.
Note: 4~8 weeks lead time.
[Features]
Spectrally flat
Adjustable power
Wide spectral range
[Applications]
Optical fiber sensing
Medical Imaging
Production testing
[Specifications]
|
Parameters
|
Unit
|
Typical value
|
Remarks
|
|
Model
|
--
|
ASE-2000-500-SM-M
|
|
|
Spectral Range
|
nm
|
2000nm Band
|
2000nm band ASE, please refer to the attached figure for the spectral range;
The wavelength range of each ASE 2μm 500mw laser is slightly different.
|
|
Ouput Power
|
mW
|
500
|
|
|
Power Adjustment Range
|
--
|
10%~100%
|
Adjustable power
|
|
Output Isolation
|
dB
|
>35
|
|
|
Short-term Stability (15 minutes)
|
dB
|
≤ ±0.02
|
Equivalent≤±0.5%
|
|
Long-term Stability (8 hours)
|
dB
|
≤ ±0.05
|
Equivalent≤±1.2%
|
|
Polarization Extinction Ratio
|
dB
|
≤ 0.2
|
|
|
Pigtail Type
|
--
|
SM 1950
|
Φ=2mm loose tube, L=1m
|
|
Pigtail Connector Type
|
--
|
FC/APC
|
|
|
Electrical and Environmental Parameters
|
Module Type
|
|
Control Method
|
RS232 Serial communication
(Only for power Tunable ASE)
|
|
Communication Interface
|
DB9 Female
(Only for power Tunable ASE)
|
|
Power Supply
|
DC 12V, 3A
|
|
Size
|
139(W)×235(D)×70(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|

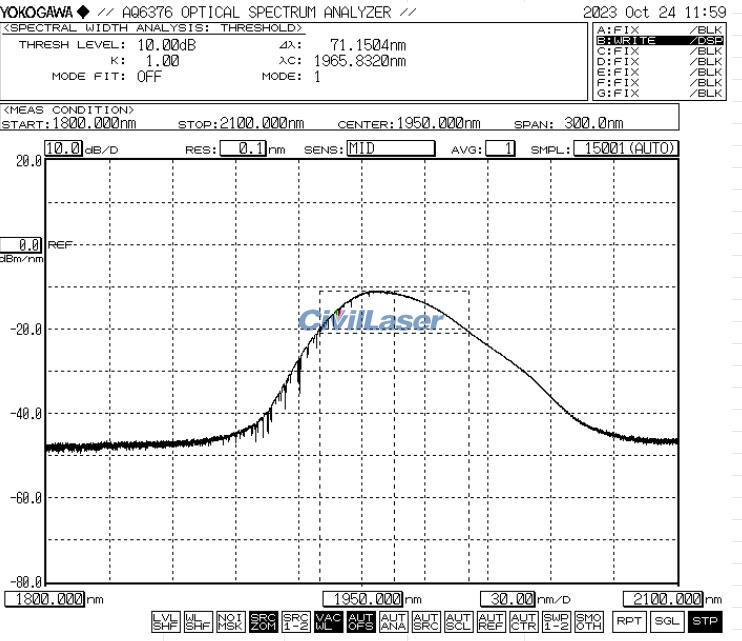

Spectrum 1: ASE 2μm 500mW
Features: High power
Spectrum 2: ASE 2μm 100mW (for comparison)
Features: Low power, wider spectrum coverage and high flatness;
