Second hand 405nm 500mW Pulse 1000mW Blue Violet Laser Diode With Heat Sink TO 18

$87.00

Add to Cart:


Secondhand 405nm 500mW Pulse 100mW Blue Violet Laser Diode With Heat Sink TO 18

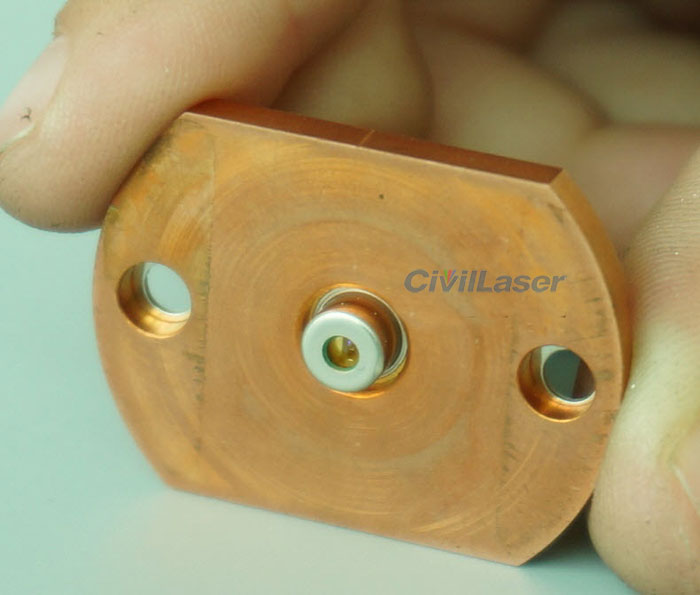

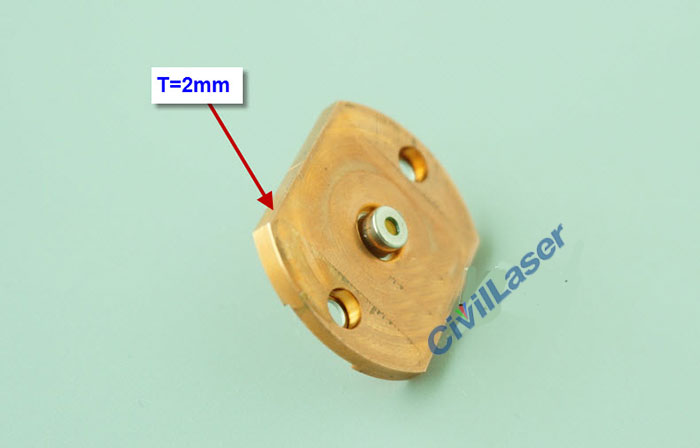

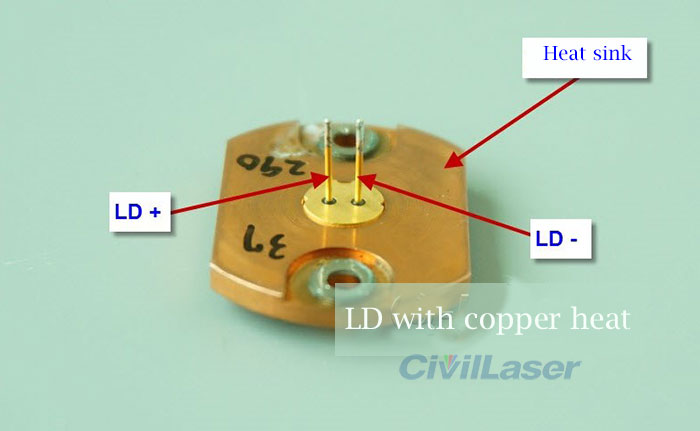

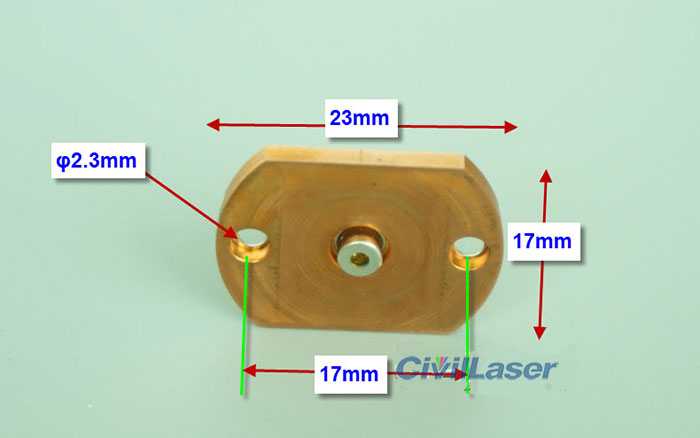

This new ultra-high-power laser tube, comes with copper heat sink, continuous output power of 500mW, pulse power up to 1W, super burning capacity.

[Specifications]
Name: Blue-violet laser diode with heat sink
Output Wavelength:450nm
Output Power:500mw  (CW)  1000mw (Pulse)
Operating Voltage : 4.3V-5V
Operating current:  560mA
Package : TO-18(5.6mm)
Working Time:  >10000 hours

[Precautions]
This element is sensitive to static electricity, anti-static measures do not Avoid hand contact laser tube body, in addition to the product must have a qualified driver circuit is working properly before, different power voltages the same, but different operating current, the circuit on the tube drive current needs to be controlled in a safe range, otherwise it will affect life expectancy.

Sencondhand 405nm 500mW Pulse 100mW Blue Violet Laser Diode With Heat Sink TO 18

Sencondhand 405nm 500mW Pulse 100mW Blue Violet Laser Diode With Heat Sink TO 18

Sencondhand 405nm 500mW Pulse 100mW Blue Violet Laser Diode With Heat Sink TO 18

Sencondhand 405nm 500mW Pulse 100mW Blue Violet Laser Diode With Heat Sink TO 18
