905nm 6W Laser Chip 0.75mm Cavity Length Single Emitter 905B-20-6-0.75-SE
[Features]
High laser power
High efficiency.
Excellent beam characteristics.
Long lifetime, high reliability.
[Applications]
LiDAR
Measuring instruments
Security
Scientific rersearch
Note:
1. Lead time: Some chips are in stock, and it will take 2 to 3 weeks if there is no stock.
2. Wholesale price: >100 pcs order, please contact us, the price has a bigger discount.
3. Country of origin: Made In China
[Specifications]
|
Parameters
|
Symbol
|
Min.
|
Typical
|
Max.
|
Unit
|
|
Operation
|
|
Center wavelength
|
λ
|
895
|
905
|
915
|
nm
|
|
Output power
|
Po
|
|
6
|
|
W
|
|

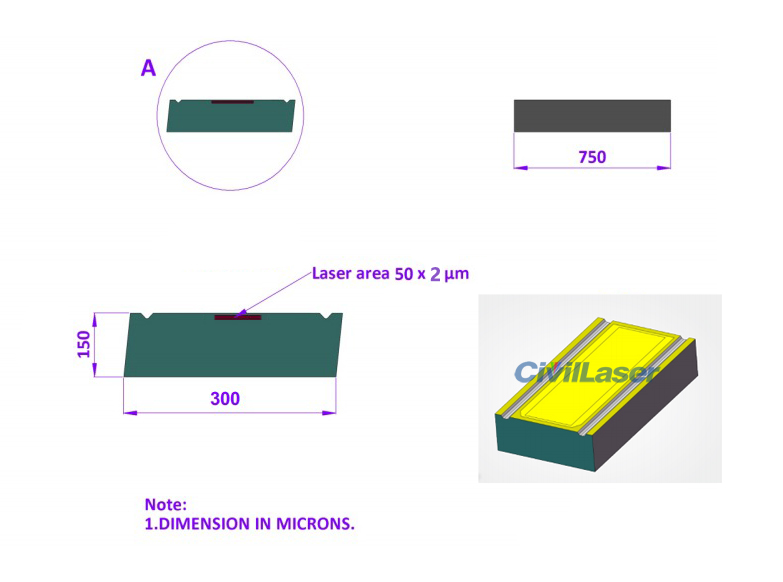

Geometrical
|
|
Optical aperture size
|
w x h
|
|
50x2
|
|
μm²
|
|
Cavity length
|
L
|
|
750
|
|
μm
|
|
Chip width
|
W
|
|
300
|
|
μm
|
|
Chip height
|
H
|
|
150
|
|
μm
|
|
Electro Optical Data
|
|
Threshold current
|
Ith
|
|
0.2
|
|
A
|
|
Operating current
|
Iop
|
|
5
|
|
A
|
|
Operating voltage
|
Vop
|
|
2.6
|
|
V
|
|
Slow axis divergence FWHM
|
θ∥
|
|
16
|
|
degrees
|
|
Fast axis divergence FWHM
|
θ⊥
|
|
30
|
|
degrees
|
|
Spectral width FWHM
|
△λ
|
|
7
|
|
nm
|
|
Wavelength temperature coefficient
|
Δλ/ΔT
|
|
0.28
|
|
nm/℃
|
