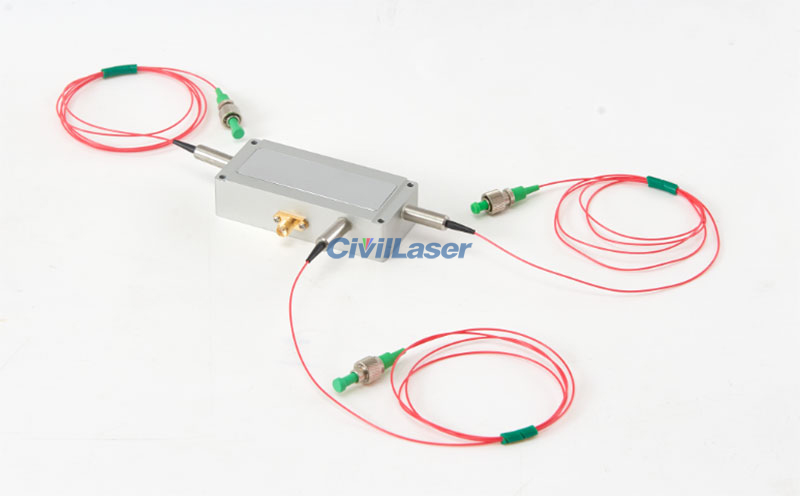

1550nm 80MHz Dual Output Fiber-Coupled Acousto-Optic Modulator AOM Acousto-Optic Device
[Features]
Optical fiber output of class 0 light and class 1 light.
Polarization-maintaining or single-mode fiber.
High extinction ratio.
Can be customized according to different wavelengths and frequencies.
Note:
Lead Time: 3~4 weeks
[Specifications]
| Parameter |
Unit |
Min |
Max |
Typ. |
Remarks |
| Material |
|
|
|
TeO² |
|
| Wavelength |
nm |
1520 |
1580 |
1550 |
|
| Average Optical Power |
W |
|
0.5 |
|
|
| Ultrasonic Velocity |
m/s |
|
|
4200 |
|
| Insertion Loss |
dB |
Class 1 light <2
Class 0 light <1.5 |
|
| Extinction Ratio |
dB |
Class 1 light >45
Class 0 light >10 |
|
| Return Loss |
dB |
40 |
|
|
|
| Rising/Falling Time |
ns |
45 |
70 |
45 |
|
| Frequency |
MHz |
|
|
80 |
|
| RF Power |
W |
|
2.5 |
2.5 |
|
| Voltage Standing Wave Ratio |
|
|
|
1.2:1 |
|
| Input Resistance |
Ω |
|
|
50 |
|
| Device Interface |
|
|
|
SMA |
|
| Fiber Type |
|
PM1550 / SMF-28e fiber |
Customziable |
| Fiber Length |
m |
|
|
1 |
|
| Fiber Interface |
|
|
|
FC/APC |
|
| Operating Temperature |
℃ |
|
|
-20~+60 |
|
| Storage Temperature |
℃ |
|
|
-30~+70 |
|
