Super small Φ4mm 650nm 0.5mw 1mw 5mw Red dot laser module Miniature laser head

Starting at: $10.00

Please Choose:





Add to Cart:
Min:  5

Super small Φ4mm 650nm 0.5mw 1mw 5mw Red dot laser module Miniature laser head

[SPECIFICATIONS]
Name:  Super small Φ4mm 650nm Red dot laser module
Output Wavelength: 650nm ±5nm
Output Power: 0.5mw, 1mw, 5mw(can be customized)
Class level: Class II
Laser Shape: Dot
Range: <100 meters
Material: Copper
Surface treatment / color: Brass color
Laser type: Red laser
Shape/dimension: <Φ18mm at 10m distance, focus adjustable or fix focus
Circuit control: APC

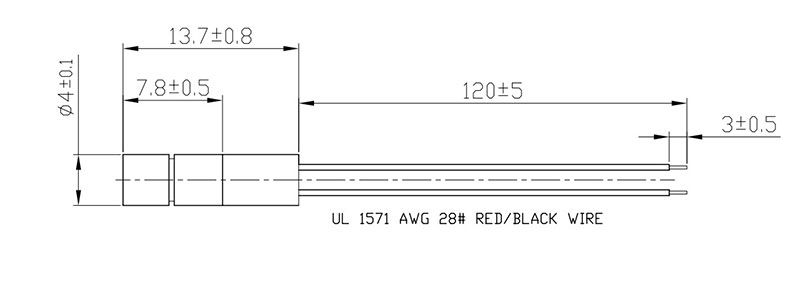

Size: Φ4×13.7mm
Operating Voltage:  DC=3.0~5.0V
Operating current: I<30mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >10000 hours
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty

Super small Φ4mm 650nm Red dot laser module

Super small Φ4mm 650nm Red dot laser module
Super small Φ4mm 650nm Red dot laser module
