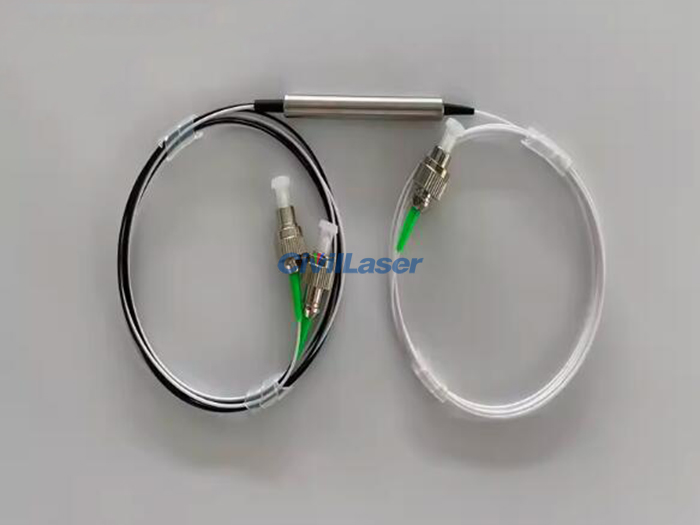

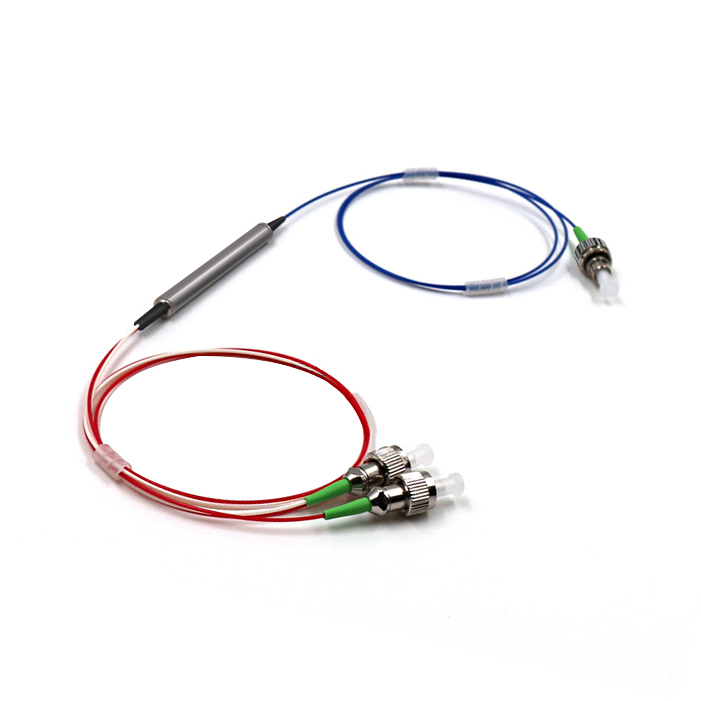

1310nm 1550nm 2x1 Three-port Single-mode Fiber Circulator Can be Customized

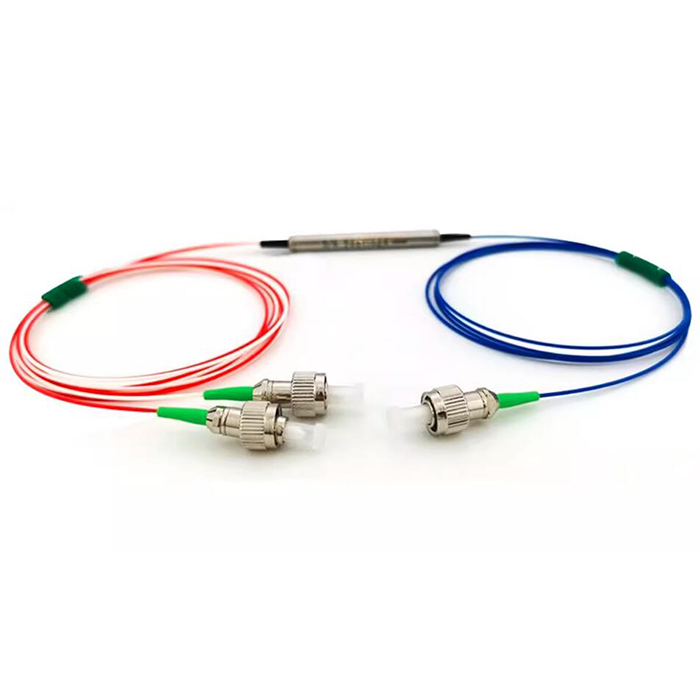

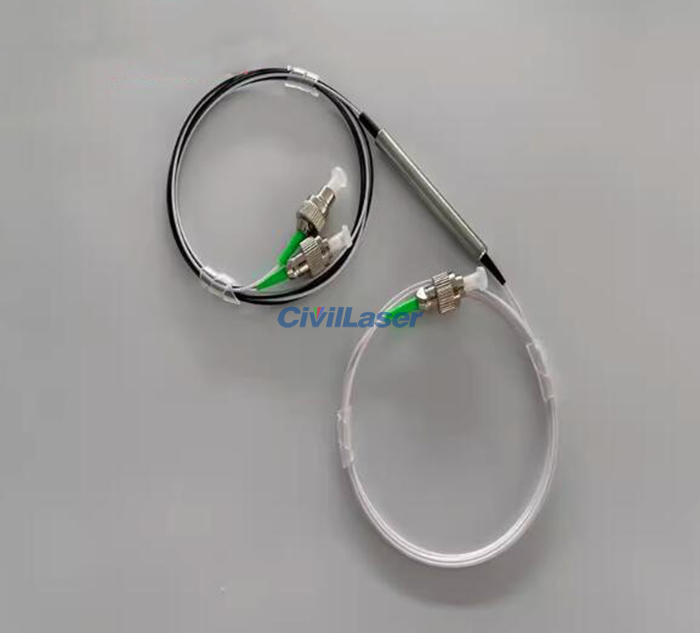

A three-port fiber optic circulator is a multi-port non-reciprocal optical device in which light can only propagate in one direction. If the signal is input from port 1, it will be output from port 2; if the signal is input from port 2, it will be output from port 3, and its output loss is very small; when the light is input from port 2, the loss when output from port 1 is very large. Similarly, when light is input from port 3, the loss when output from ports 1 and 2 is also very large.
We can produce three-port, four-port fiber circulators with different powers and different wavelengths. Our products are widely used in fiber lasers, instrumentation, dispersion compensation devices, fiber sensing, scientific research and other fields.
[Features]
Low insertion loss
High isolation
High stability and reliability
Compact structure
[Applications]
Fiber laser
Fiber amplifier
Fiber optic sensing
Optical Fiber Communication

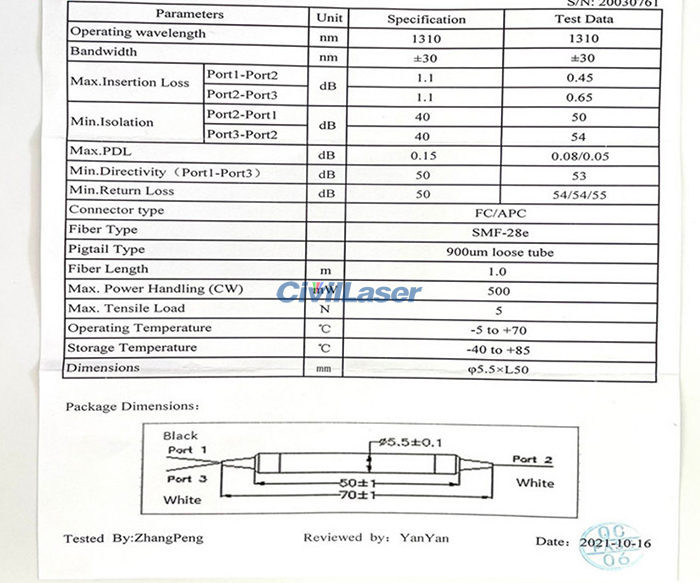

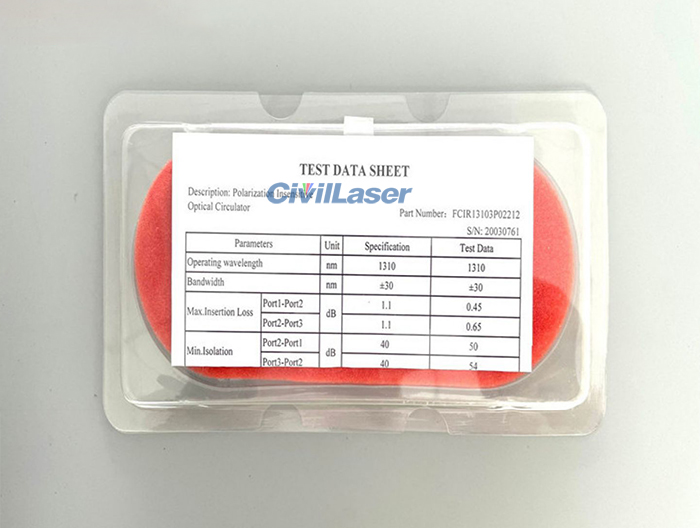

[Specifications]
| Paramter |
Unit |
Value |
| Center Wavelength |
nm |
530/630/780/850/980/1064/1310/1550 (Choose) |
| Operation Wavelength Range |
nm |
±20 |
| Peak Isolation(Typ.) |
dB |
50 |
| Min. Isolation |
dB |
40 |
| Typical Insertion Loss |
dB |
0.6 |
| Max. Insertion Loss |
dB |
0.8 |
| Polarization Dependent Loss |
dB |
≤0.15 |
| Withstand Power |
mW |
300, 1000, 2000, ... (Customizable) |
| Pulse Peak Power |
kW |
<10@ns pulse |
| Min Cross Talk |
dB |
50 |
| Min Return Loss |
dB |
50 |

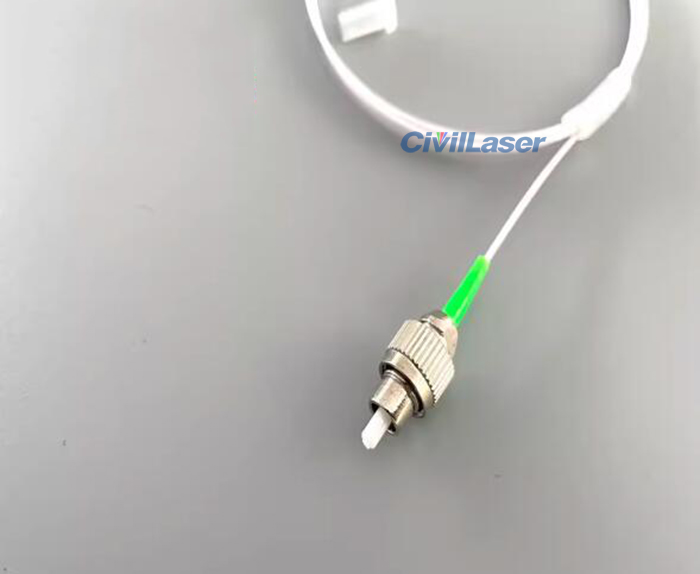

| Fiber Type |
-- |
Single-mode fiber |

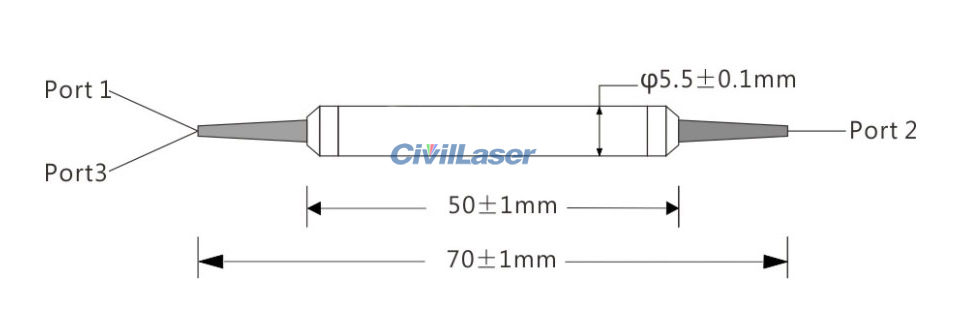

| Package Dimension |
mm |
Φ5.5 X L50 |
| Operating Temperature |
℃ |
-5~+50 |
| Storage Temperature |
℃ |
-40~+85 |
1. The temperature measurement environment is 25℃;
2. The above data does not include connectors. If connectors are added, the insertion loss will increase by 0.3dB and the return loss will decrease by 5dB. |
