EDFA-L-PA-45-SM-M20 L-Band PA EDFA SM Fiber Pre-Amplifier Module Type 45dB Small Signal Gain
The L-band erbium-doped fiber small-signal amplifier (PA amplifier) is specifically designed for amplifying weak optical signals with an input power range of -45 dBm to -25 dBm. This amplifier typically achieves a small-signal gain of 45 dB and features excellent low noise figure characteristics, effectively improving the system's detection sensitivity and response to weak optical signals. It is widely applicable to applications such as optical communication and fiber optic sensing where weak signal requirements are stringent.
[Features]
Wide wavelength range
High gain factor
Low noise
[Applications]
Fiber communication
Fiber sensing
Fiber laser
[Specification]
|
Parameters
|
Unit
|
Typical Value
|
Remarks
|
|
Model
|
--
|
EDFA-L-PA-45-SM-M20
|
|
|
Wavelength Range
|
nm
|
1570~1603
|
L-band
|
|
Input Power
|
dBm
|
-45~-25
|
|
|
Small Signal Gain Factor
|
dB
|
≥45
|
@-45dBm input power
|
|
Noise Figure
|
dB
|
≤4.5
|
|
|
Power Adjustment Range
|
--
|
10%~100%
|
APC mode
|
|
Pump Current Adjustment Range
|
--
|
0~Imax
|
ACC mode
|
|
Gain Wavelength Non-Uniformity
|
dB
|
≤1
|
|
|
Polarization Dependent Gain
|
dB
|
≤0.5
|
|
|
Polarization Mode Dispersion
|
ps
|
0.5
|
|
|
Input/Output Isolation
|
dB
|
>35
|
|
|
Input Return Loss
|
dB
|
≤-50
|
|
|
Signal Light Polarization State
|
--
|
Random
|
|
|
Optical Power Monitoring
|
--
|
Input, output optical power monitoring
|
|
|
Pigtail Fiber Type
|
--
|
SMF-28 single-mode fiber
|
|
|
Fiber Interface Type
|
--
|
FC/APC
|
|
|
Work Mode
|
--
|
ACC / APC
|
ACC: Automatic current control
APC: Automatic power control
|
*Note1:
ACC mode - automatic current control: The EDFA pumping operating current is set by the user and automatically locked by the EDFA to achieve a constant pumping current. When the input optical power fluctuates, the output power will also fluctuate accordingly, which is suitable for all EDFA models.
|
Electrical and environmental parameters
|
Module Type
|
|
Control Method
|
RS232 Serial communication
|
|
Communication Interface
|
DB9 Female
|
|
Power Supply
|
5V DC, <15W
|
|
Size
|
125(W)×150(D)×20(H)mm
|
|
Operating Temperature Range
|
-5~+35°C
|
|
Operating Humidity Range
|
0~70%
|

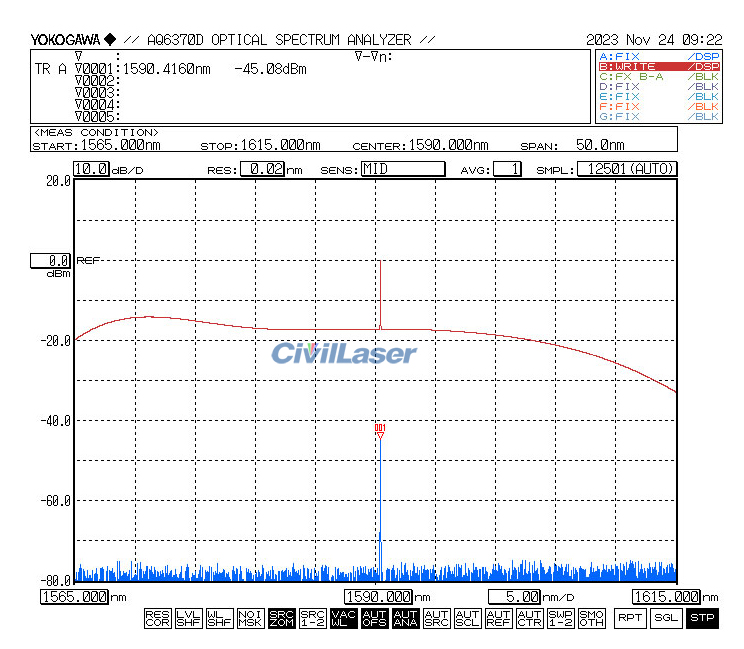

.jpg)
.jpg)
.jpg)
.jpg)
Latest Product Image(Updated on October 22, 2024):
.jpg)
.jpg)
.jpg)
.jpg)
