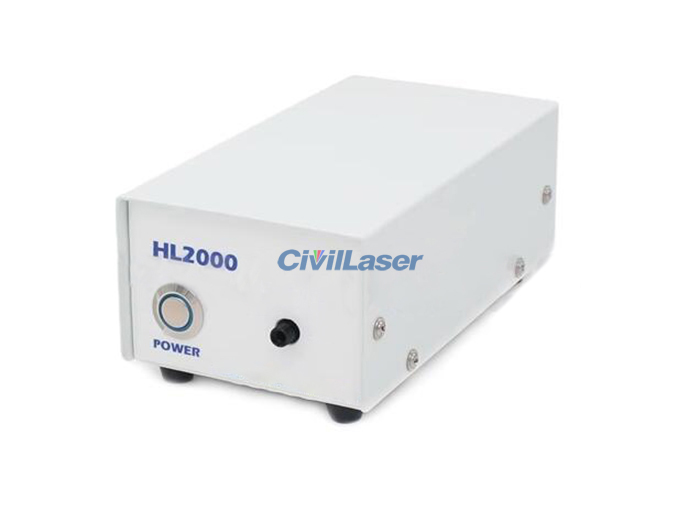

HL2000 10W/20W/100W Halogen Light Source Tungsten Halogen Lamp For Fiber Spectrometer Measurement

HL2000 10W/20W/100W Halogen Light Source Tungsten Halogen Lamp For Fiber Spectrometer Measurement

This halogen light source is a multi-purpose light source that uses imported special bulbs for optical instruments. It has high coupling efficiency, strong stability, and long service life. It is most suitable for VIS-NIR (360 nm-2500 nm). The feature of this light source is that it can be connected to the SMA905 connector and connected to the optical fiber with maximum energy coupling.

HL2000 is a product used for wide-band spectrum measurement and irradiance calibration. It has the characteristics of ultra-stable, long life and high color temperature, and is suitable for various spectrum applications.

HL2000-10W laboratory-grade spectrum-specific halogen bulb, 6000 hours ultra-long life, 2915K high color temperature, bulb drift <0.15%/hr, ensuring the stability of the light source. The bulb itself has a quartz focusing mirror, which greatly improves the coupling efficiency of the optical fiber.

In order to be used in measurement experiments with strong special absorption, our company can also provide customers with customized large-size optical fibers and optical fiber bundles as well as various optical measurement systems.

[Features]
Long lifetime
High stability
Wide wavelength range: 360~2500nm
It adopts air-cooled heat dissipation. Please do not block the air inlet and outlet during use.

[Apllications]
Film transmittance analysis
Absorbance analysis
Colorimetric analysis
Solar cell reflectivity analysis
Diffuse reflectance integrating sphere measurement

[Specification]
Product Name: Halogen Light Source
Model: HL2000-10W / HL2000-20W / HL2000-100W (Choose)
Wavelength Range: 350~2500 nm
Power: 10W / 20W / 100W
Humidity Range: 5~95%
Voltage Drift: < 0.01% per hour
Voltage Stability: < 5x10^-6 peak
Radiation Characteristics: 0.5 mm aperture, NA=0.22
Working Temperature: 5 ~ 35 ℃
Warm-up Time: 20 minutes

HL2000-10W:
