1560nm 1000MHz Repeat Frequency 50fs Femtosecond Pulse PM Fiber Laser Module FSPL-1560-50-100-1000-PM-M
The ultra-fast laser integrates the latest femtosecond laser technology, using high-performance rare earth fiber as the working medium, combined with high-precision dispersion compensation technology and active servo control system to achieve stable output of 1.5um band femtosecond pulse laser. It has a wide range of applications, such as optical frequency comb, super continuum spectrum, terahertz THz, etc., with its self-starting and long-term stable operation. It has the characteristics of extremely narrow laser pulse and high pulse peak optical power.
Parameters such as pulse width, power, and repetition rate can be customized.
[Features]
Pulse width minimum 50 fs
Wavelength 1560 nm
Pulse repetition frequency 200MHz~1GHz can be customized.
Full polarization structure
Self-starting and maintenance-free
High stability
[Application]
Optical Frequency Comb
Super continuum
Ultrafast laser phenomena
[Specifications]
| Parameter |
Unit |
Default Value |
Remarks |
| Model |
|
FSPL-1560-50-100-1000-PM-M |
|
| Wavelength |
nm |
1560 ±10 |
|
| Band Width |
nm |
20 |
|
| Pulse Width |
fs |
≤50 |
50~500fs customizable |
| Average Power |
mW |
≥100 |
1~200mW customizable |
| Power Instability |
|
< ±1% |
|
| Repeat Frequency |
MHz |
1000 |
200MHz~1GHz Customizable |
| Repetition Frequency Instability |
Hz |
<200 |
|
| Single Pulse Energy |
nJ |
>1 |
|
| Laser polarization state |
|
Linear polarization |
|
| Output Coupling Fiber Type |
|
PM1550 polarization-maintaining fiber |
|
| Fiber Interface |
|
FC/APC |
Slow axis alignment |
| Fiber Length |
m |
1 |
|
| Preheat Time |
min |
<1 |
|
Electrical and environmental parameters：
| Parameter |
Module Type |
| Control Mode |
Button |
| Synchronous Electrical Signal Interface |
SMA |
| Power Supply |
5V DC, <20W |

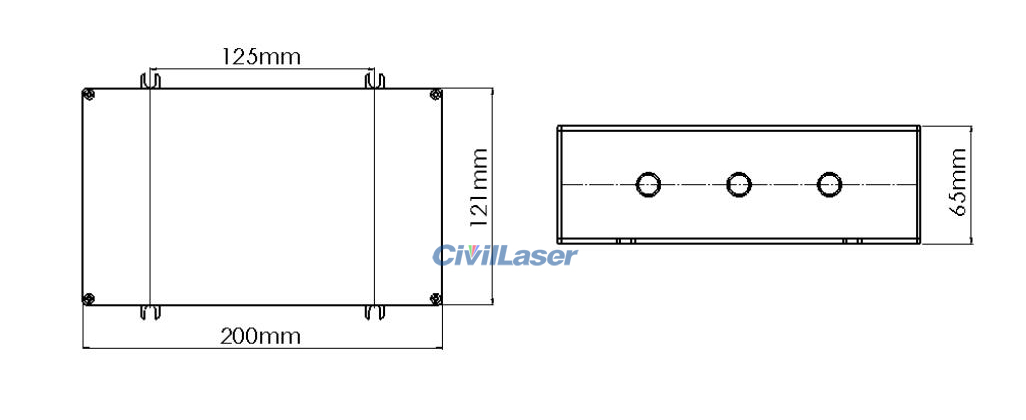

| Size |
200(W)×121(D)×65(H)mm |
| Operating Temperature |
5 ~ 35°C |
| Operating Humidity |
0~70% |
