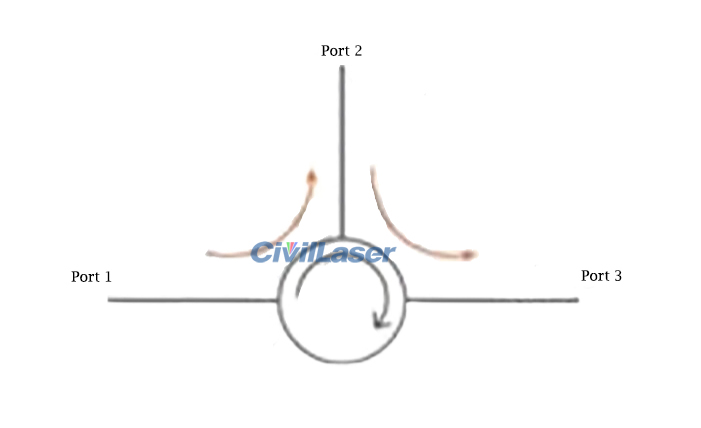

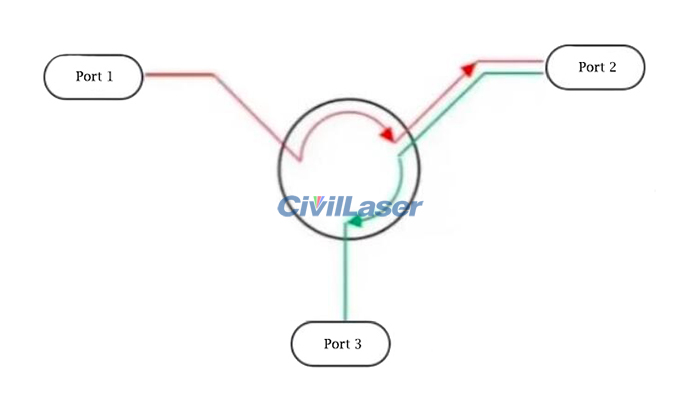

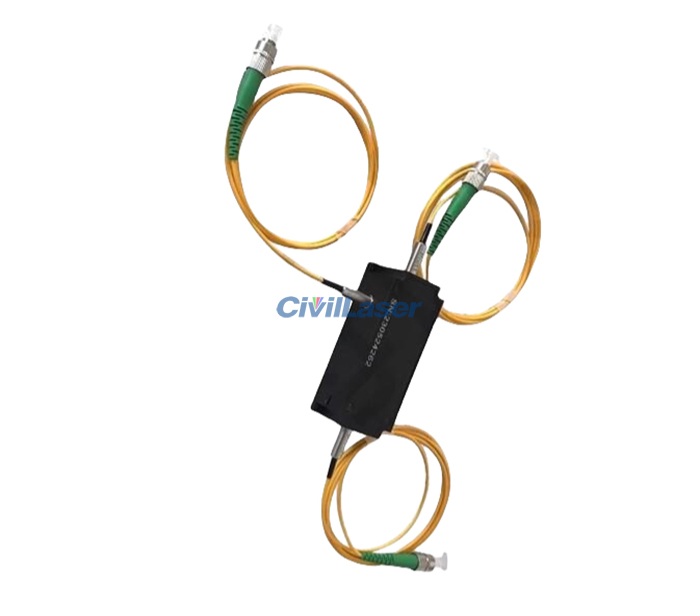

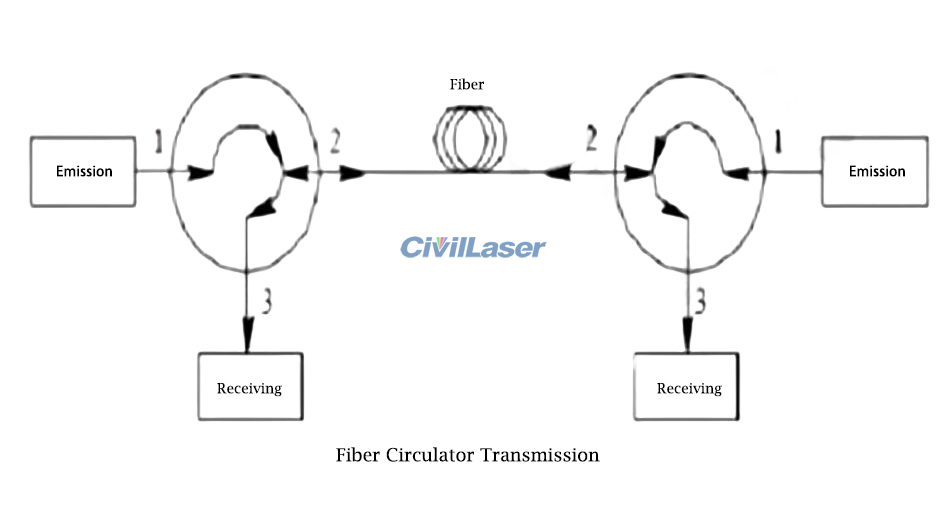

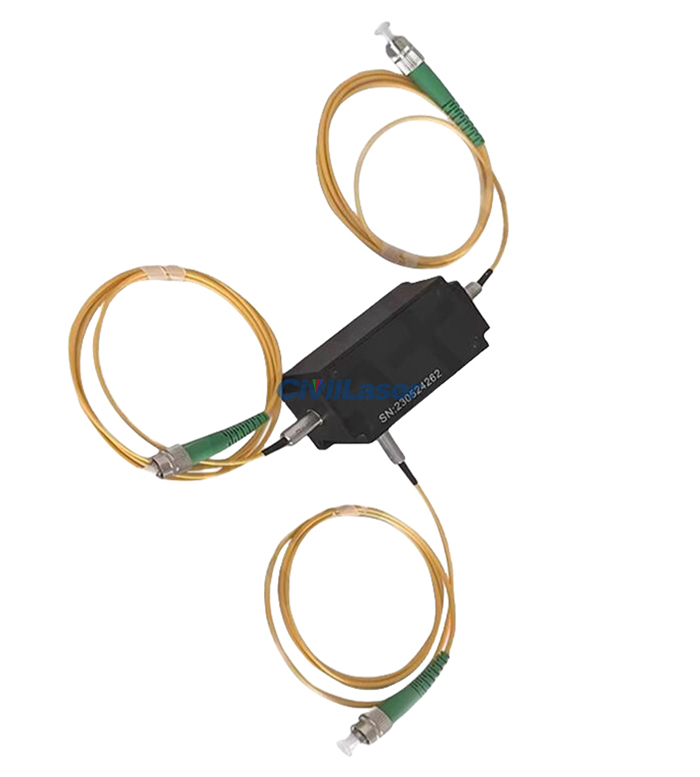

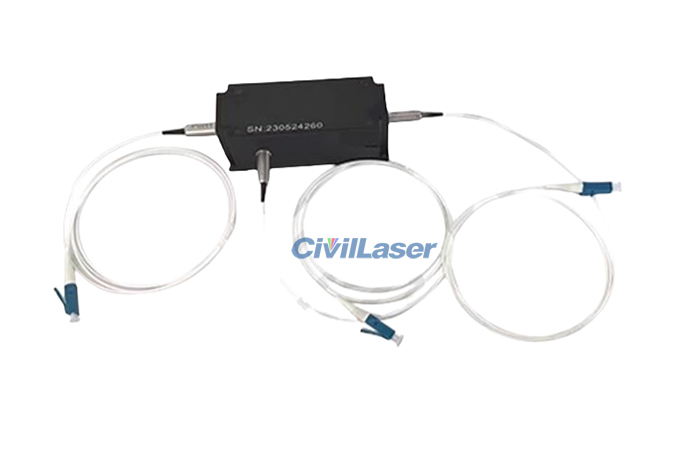

980nm 3-Ports SM/PM Fiber Optic Circulator Low Insertion Loss Circulator
[Features]
Low insertion loss
High return loss
High isolation
High stability and repeatability
[Specifications]
| Paramter |
Unit |
Value |
| Central Wavelength |
nm |
980 |
| Operating Wavelength Range |
nm |
±10 |
| Typical Peak Isolation |
dB |
25 |
| Min Isolation |
dB |
22 |
| Typical Insertion Loss |
dB |
1.0 |
| Max. Insertion Loss |
dB |
1.5 |
| Polarization Dependent Loss |
dB |
≤0.15 |
| Power Handling |
mW |
300 (Customizable) |
| Peak Power |
kW |
<10@ns pulse |
| Min. Return Loss |
dB |
45 |
| Fiber Type |
|
Hi1060/PM980 |
| Fiber Length |
m |
1 (Customizable) |

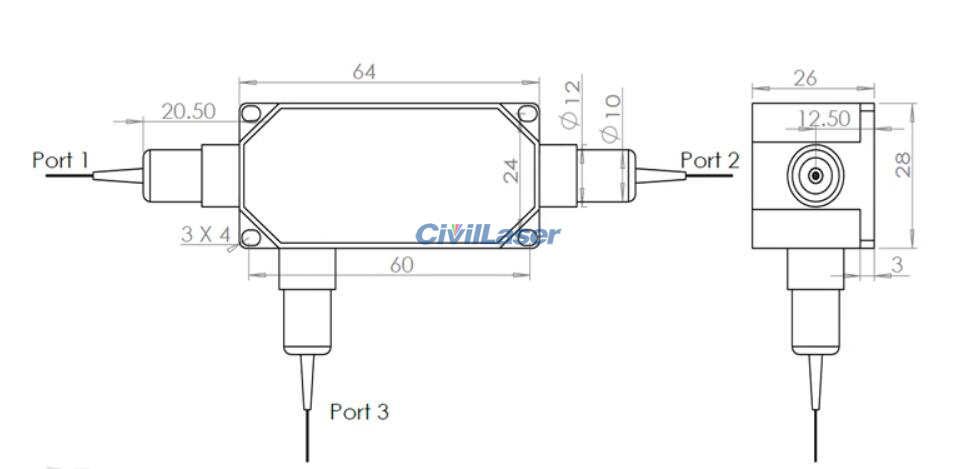

| Package Dimension |
mm |
64*28*26 |
| Operating Temperature |
℃ |
0 ~ +60 |
| Storage Temperature |
℃ |
-10 ~ +75 |
*The temperature measurement environment is 25℃;
*The above data does not include connectors. If connectors are added, the insertion loss will increase by 0.3dB and the return loss will decrease by 5dB.
Ordering Information
| Working Wavelength |
Power |
Power Type |
Fiber Type |
Pigtail Length |
Tail Sleeve Type |
Connector Type |
| 980=980nm |
00=300mW
01=1W
05=5W 10=10W |
P=Pulse
C=CW |
H1=Hi1060
PM = PM980
|
08=0.8m
10=1.0m
15=1.5m
S=Specify |
B=250um bare fiber
L=900um loose tube
S=Specify |
N=None
FP=FC/PC
FA=FC/APC
FU=FC/UPC |
