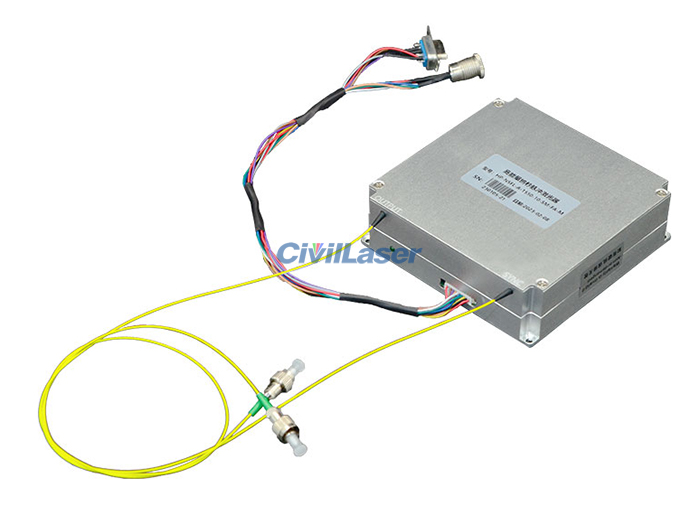

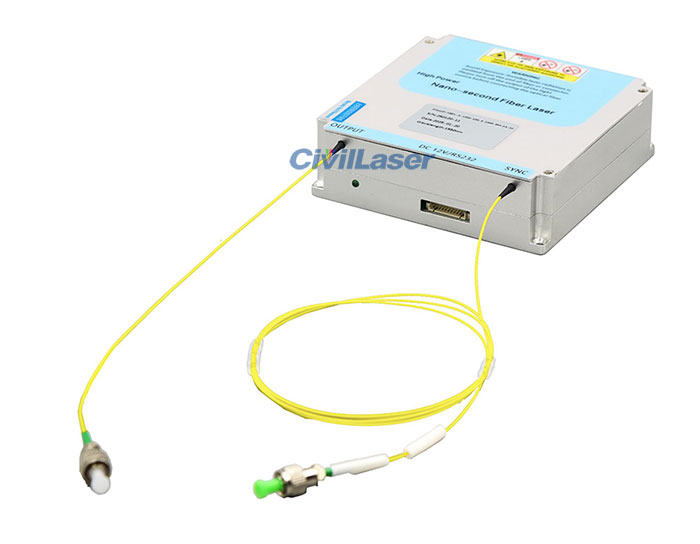

1550nm 10KW Peak Power High Power Nanosecond Pulse Ultra-fast Fiber Laser Module HP-NSFL-A-1550-3/200-10-1/3000-SM-FA-M1

$4,470.00  $3,999.00
Save: 11% off

Add to Cart:


1550nm 10KW Peak Power High Power Nanosecond Pulse Light Source Ultra-fast Fiber Laser Module Type HP-NSFL-A-1550-3/200-10-1/3000-SM-FA-M1

High-power nanosecond pulse fiber laser uses high-power gain fiber module, and cooperates with special drive and temperature control circuit to output high peak power and high energy pulse laser, with stable laser wavelength and power. It can be used for laser ranging radar, fiber optic sensing system, etc.

[Features]
Full fiber structure.
Pulse width, repetition frequency can be adjusted.
Pulse energy up to 100uJ.

[Applications]
Lidar
Laser ranging
Nonlinear optics

[Specification]

Parameters

Unit

Typical Value

Remarks

Model

--

HP-NSFL-A-1550-3/200-10-1/3000-SM-FA-M1



Central Wavelength

nm

1550



Wavelength Accuracy

nm

±1



Max. Single Pulse Energy

uJ

100

@Pulse frequency ≤ 10kHz, pulse width ≥ 10ns

Max. Output Peak Power

kW

10

@Pulse width 3ns, pulse frequency ≤10kHz

Max. Average Laser Power

W

2

@Pulse width ≥3ns, pulse frequency ≥100kHz

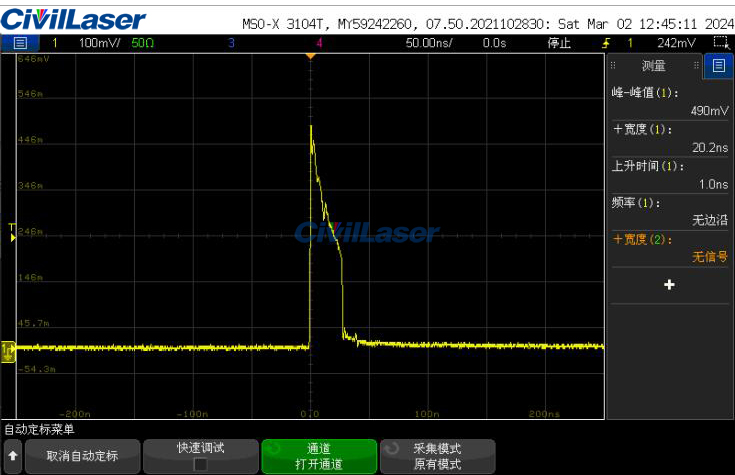

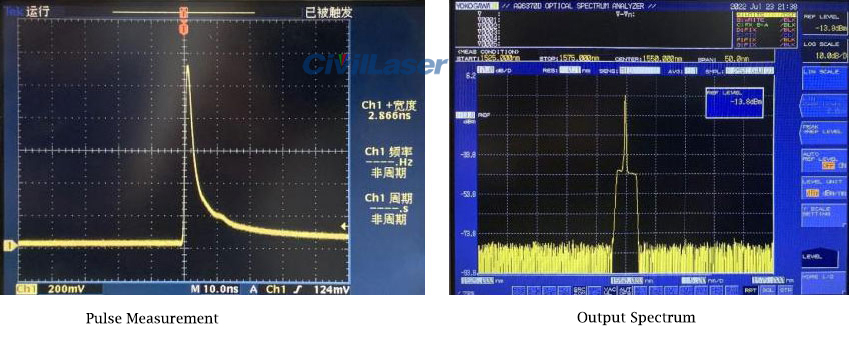

Pulse Width

ns

3~200ns adjustable

*1~3ns refers to the full width at half height, and >3ns refers to the full width at the bottom.

Repeat Frequency

kHz

1~3000 Adjustable



Beam Quality M²

--

≤1.1

Based on output collimator specifications.

Output Isolation

dB

≥30



Short-term Stability (15 minutes)

dB

≤ ±0.05

Equivalent ≤±1.2%

Long-term Stability (8 hours)

dB

≤ ±0.1

Equivalent ≤±2%

Output Laser Polarization State

--

Randomly



Pigtail Type

--

SMF-28 single-mode fiber

L=0.3m~1m

Pigtail Connector Type

--

FC/APC

According to pulse peak power.





Electrical and environmental parameters

Module Type

Control method

RS232 Serial communication

Communication interface

DB9 Female

Trigger Method

TTL,
internal/external trigger
(The default is internal trigger, which can be switched to external trigger through software.)

Power supply

12V DC, <30W

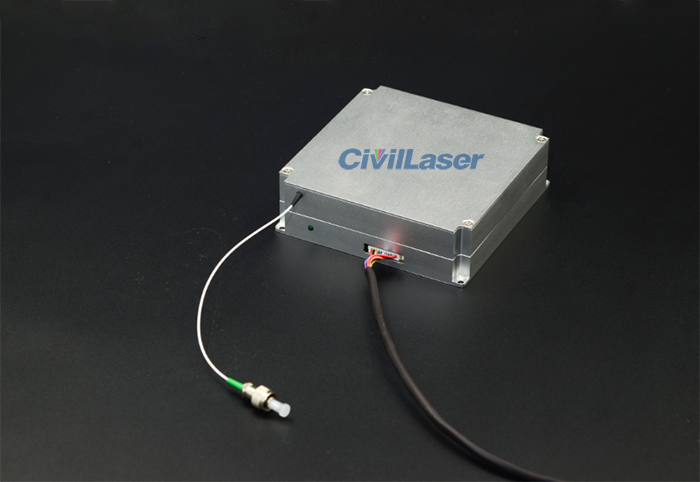

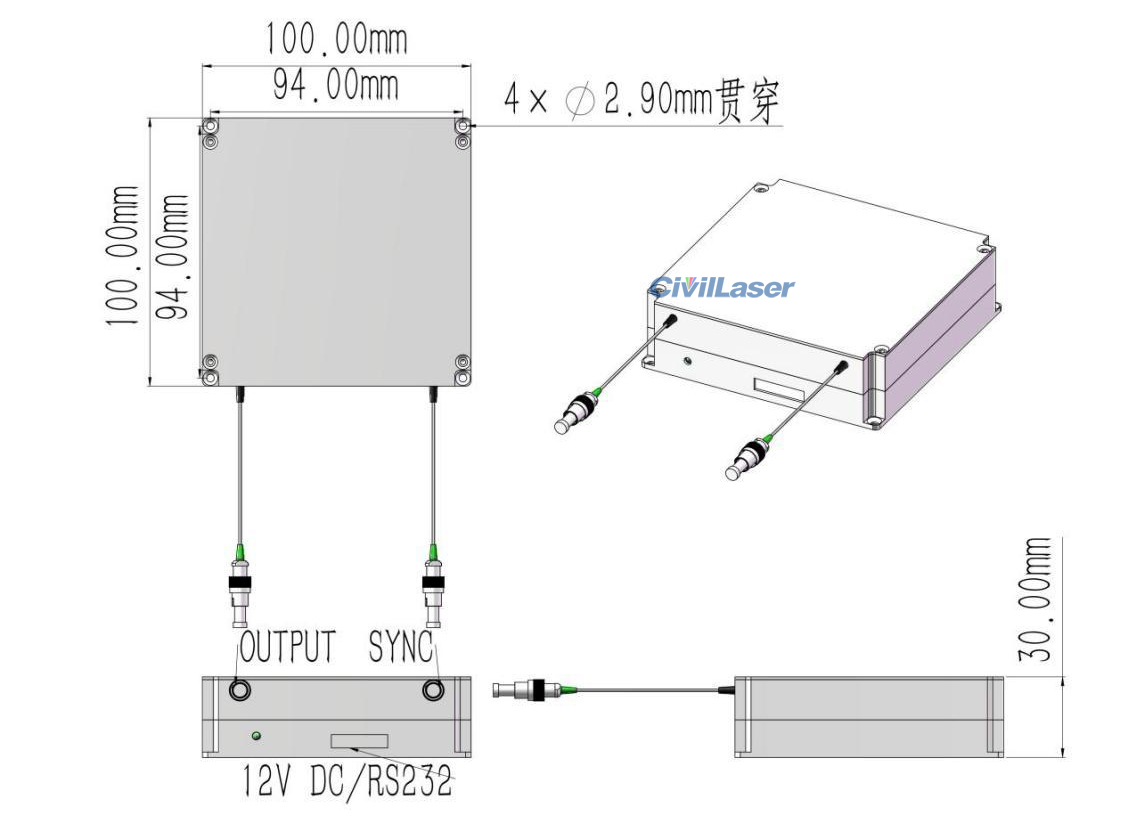

Size

100(W)×100(D)×30(H)mm

Operating temperature range

-5~+35°C
(-43~+65℃ can be customized.)

Operating humidity range

0~70%


Note-Trigger:
Trigger Method - External trigger: If it is an external trigger, it means that the customer needs to input a periodic clock signal to the laser source to trigger the laser light source from the outside in order to output a nanosecond periodic pulse signal.
