Union 635m 5mW Red Laser Diode U-LD-630543A LD For Barcode Scanning/Measuring TO-18 Φ5.6mm Packaged

Union 635m 5mW Red Laser Diode U-LD-630543A LD For Barcode Scanning/Measuring TO-18 Φ5.6mm Packaged

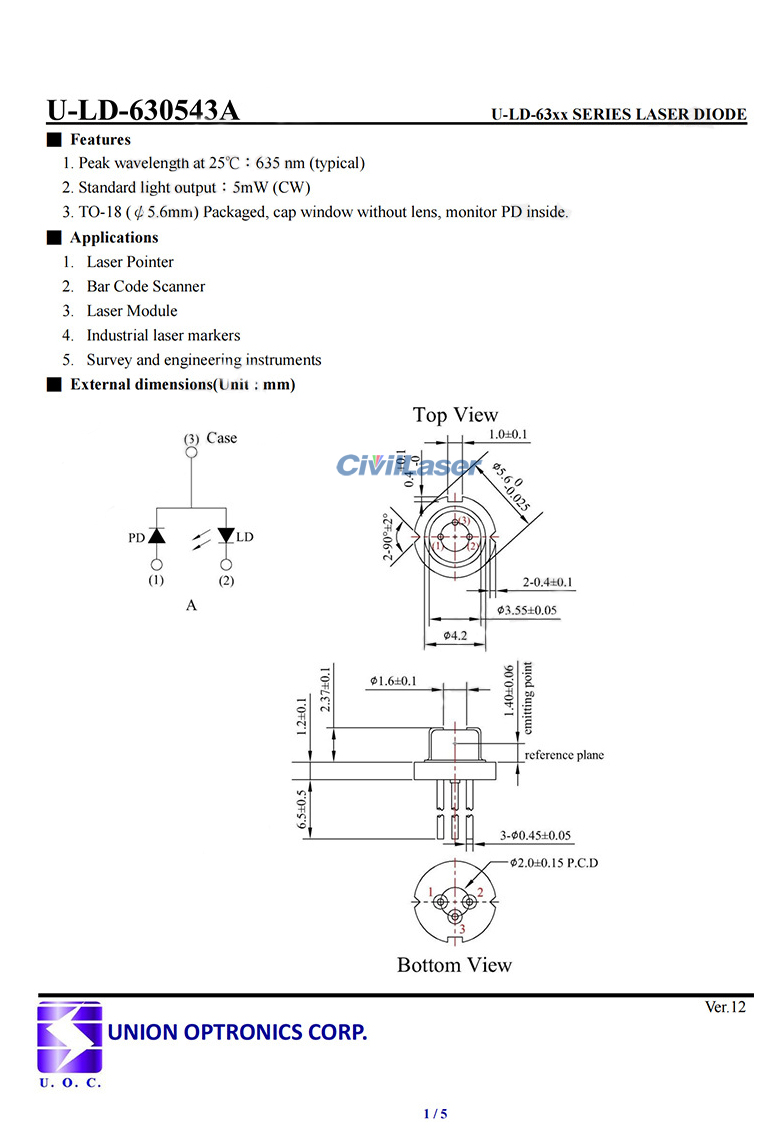

[Features]
Peak wavelength at 25℃: 635nm (typical)
Standard light output: 5mW (CW)
TO-18 Φ5.6mm packaged, cap window without lens, monitor PD inside.

[Applications]
Laser pointers
Bar code scanner
Laser module
Industrial laser markers
Survey and engineering instruments

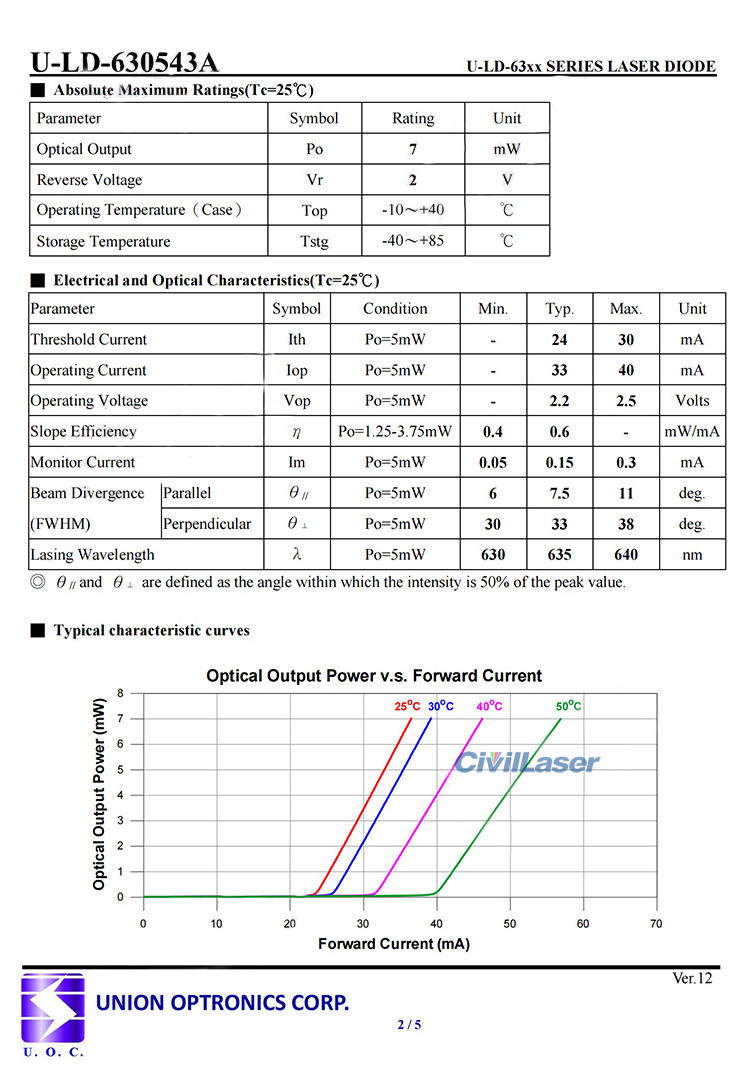

[Specification]
Product Name: Laser diode
Model: U-LD-630543A
Wavelength: 635nm
Output Power: 5mW
Package Type: TO-18 Φ5.6mm
Operating Temperature: -10℃~40℃
Storage Temperature: -40℃~+85℃
