488nm 30mW SM Fiber Laser Source Blue Lab Laser System Module Type FL-488-30-SM-M20

The light source adopts F-P type semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser. It has a full range of wavelengths, stable output power, single-mode fiber output, and excellent spot quality (LP01 mode). The device has the characteristics of rich wavelength selection, adjustable power, narrow spectral line width, convenient operation, and high safety. It can be widely used in the fields of fiber optic sensing, optical device testing, semiconductor testing, machine vision testing, etc.

[Features]
1. Excellent spot quality
2. Spectral and power stability
3. Module or desktop package

 [Applications]
1. Light spot indication
2. Imaging
3. Device testing

[Specifications]

Parameters

Unit

Typical value

Remarks

Model

--

FL-488-30-SM-M20



Working Wavelength

nm

488



Wavelength Accuracy

nm

±5



Working Mode

--

CW

Continuous light

Output Power

mW

30

Customizable

Power Adjustment Range

--

10~100%



Short-term Stability (15 minutes)

dB

≤ ±0.02

Equivalent≤±0.5%

Long-term Stability (8 hours)

dB

≤ ±0.05

Equivalent≤±1.2%

Pigtail Type

--

Corning 460HP SM fiber



Pigtail Connector Type

--

FC/APC







Electrical and Environmental Parameters

Desktop Type

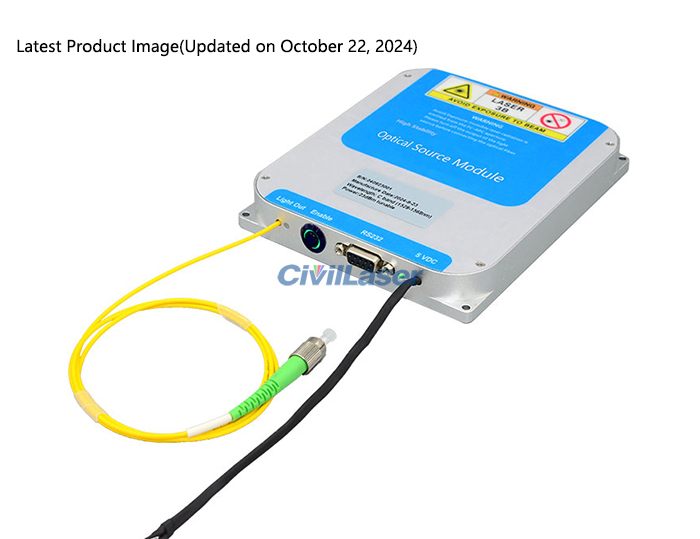

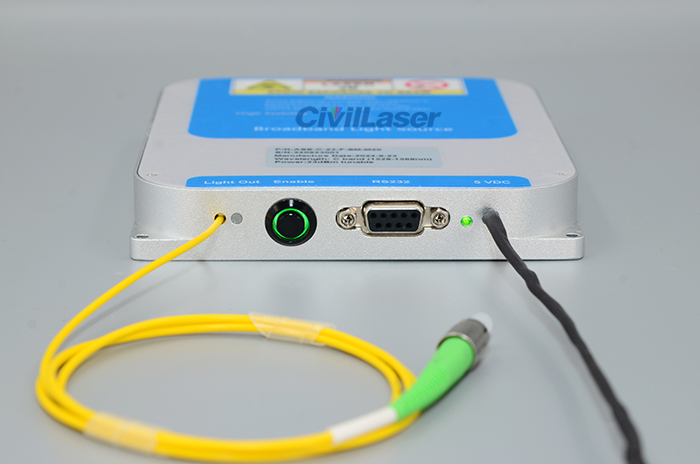

Module Type
(Current product)

Control Method

Touch screen/RS232 serial communication

RS232 serial communication

Communication Interface

DB9 Female
(Default not include)

DB9 Female

Power Supply

AC 100~240V

DC 5V, 3A

Size

255(W)×285(D)×1115(H)mm

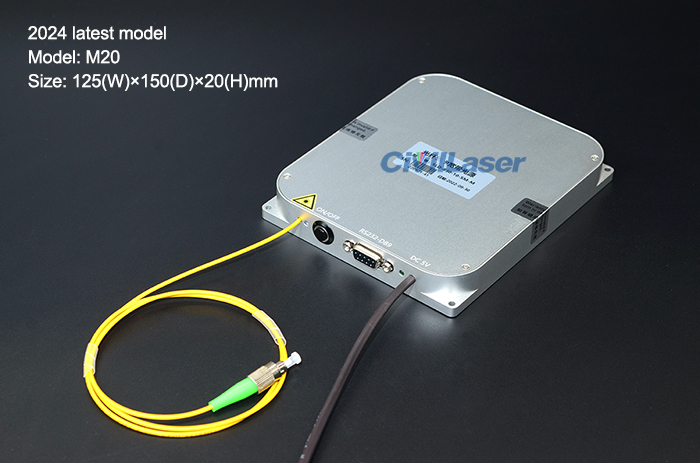

125(W)×150(D)×20(H)mm

Operating Temperature Range

-5~+35°C

Operating Humidity Range

0~70%
