Home :: Laser Module(Dot/Line/Cross..) :: Blue Laser Module Line :: 450nm 2500mW Blue Laser Diode Module Line High Power Laser Focus Adjustable

450nm 2500mW Blue Laser Diode Module Line High Power Laser Focus Adjustable

Blue Laser Module Line

Product 13/30

Return to the Product List

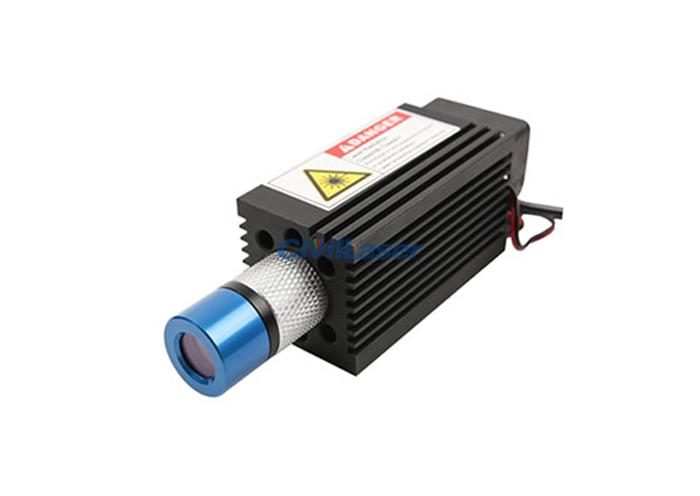

450nm 2500mW Blue Laser Diode Module Line High Power Laser Focus Adjustable

larger image

Starting at: $267.00

Please Choose:

Power Supply

Add to Cart:

450nm 2500mW Blue Laser Diode Module Line High Power Laser Focus Adjustable

[Specification]
Product Name: Laser module
Wavelength: 450nm
Output Power: 2500mW
Laser Safety: Class ⅢB
Working Mode: CW
Laser Shape: Line
Line Width: Adjustable
Divergence Angle: 110 Deg
Lens Type: Glass
Operating Voltage: 12-24V
Operating Current: <2A
Housing Material: Environmental Aluminum Parts
Driver Circuit: ACC
Size: 33x33x75mm
Operating Temperature: -10℃~+60℃
Storage Temperature: -40℃~+85℃
Mean Time to Failure: >8000 hrs
