638nm 10W/520nm 8W/455nm 6W 24W High Power RGB Laser White Fiber Coupled Laser Module 200μm Special Lighting Pure Laser

RGB Pigtailed Laser(MM)

Product 1/2

Return to the Product List

638nm 10W/520nm 8W/455nm 6W 24W High Power RGB Laser White Fiber Coupled Laser Module 200μm Special Lighting Pure Laser

larger image

$6,018.00

Add to Cart:

638nm 10W/520nm 8W/455nm 6W 24W High Power RGB Laser White Fiber Coupled Laser Module 200μm Special Lighting Pure Laser

[Features]
High output power: 24W
Small fiber core diameter: 200μm

[Applications]
Dazzle
Laser pointing
Laser lighting

[Specification]

Typical Product Specifications(25℃)		Symbol	Unit	Min.	Typ.	Max.
Wavelength-1 638nm	Output Power	Po	W	10
	Central Wavelength	λc	nm	638+/-8
	Operating Current	Iop	A		1.5	1.6
	Threshold Current	Ith	A	0.4	0.5
	Operating Voltage ①	Vop	V		14.4	16.8
	Slope Efficiency	η	W/A		10
Wavelength-2 520nm	Output Power	Po	W	8
	Central Wavelength	λc	nm	525+/-7
	Operating Current	Iop	A		2	2.3
	Threshold Current	Ith	A	0.2	0.3
	Operating Voltage ②	Vop	V		18.5	22
	Slope Efficiency	η	W/A		4.2
Wavelength-3 455nm	Output Power	Po	W	6
	Central Wavelength	λc	nm	455+/-7
	Operating Current	Iop	A		3	3.5
	Threshold Current	Ith	A	0.4	0.5
	Operating Voltage ③	Vop	V		8.5	10
	Slope Efficiency	η	W/A		3
Fiber Parameters	Fiber Core Diameter	Dcore	μm		200
	Cladding Diameter	Dclad	μm		220
	Coating Diameter	Dbuf	μm		300
	Numerical Aperture	NA			0.22
	Fiber Length	Lf	m		2
	Fiber Sheath Diameter/Length		mm	3mm/2m
	Bending Radius		mm	100
	Connector			SMA905
Other Parameter	ESD	Vesd	V			500
	Storage Temperature ②	Tst	℃	-40		80
	Soldering Temperature	Tls	℃			260
	Soldering Time	t	sec			10
	Operating Temperature ③	Top	℃	-10		35
	Relative Humidity	RH	%	15		75
Note	①: There are a total of 12 red semiconductor laser tubes inside the laser, and every 6 of them are connected in series to form 1 channel, 2 strings in total. ②: There are 8 red light semiconductor laser tubes inside the laser, and every 4 are connected in series to form 1 channel, 2 strings in total. ③: There are 2 red semiconductor laser tubes inside the laser, which are connected in series to form 1 circuit.

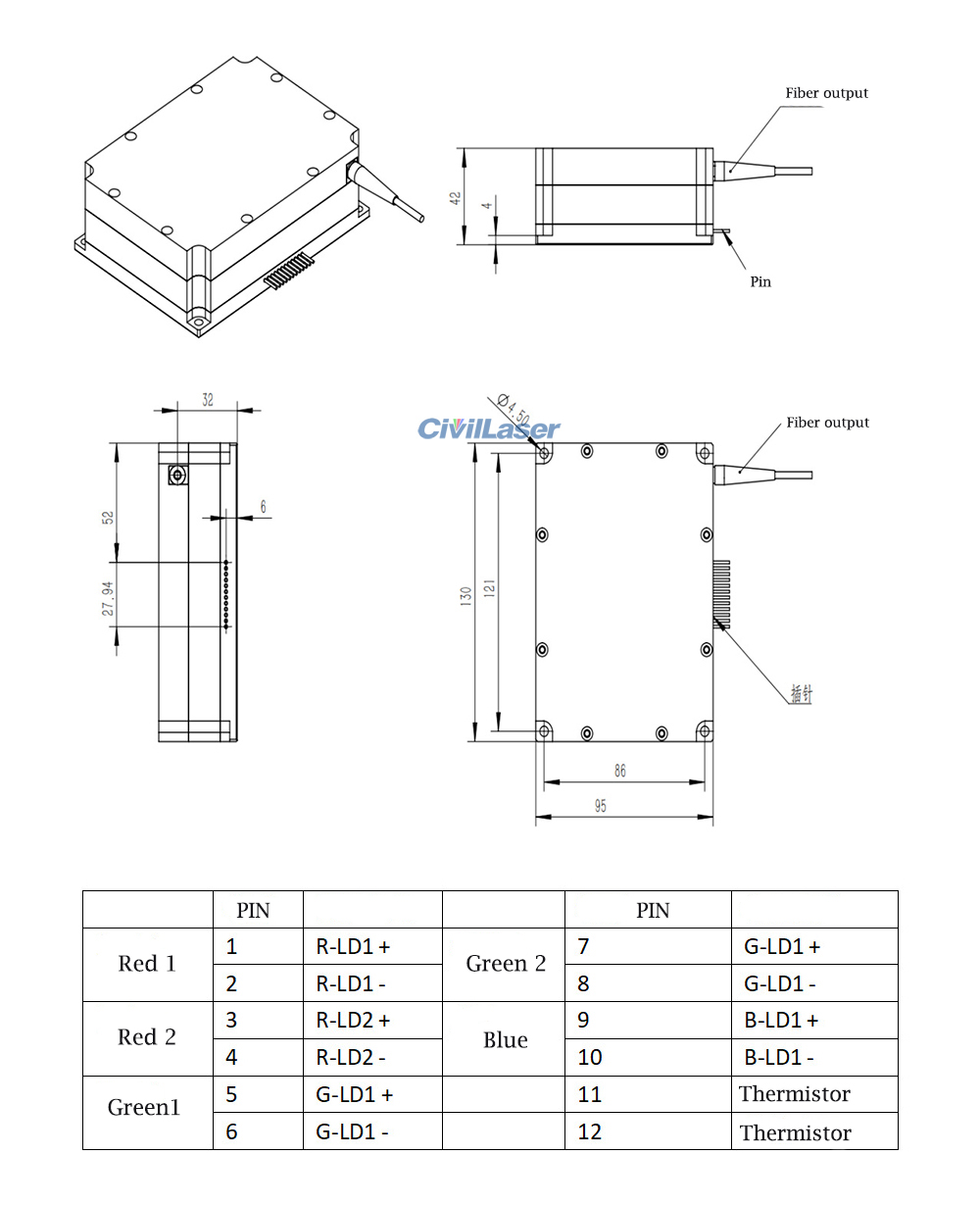

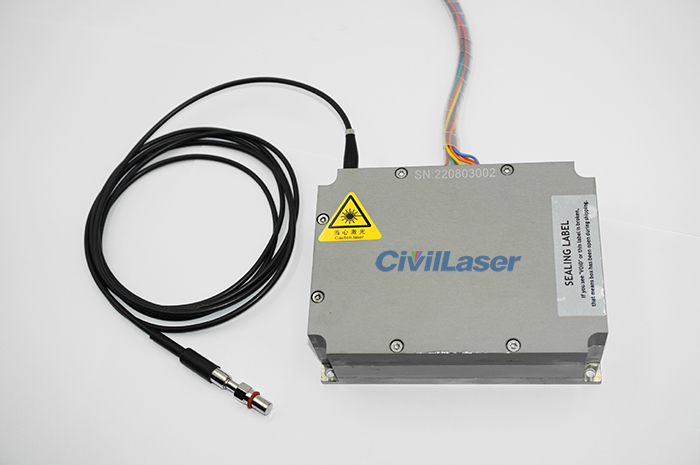

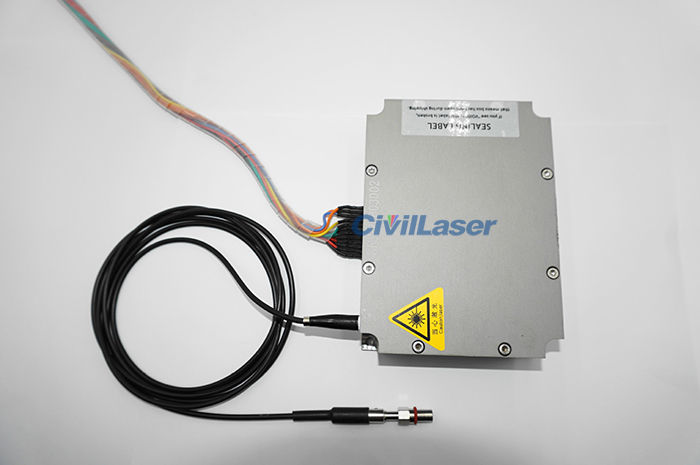

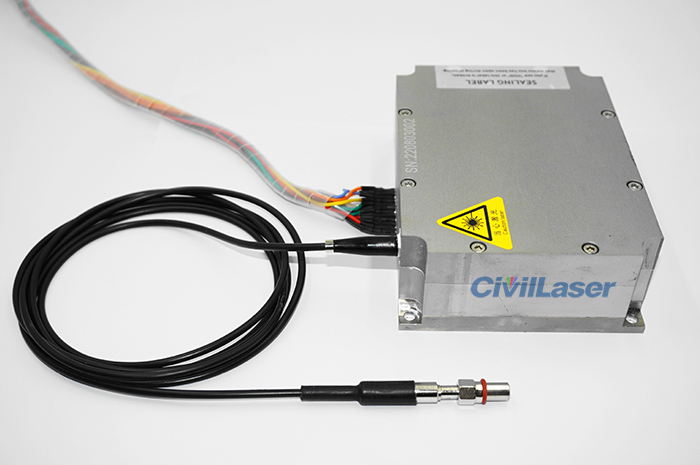

RGB white fiber coupled laser

RGB white fiber coupled laser

RGB white fiber coupled laser

RGB white fiber coupled laser

RGB white fiber coupled laser

RGB white fiber coupled laser
