Red/Green/Blue Laser Module Crosshair Positioning Light 4.47°~120° Divergence Angle Can Be Customized

Red/Green/Blue RGB Laser Module Crosshair Positioning Light 4.47°~120° Divergence Angle Can Be Customized

[Feaures]
1. Ultra-high brightness, indoor and outdoor general.
2. The light is clear and bright, soft and not dazzling.

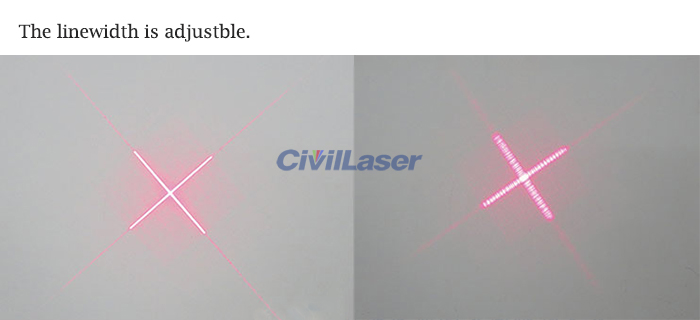

3. The thickness of the light is adjustable.
4. The shell is made of aviation aluminum-plated insulating paint that can not only fully dissipate heat but also resist shock, drop, and static electricity.
5. Imported laser diodes emit light directly with exceptional stability.
6. Intelligent driver board with imported IC, wide range power supply.
7. High temperature resistance, corrosion resistance

[Specifications]
Product Name: Laser Module

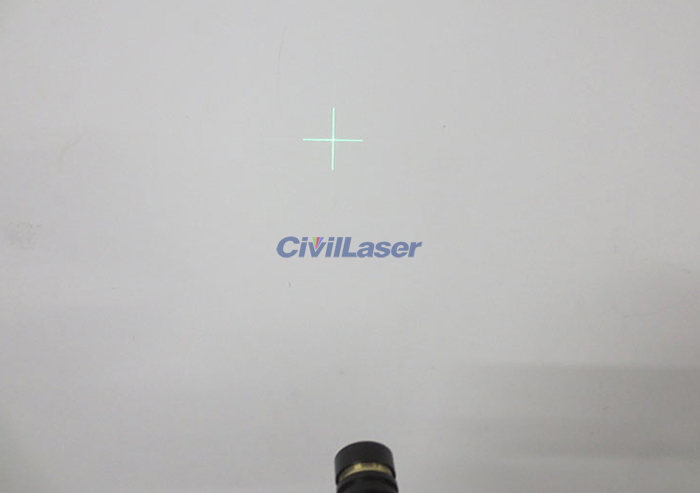

Laser Color: Red / Green /Blue (Choose)
Divergence Angle: 4.47°/9.95°/10°/10.2°/12.22°/68.4°/93.38°/115°/120° (Choose)
LD Power: 100mW
Working Voltage: DC 2.8V~5.2V
Working Current: <500mA
Dimensions: 16*70mm
Optical Lens: Grating sheet
Installation Height: 0~5 meters

The length of the crosshair of the red laser module at 0.5 meters:
Angle: 4.47°    Length: 39mm
Angle: 9.95°    Length: 87mm
Angle: 10°       Length: 87mm
Angle: 10.2°    Length: 90mm

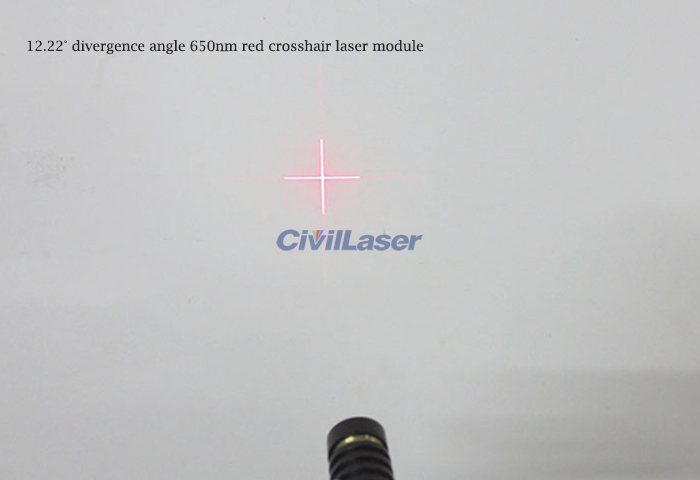

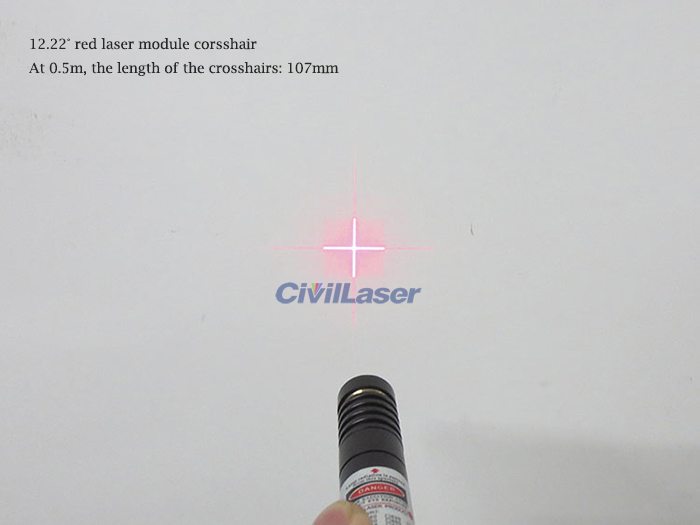

Angle: 12.22°  Length: 107mm
Angle: 68.4°    Length: 680mm
Angle: 93.38°  Length: 1061mm
Angle: 115°     Length: 1570mm
Angle: 120°     Length: 1732mm

[Package Include]
1 x Laser module
1 x Power adapter
1 x Laser module holder
