400~1100nm Laser Receiver DC5~12V Photoelectric Switch Chamber Security

$7.00

Add to Cart:
Min:  10

400~1100nm Laser Receiver DC5~12V Photoelectric Switch Chamber Security

CivilLaser can develop, design and process laser modules and optical systems according to customers' special requirements. We can also provide OEM and ODM for laser system applications and special purposes, accept bulk orders, welcome to contact us!

[Features]
Small size
Sensitive response
Long receiving distance

[Applications]
Photoelectric detection, security and anti-theft detection, laser counting, laser maze, etc.

[Specification]
Product Name: Laser receiver
Receiving Wavelength Range: 400~1100nm
Operating Voltage: DC5~12V
Operating Current: <50mA
Control Mode: Relay
Relay Control Current: <3A
Wire length: 180mm±5mm
Size: 36.3*26.3*186.6mm

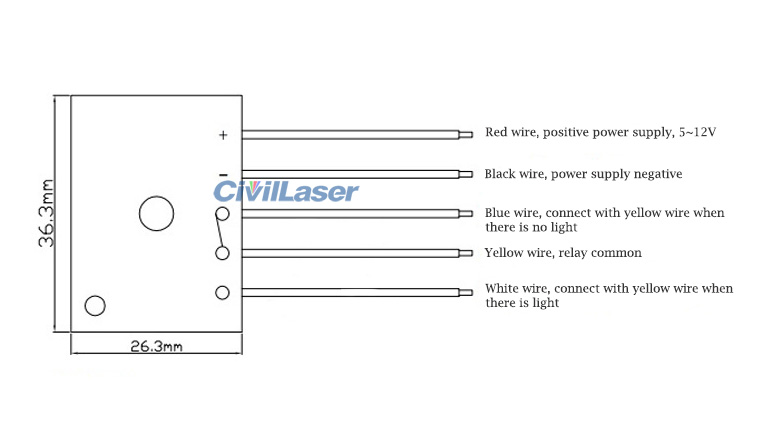

How to use:
Shine the laser on the light receiving hole in the center of the receiver, the internal relay is closed, and the indicator light goes out at the same time.

Red wire, Power supply positive pole, 5~12V.
Black wire, power supply negative.
Blue wire, connect with yellow wire when there is no light.
Yellow wire, relay common.
White wire, connect with yellow wire when there is light.

Note:
When using in a strong light environment, try to avoid aiming the receiver at stray light to avoid interference.

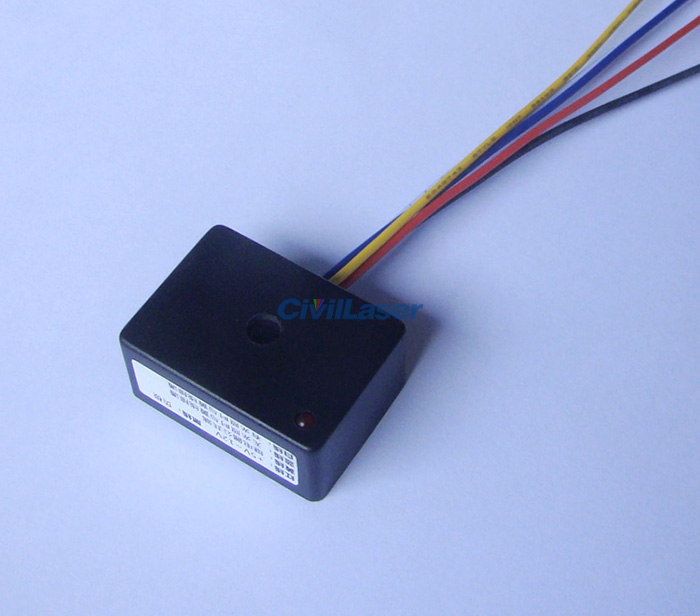

Laser receiver

Laser receiver
