850nm 20mw~50mW Dot Infrared laser module Positioning launch tube

Use of red light modules:
1 can be used for positioning by sight;
2 can be used for laser testing tools;
3 can be used for concentric positioning;
4 can be used for medical equipment positioning;
5 can be used for the production of signal equipment;

SPECIFICATIONS:
Name:  850nm/50mW Dot Infrared laser module
Output Wavelength: 850 ±5nm
Output Power: 20mw/30mw/40mw/50mw
Laser Shape: Dot
Range: 500~10000 meters
Surface treatment / color: Black(Oxide black)
Laser type: Invisible laser
Shape/dimension: minimal beam diameter< Φ1.0mm, < Φ25mm at 10m distance(adjustable focus)
Circuit control: APC
Size: Φ10x30mm
Operating Voltage:  DC=3V~5V
Operating current: I<120mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -20°C~+90°C
Tail wire: 28# Red and black line, about 120mm long
Warranty: 12 Months Factory warranty

Package includes:
1* IR laser module

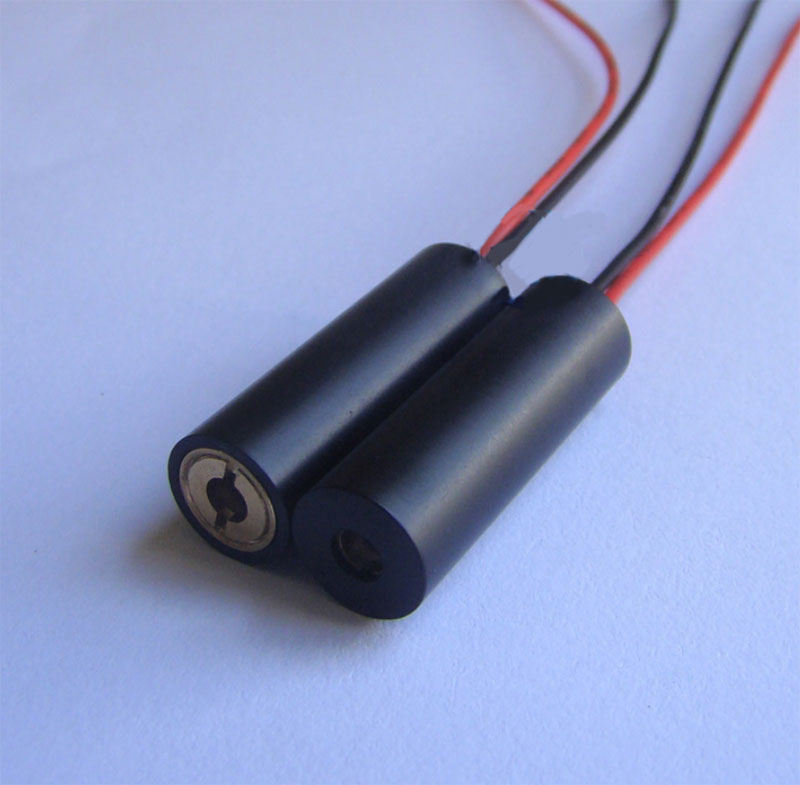

850nm dot laser module IR laser

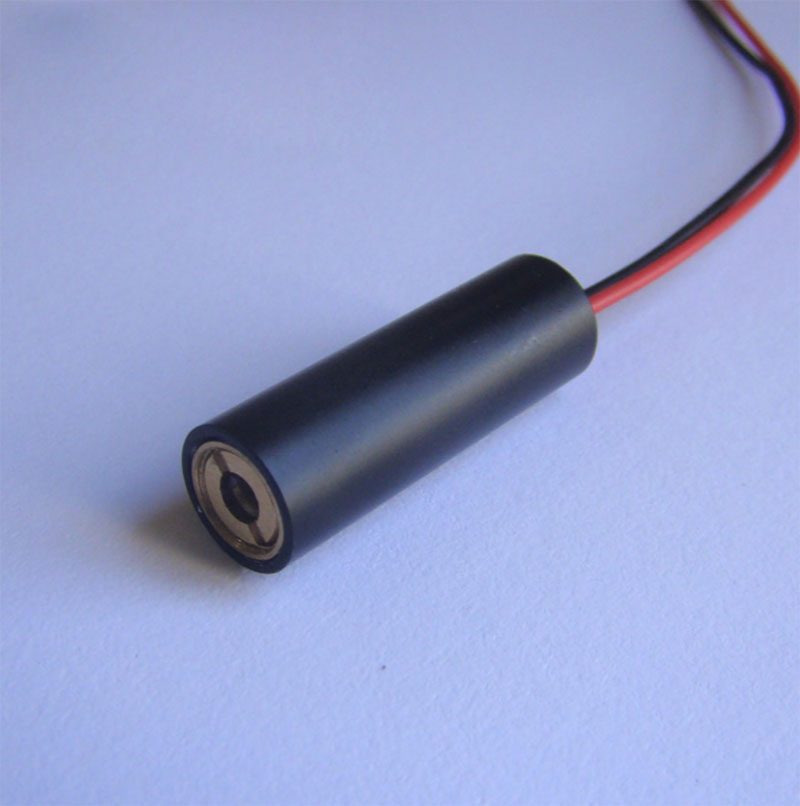

850nm dot laser module IR laser

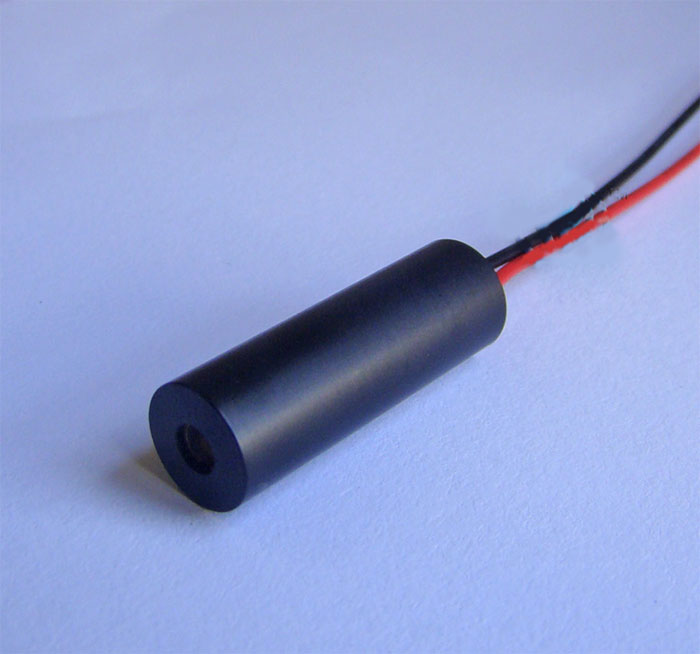

850nm dot laser module IR laser

850nm dot laser module IR laser
