532nm 1~150mW 0.1nm Linewidth MM Fiber Coupled Output Laser Narrow Linewidth Laser

532nm 1~150mW 0.1nm Linewidth MM Fiber Coupled Output Laser Narrow Linewidth Laser

532nm Raman laser has the characteristics of stable spectrum and small line width.It's Very suitable for Raman and sensing applications.This kind of laser is an optical coupling of 532nm Raman laser,fiber output, in use can be more convenient for the laser spectrometer and integration.

Notes:
This is a custom product,  if you need other output power, or have special requirements, please contact us.

Lead Time: About 3~4 weeks

[Features]

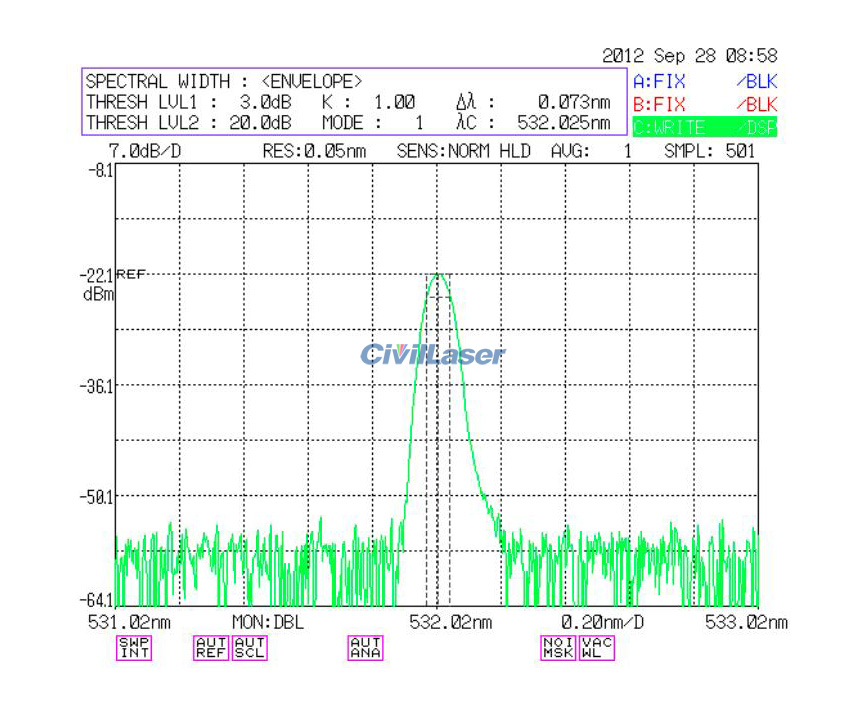

Spectral linewidth: <0.1nm
Spectral stability: <0.005nm/℃

[Application]
Raman Spectroscopy Analysis

[Specifications]
Product Name: Narrow Linewidth fiber coupled laser
Wavelength: 532nm±0.5nm
Output Power: 150mW (@ Fiber output side, and 0~max power adjustable)
Fiber Connector: FC/PC or SMA905 (Choose)
Fiber Type: Multi-mode fiber
Fiber Length: 1 meter
Fiber Diameter: 100μm
Fiber Numerical Aperture: NA=0.22
Output Stability (RMS): <3% over 2 hours
Modulation: 0~10KHz TTL
Operating Voltage: 90~245V
Operating Temperature: 0°C-40°C
Storage Temperature:  -20°C-65°C
Warming Time: <5 minutes
Service Life: >5000 hours
