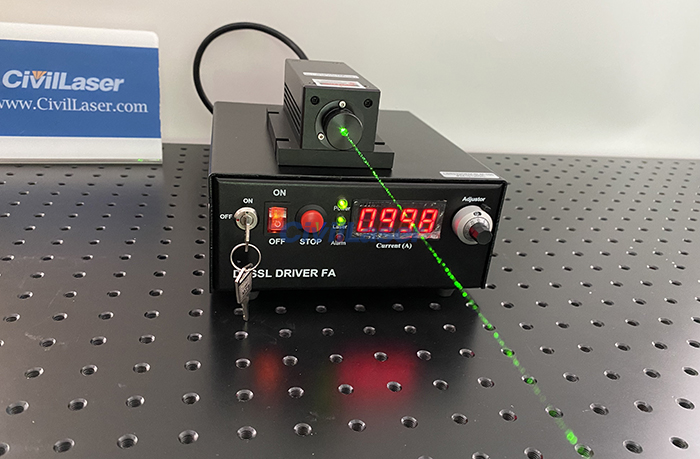

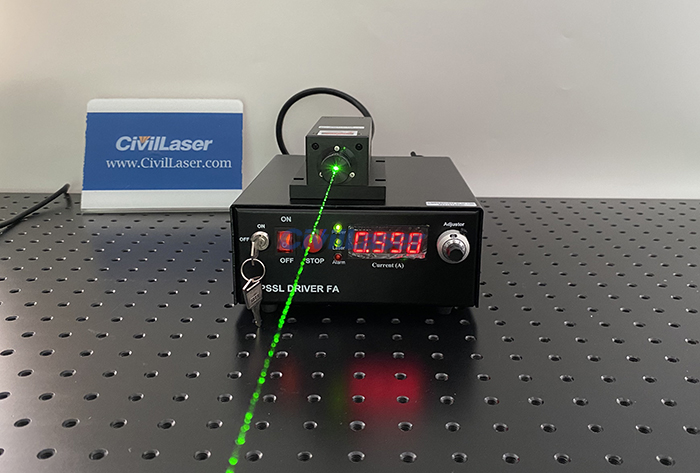

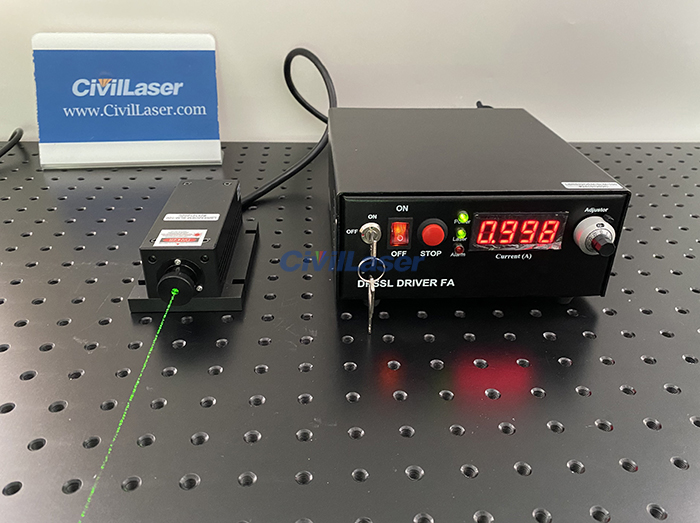

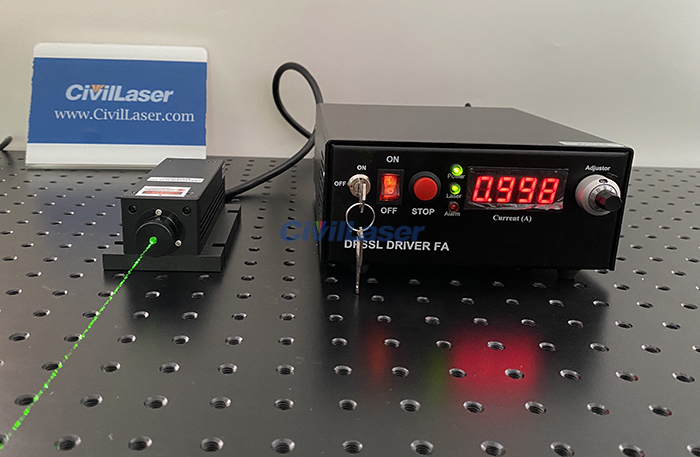

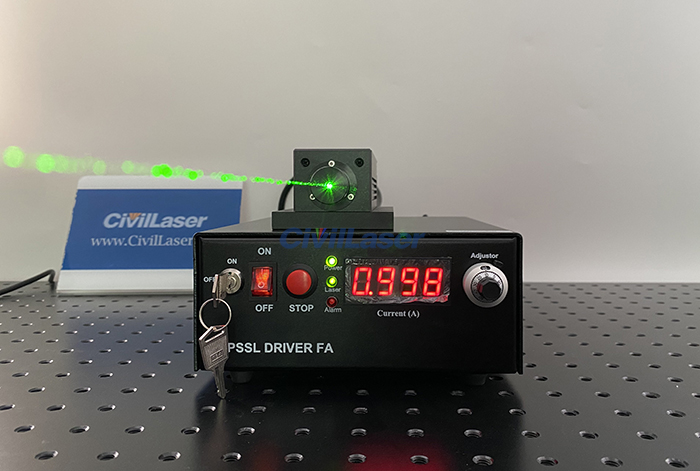

532nm 100mW Single Mode DPSS TEM00 Laser Narrow Spectrum Linewidth<0.00001 nm

$4,966.00

Add to Cart:


532nm 100mW Single Mode DPSS TEM00 Laser Narrow Spectrum Linewidth<0.00001 nm

[Features]
Compact size
Collimated straight beam
Adjustible focuse
Easy use & maintenance free
Longlife operation
High efficiency
High reliability

[Applications]
Laser show
Cell sorting
Optical instrument
Specrum analysis
Laser printing
Chip inspection
Physics experiment

[Specification]
Product Name: 532nm SLM laser
Lead Time: 4~5 weeks
Wavelength: 532nm
Output Power: 100mW
Spatial Mode: TEM00
Longitudinal Mode: Single
Operation Mode: CW
Power stability(nms,over 4 hours): <5%
Polarization Direction: Vertical
Warm-up Time: <15 minutes
M² Factor: <1.2
Beam Divergence(Full angle): <1.2mrad
Beam Diameter at the Aperture: ~2.0mm
Beam Height from Base Plate: Near 24.8mm
Spectral Linewidth: <0.00001nm
Polarization Ratio: >100:1(90 degree)
Pointing Stability after Warm-up: <0.05mrad
Noise of Amplitude (nms,1~20MHZ): <1%
Coherent Length: ≥60m
Operating Temperature: 15~35℃
Expected lifetime: 10000 hrs
Warranty: 1 year
Modulation: No

[Package Include]
1 x 532nm laser head
1 x Power supply
