455nm 20w True power blue laser engraving module 4IN1 Cutting wood/Carved metal

$785.00

Please Choose:



Add to Cart:


455nm 20w True power blue laser engraving module 4IN1 Cutting wood/Carved metal


Advantage:

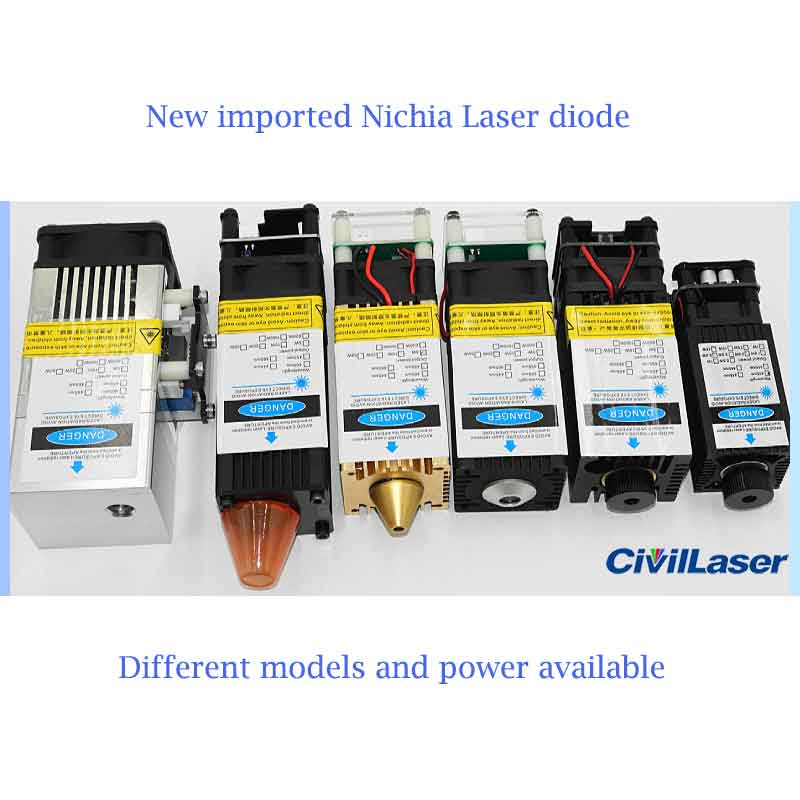

1, The new imported laser diode and high temperature resistant glass lens make the laser more durable and reliable;

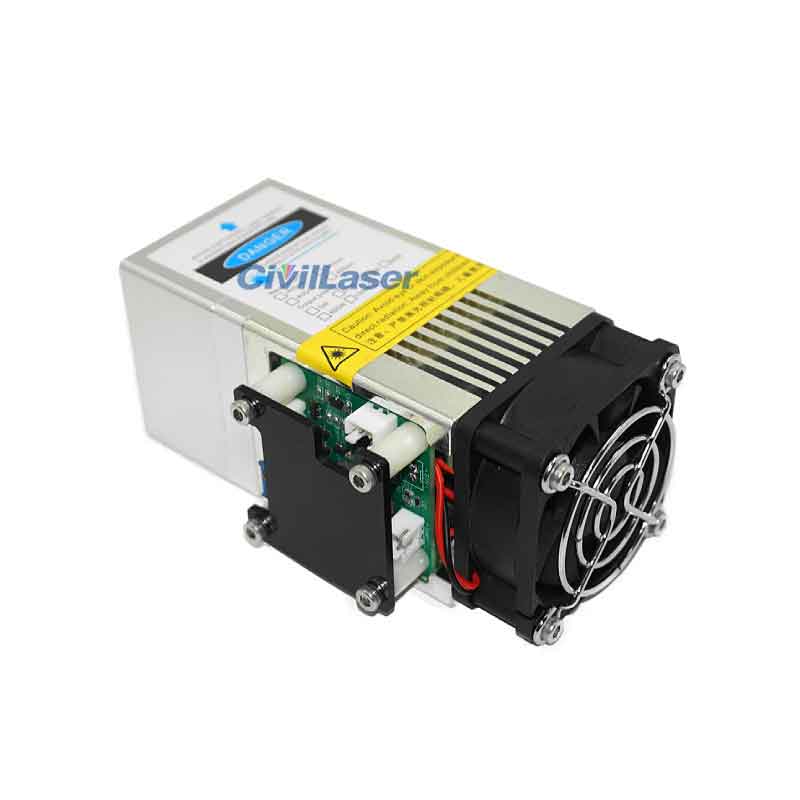

2, Industrial heat exhaust fan, environment-friendly material with low power consumption and low noise;

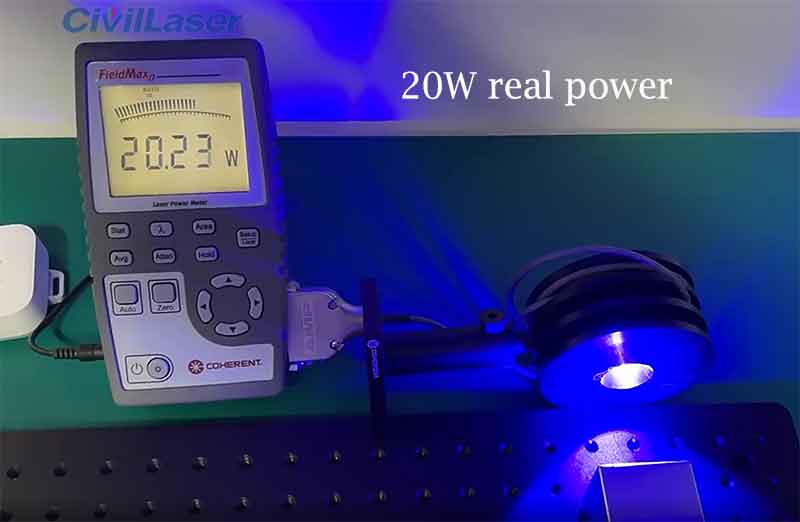

3, 20W true output power, fixed focus 0.06mm, long focal length 5mm,
4, The LD adopts a multi lens compression scheme without removing the cap, which realizes not only no power loss, but also more concentrated energy;
5, Low temperature welding+liquid condensation welding assembly process, high thermal conductivity, efficient heat dissipation, service life >10,000 hours;
6, 1 year warranty; (Artificial damage or demolition damage does not include)

Micro laser supports engraving/cutting/drilling materials listed below:
Metal (stainless steel, copper, aluminum, etc.) ceramic tile, wood, bamboo, stone products, acrylic, cloth, leather, PVC, plastic, paper products, horn and other handicrafts.

[Specifications:]
Wavelength:455nm±5nm
Output Power: 20W
Focus position: 22.2mm±0.2
Focus spot size: 60um*80um
Spot shape: rectangular
Laser class: class 4
Input voltage of power board: DC 24V
Modulation input: 5V PWM/5V Analog
TTL trigger mode: Active at high level (DC>2V)
TTL output mode: >1kHz working power = CW output power x 50%
Analog control input voltage: 0~5V
Service life: 20,000H(max output power)/30000H(70% max output)
Laser tube size(mm): 50*66*120
Weight: 0.2kg


Be careful:
1, When using this product, pay attention to wear safety goggles to protect your glasses from irreversible injury caused by direct laser radiation;
2, When it is lit, the energy is very high. Pay attention not to burn your hands or body. Keep a certain distance and avoid it Because the burning will produce smoke, please open the window and use it in a ventilated environment.
3, This product is an optical product, which is sensitive to static electricity and dust. It needs to be isolated from static electricity to ensure that it can be used without dust and has a long service life.


Blue 450nm 20W Engraving laser

Blue 450nm 20W Engraving laser

Blue 450nm 20W Engraving laser

Blue 450nm 20W Engraving laser

Blue 450nm 20W Engraving laser
