Circle Laser Module Red Perfect Circle Laser Beam Adjustable Thickness (with Stray Light)

$76.00

Add to Cart:


Circle Laser Module Red Perfect Circle Laser Beam Adjustable Thickness (with Stray Light)

[Feature]

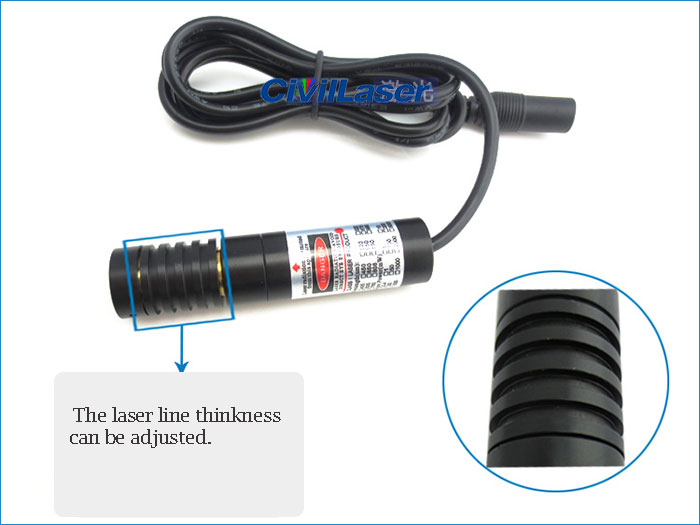

1. Adjustable the laser line thickness.
2. Pattern: Perfect circle with a center dot (The spot effect has cloud-like stray light spots.).

[Specification]
Product Name: Red circle laser module
output wavelength: 650nm
Output power: 100mw (Accept customization)
Working voltage: DC 2.8V~5.2V
Operation Current: ≤150mA
Laser Shape: Circle with a center dot
Spectral line width: Adjustable

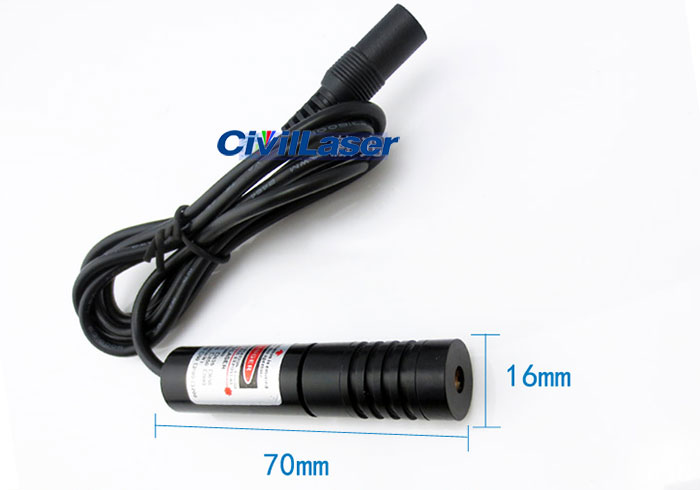

Size: φ 16*70mm (Accept customization)
Working distance: 0~5 meters
Operation mode: Continuous Wave(CW)
Incentive mode: Electropumping Laser
Working medium: Semiconductor Laser

Three lenses are optional:
The angle of the lens 2°, the diameter of the circle is 42mm at 1 meters;
The angle of the lens 3°, the diameter of the circle is 60mm at 1 meters;
The angle of the lens 3.5°, the diameter of the circle is 62mm at 1 meters;

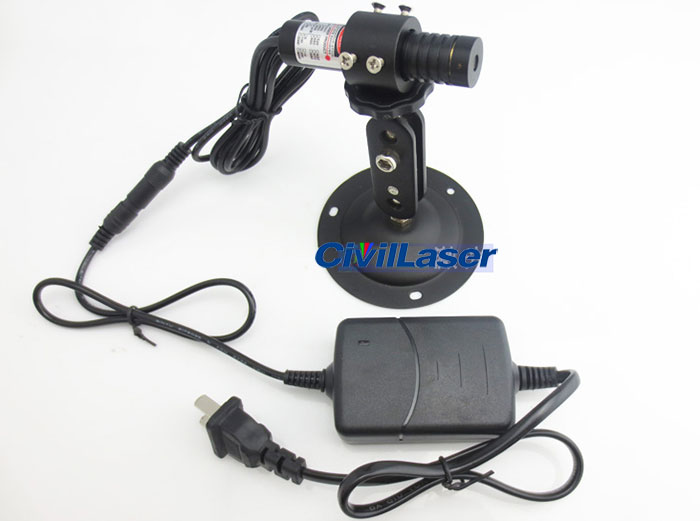

[Package Includes]
1 x Red circle laser module
1 x Power supply
1 x Laser Holder


Note:This product will have multiple circles at high output power, but it can work normally when the power is low. This is a normal phenomenon.



red circle laser module

red circle laser module

red circle laser module

red circle laser module

red circle laser module

red circle laser module
