Circle laser module 520nm 50mw green laser module circle laser beam

Starting at: $256.00

Please Choose:



Add to Cart:


Circle laser module 520nm 50mw green laser module circle laser beam

[FEATURES]
1. It's a circel laser module.
2. Focus adjustable. You can adjust the width of the laser beam(>0.8mm).
3. It's 520nm, not 532nm laser, more Clear, bright  and soft non-glare.

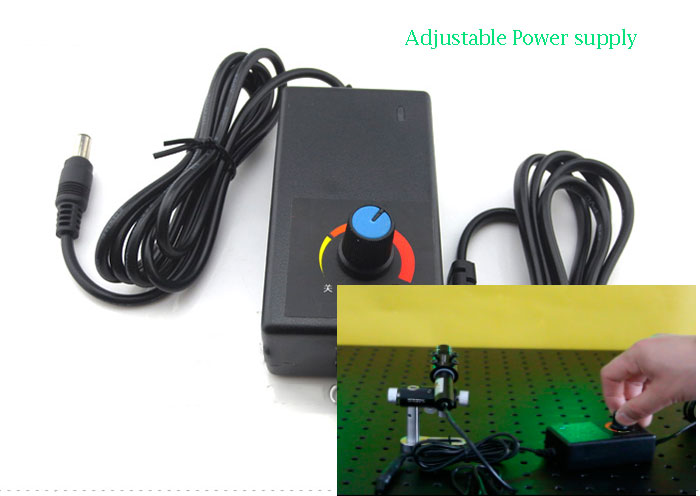

4. With adjustable power supply,You can adjust the brightness of the laser.
5. The diameter of the circle and the distance of the radiation is about 1:1
   Example:
   (1): Irradiation distance is 1 meter,  the diameter of the circle laser is 1 meter.
   (2): Irradiation distance is 5 meters,  the diameter of the circle laser is 5 meters.

[SPECIFICATIONS]
Output wavelength: 520nm
Output power: Max 50mw(Adjustable)
Working voltage: DC 2.8~5.2 V
Operation current: <400mA
Laser Shape: Circle
Spectral line width: >0.8mm (Adjustable)
Size: 16 * 100mm (Accept customization)
Working distance: 0~10 meters
Operation mode: Continuous Wave (CW)
Incentive Mode: Electropumping Laser
Working medium: Semiconductor laser

[PACKAGE INCLUDES]
1 x 520nm circle laser module
1 x Power Supply
