1528~1603nm C+L band 10mW~100mW ASE fiber laser source power adjustable Desktop type

Starting at: $2,099.00  $1,400.00
Save: 33% off

Please Choose:





Add to Cart:


1528~1603nm C+L band 10mW~100mW ASE  fiber laser source power adjustable Desktop type


1528~1603nm ASE Broadband Light Source(C+L band Gain flattening)

The spectral flatness ≤3dB, The spectral width ≥75nm, 10~100mW output power optional


C+L Band gain-flattened optical fiber ASE Broadband light source is based on general broadband source added gain flattening technology,
and optimize the structure of the light source, 3dB output spectrum flatness, and it has a high output power.
Suitable for fiber optic sensing applications.


Characteristic:
High output power
Spectral flatness ≤3dB
Spectral width ≥75nm
Stable spectrum

Application:
Fiber Optic Sensing
Medical Imaging
Optical fiber device testing






[Specifications]

Parameter

Unit

Typical value

Remarks

Working wavelength

nm

1528~1603

C+L band

Output power

mW

10~100

Choose

Output Power Adjustable

-

Adjustment range 10%~100%

Choose 1. Not Include(Fixed output power) 2.Include(Adjustable output power)
*Spectral flatness remains unchanged with optical power adjustment

Spectral flatness

dB

≤3(Type 2.5)



Output end isolation

dB

45



Short term stability(15Minutes)

dB

≤ 0.02



Long-term stability(8Hours)

dB

≤ 0.05



Degree of polarization DOP

dB

≤ 0.2



Pigtail connector

 -

FC/APC



Pigtail fiber type

 -

 SMF-28e single mode fiber



working temperature

°C

-20 ~ +65



Storage temperature

°C

-40 ~ +85



Power supply mode

-

 DC 5V or AC 110V~220V



Desktop type size

mm

260(W)×280(D)×120(H)



Communication interface

-

DB9 Female(RS232)

Optional power adjustment function and PC software

The software control function is not included by default, it can be customized.




ASE source

ASE source

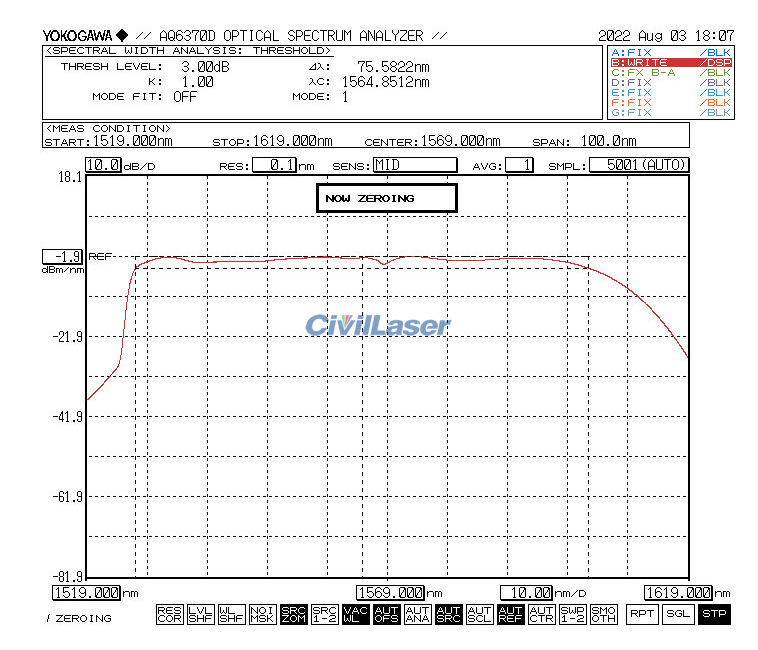

(Below picture: C+L ASE broadband light 50mw Spectrum)
ASE source
