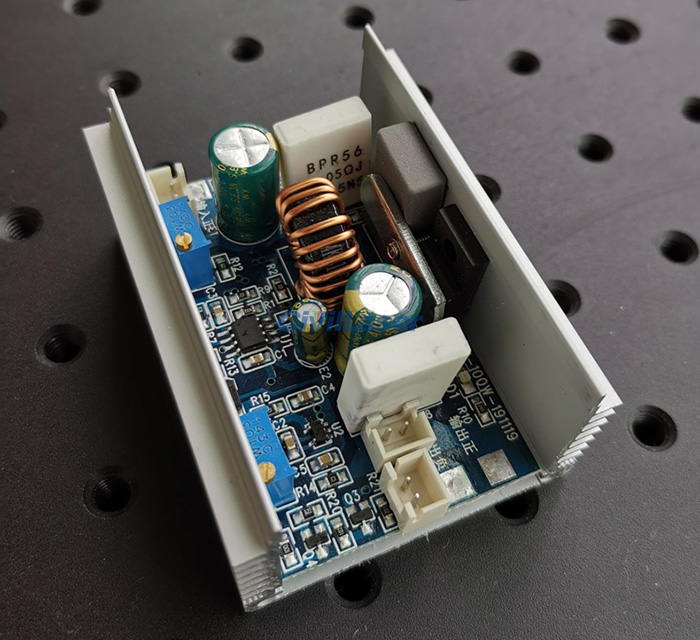

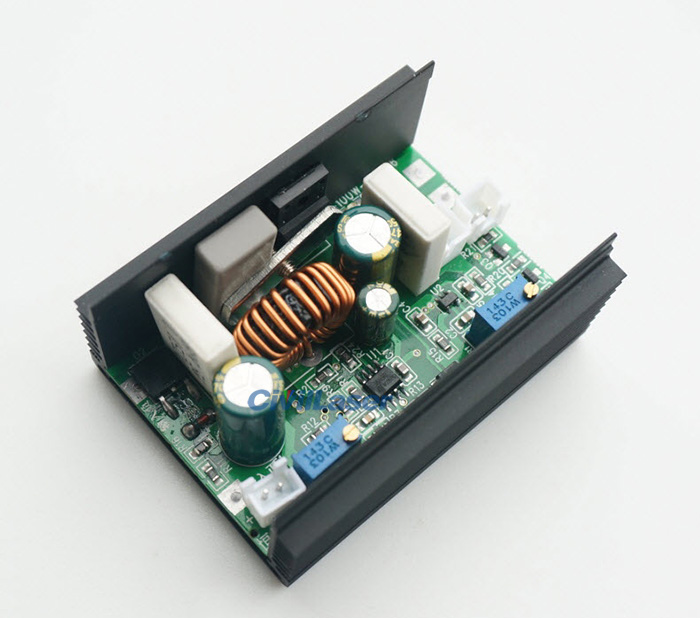

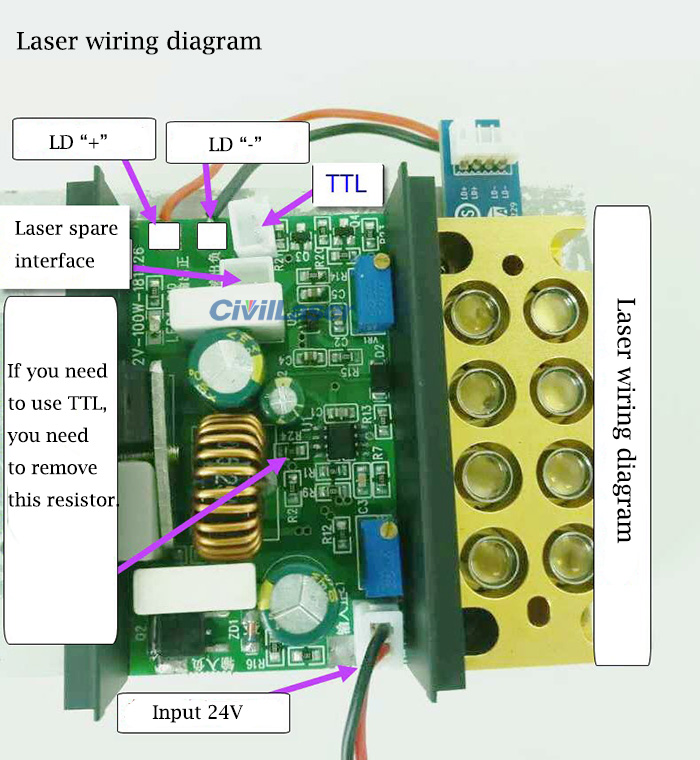

This circuit uses a boost circuit, the input is a 24V universal power supply, which is very suitable for power supply. Compared with the step-down circuit, it is an advantage. The default is to drive the NUBM08 module (8 in a group), the wiring is very simple, the input and output Just two lines each.

If you want to drive 3 NUBM08 diodes, you can change the input voltage to 12V input, and adjust the output voltage to 13.5V 3A;
If you want to drive 4 NUBM08 diodes, you can change the input voltage to 12V input, and adjust the output voltage to 18V 3A.

[Specification]
Product Name: LD Driver
Circuit Control: 24V boost circuit, constant current and constant voltage input
Output Specifications: Max 4A

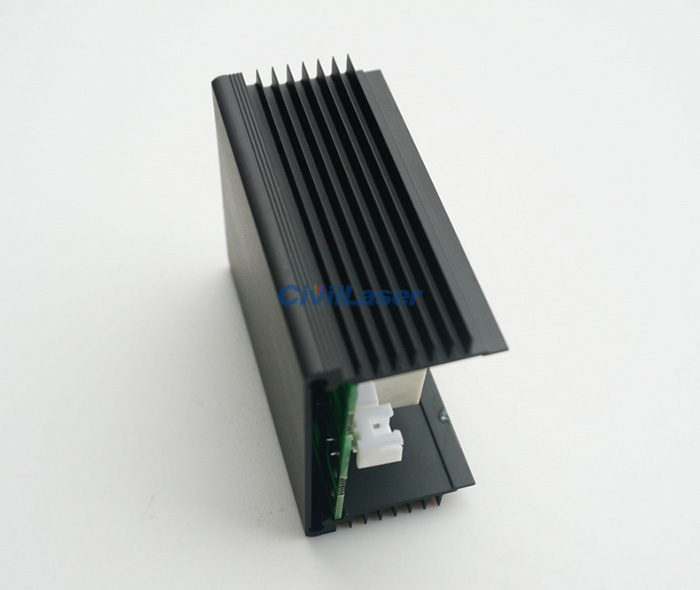

Shell Material: Aluminum (oxidized color)
Scope of Application: drive circuit of 445/450/455/465/520/525nm green and blue laser modules

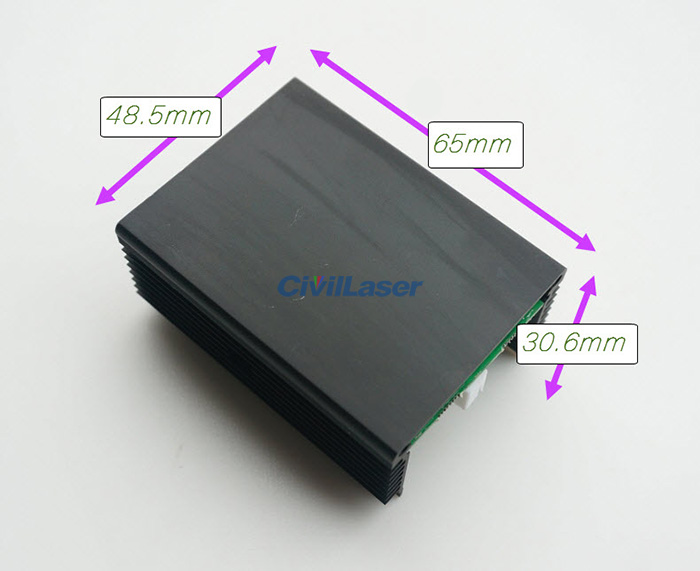

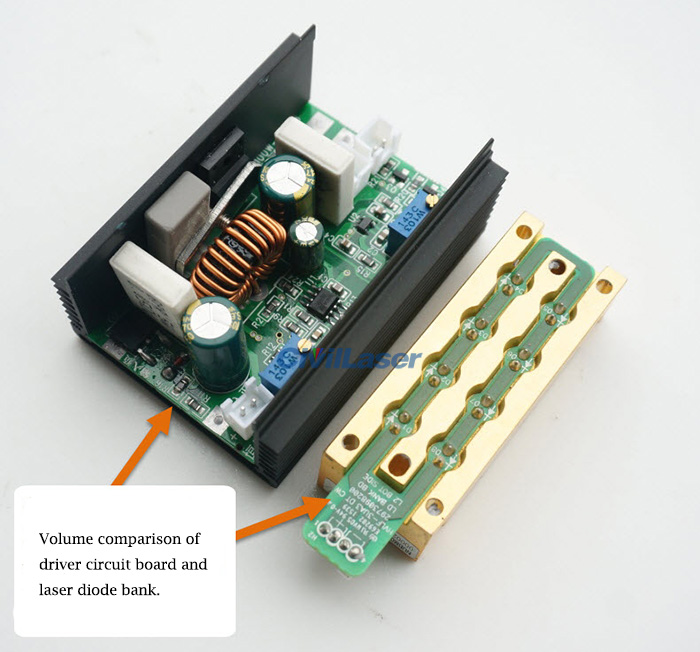

Dimensions: 65*48.5*30.5mm (L*W*H)
Frequency Control: 0-20Khz
Modulation voltage: 0-5V (0V is off, 5V on)

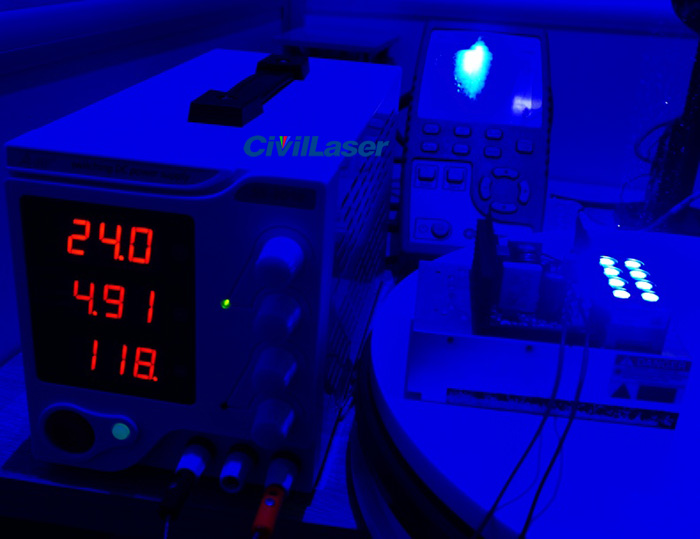

Input voltage: 24V (18-26V)

TTL modulation: 0-5V voltage signal (0V is off, 5V is on, the frequency determines the speed of laser light flashing).
