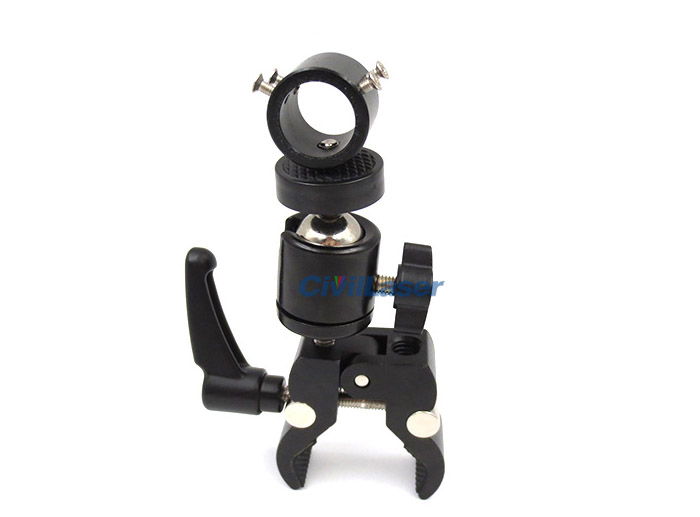

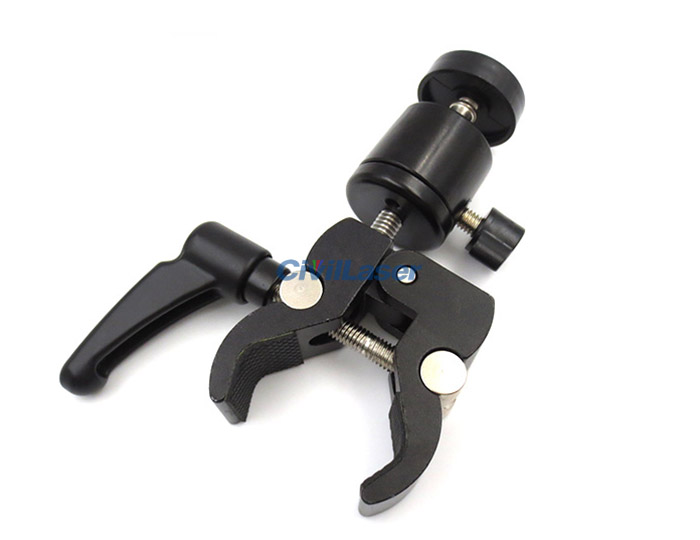

Universal bracket Ball Head Metal Clip 360° Rotating Shelf Laser Module Holder

$12.90

Please Choose:



Add to Cart:
Min:  10

Universal bracket Ball Head Metal Clip 360° Rotating Shelf Laser Module Holder

[Features]
1. The main body is made of all-metal material, and can be installed on the surface of cylindrical, plate-shaped or irregular-shaped objects by leveraging the principle;
2. The jaws have anti-skid rubber and are controlled by screw step, which can stably install the crab clamp on the pipe diameter of 12mm-42mm;
3. Standard threaded holes of inch 1/4 and inch 3/8 are reserved on both sides of the crab claws, which can be used to install cameras or other equipment.

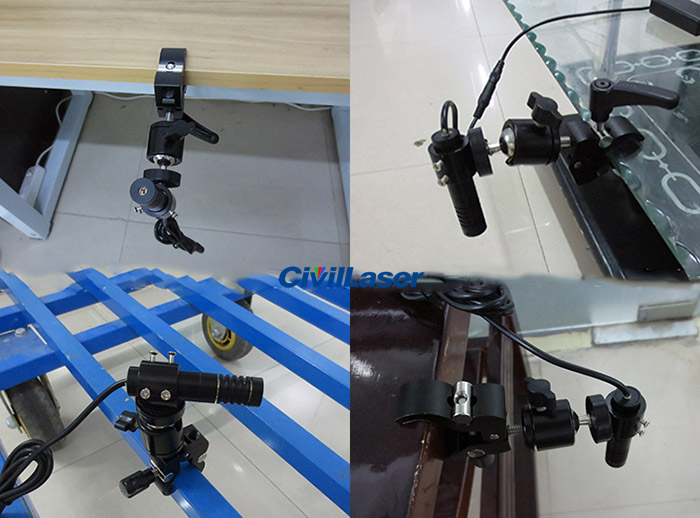

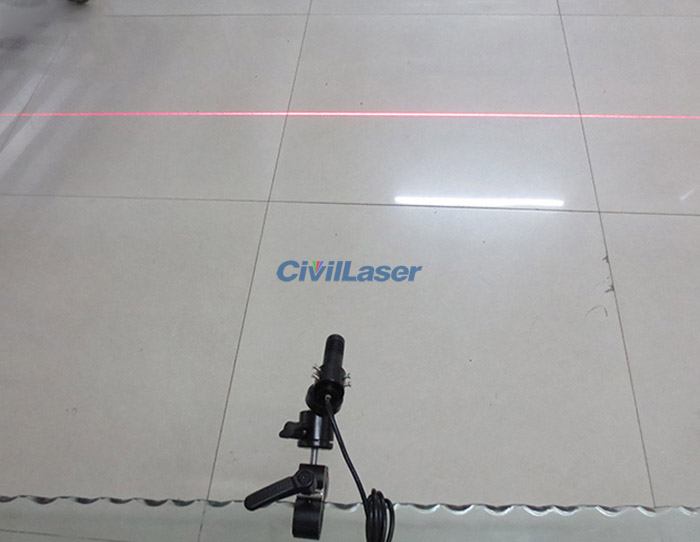

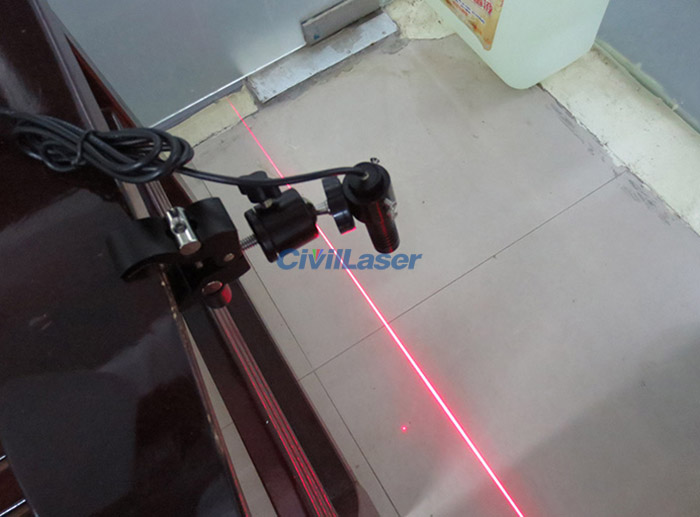

This bracket has good thermal conductivity and flexibility, so that the laser product can be installed in any vertical or horizontal plane, and can be fine-tuned in three-dimensional space to achieve a good use effect.

The main aperture sizes:

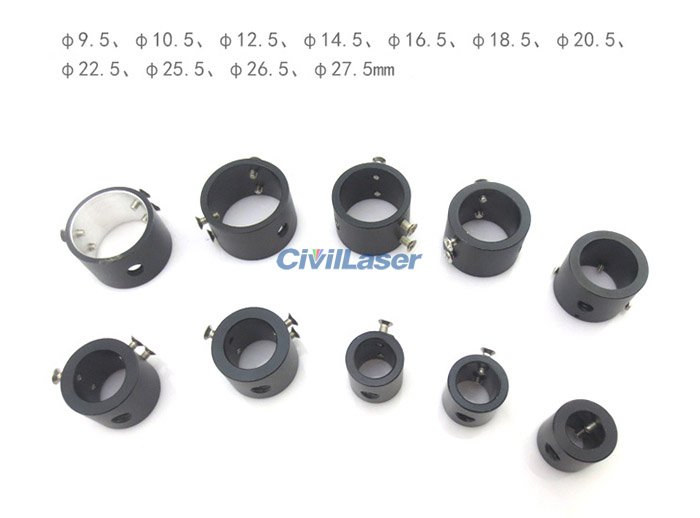

φ9.5, φ10.5, φ12.5, φ14.5, φ16.5, φ18.5, φ20.5, φ22.5, φ25.5, φ26.5, φ27.5mm (Please tell us which size you need before placing an order.)

[Specification]
Product Name: Universal Bracket
Opening Range: 12mm~42mm

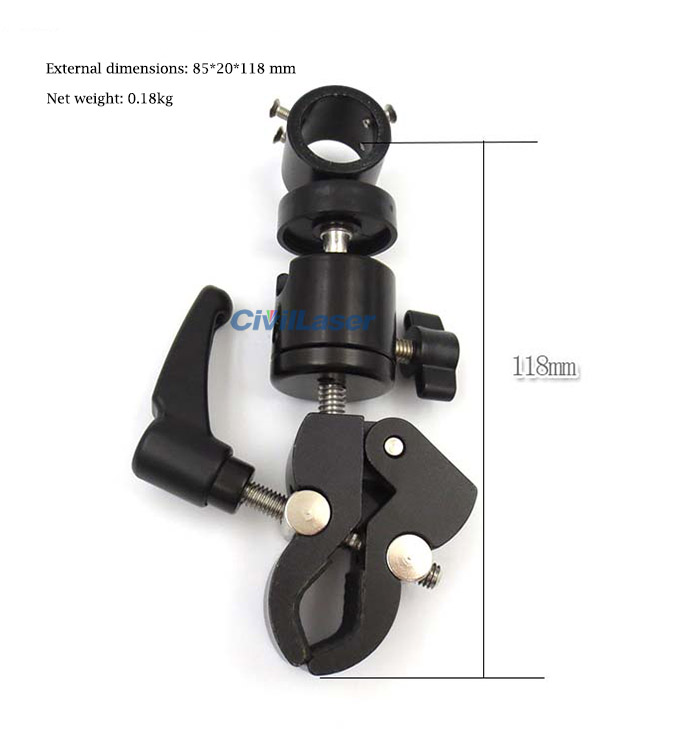

Dimensions: 85*20*118mm (L*W*H)
Material: Aluminum alloy + ABS plastic
Load-bearing Range: 2KG
Net Weight: 0.18KG
